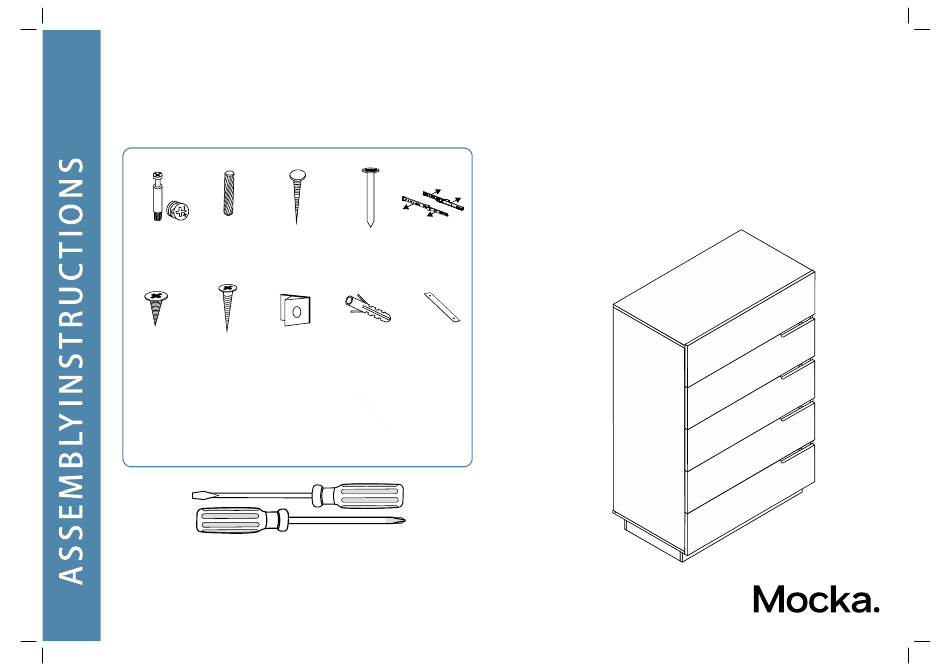

Zack
Tallboy
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
B
C
A
bolt & nut
dowel
screw 25mm
x58
x8
x2
F
G
H
brace
screw 18mm
screw 14mm
x6
x52
x6
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz I mocka.com.au
WARNING:
over in certain circumstances,  i.e.  if  a  child  attempts  to  climb  up  on  the
furniture  or  in  the  event  of  an earthquake. Accordingly, we recommend that
D
E
all furniture is anchored to a wall. We supply a free safety wall anchor with all
furniture  sold  and  we  recommend  these  are  used  to  prevent  your  product
tipping. The fixing device provided should fit most wall types, but please note
E3
E4
that  different  wall  materials  may  require  different  fixing  devices  from  those
E1
supplied.
E2
screw
50
mm
slide rail
x24
x5
I
J
wall plug
safety strap
x2
x2
Any furniture that is not anchored to a wall has the potential to tip

Advertisement

loading
Need help?

Need help?

Do you have a question about the Zack and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mocka Zack

Summary of Contents for Mocka Zack

  • Page 1 Zack Tallboy Thank you for your purchase. Please follow the instructions for correct assembly. While we took great effort to ensure these assembly instructions were correct at WARNING:  Any furniture that is not anchored to a wall has the potential to tip  the time of printing, sometimes updates are required post production. For the most up to date versions please refer to the product page on our website.
  • Page 2 Zack Tallboy Insert 4 × nuts (A) into panel [6]. Attach slide rails (E1) and (E3) to panels [3] and [4] with 30 × screws (F). Attach panel [6] to panels [3] and [4] with 4 × bolts (A). mocka.co.nz I mocka.com.au ...
  • Page 3 Zack Tallboy Insert 10 × nuts (A) into panels [7] and [8]. Attach panel [2] to panels [3] and [4] with 4 × screws (B) and 4 × screws (D). Attach panel [7] to panel [8] with 4 × bolts (A).
  • Page 4 Zack Tallboy Attach to panels [7] and [8] to panel [2] with 6 × bolts (A). Insert 4 × nuts (A) to panels [3] and [4]. Slide panel [5] into the position as shown. mocka.co.nz I mocka.com.au ...
  • Page 5 Zack Tallboy Insert 6 × braces (H) into panel [5] with 6 × screws (G). Attach panel [1] to panels [3] and [4] with 4 × bolts (A) and 4 × dowels (B). mocka.co.nz I mocka.com.au ...
  • Page 6 Zack Tallboy Slide panel [14] into the position as shown. Insert 4 × nuts (A) into panel [15]. Insert 4 × nuts (A) into panels [11] and [12]. Attach panel [15] to panel [13] with 2 × bolts (A). Attach panels [11] and [12] to panel [13] with 4 × screws (D).
  • Page 7 Zack Tallboy Attach panel [10] to panels [11] and [12] with 6 × bolts (A). Attach panel [9] to panels [11] and [12] with 6 × bolts (A). mocka.co.nz I mocka.com.au ...
  • Page 8 Zack Tallboy Insert the drawers to the cabinet as shown. Attach slide rails (E2) and (E4) to panels [11] and [12] with 4 × screws (F). mocka.co.nz I mocka.com.au ...
  • Page 9 Zack Tallboy You`re done, enjoy! Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the 2 × safety straps (J) and 2 × screws (F) . Fasten to the wall using 2 ×...
