Parker Buffet

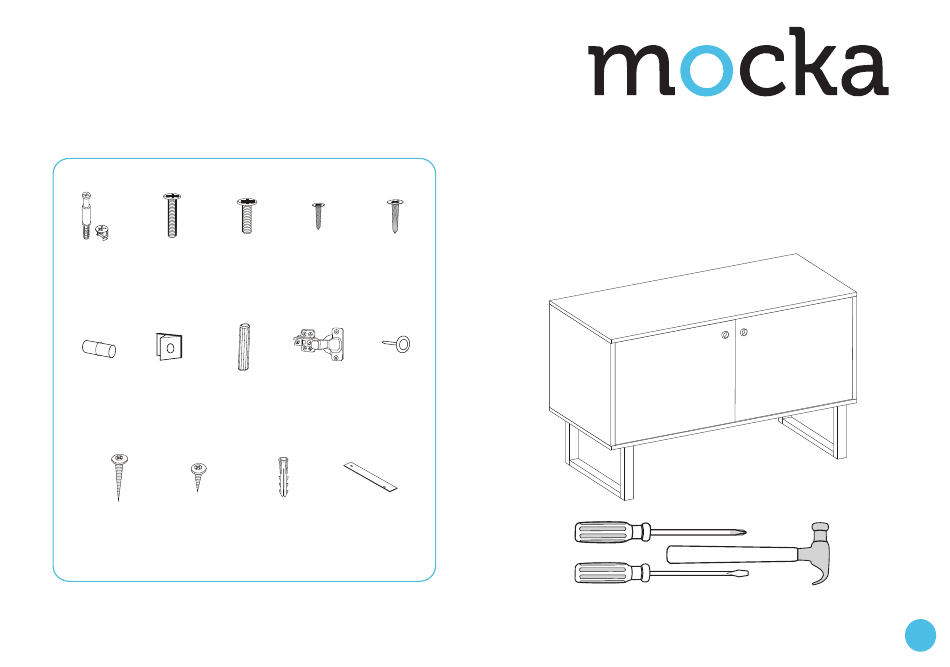

Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B1
bolt &
50mm
nut x16
screw x8
E
D
shelf
wedge
plug x8
x10
I
J
14mm
25mm
screw x2
screw x2
Hardware Supplied
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz | mocka.com.au
C2
B2
C1
30mm
14mm
18mm
screw x10
screw x12
screw x24
H
G
F
hinge
nail
dowel
x4
x16
x4
K
L
wall
wall
strap x2
anchor x2
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an
earthquake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a
free safety wall anchor with all furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those supplied.
Phillips & Flathead screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Parker Buffet
Summary of Contents for Mocka Parker Buffet
- Page 1 Parker Buffet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Parker Buffet Assembly Instructions Attach the leg panels together as shown using 8x 50mm screws (B!). Attach panel [2] to the leg panels using 12x 30mm screws (B2). Tighten Tighten with a screwdriver. with a screwdriver. Insert 6x bolts (A) into panel [2].
- Page 3 Parker Buffet Assembly Instructions Attach panels [3] and [5] to panel [6] using 4x dowels (F) and 4x nut Attach panels [3], [5] and [4] as shown using 6x dowels (F) and 6x and bolt sets (A). Tighten with a screwdriver.
- Page 4 Parker Buffet Assembly Instructions Insert 6x bolts (A) into panel [1]. Slide panel [7] down along the grooves between panels [3] and [4] to form the back of the unit. mocka.co.nz | mocka.com.au...
- Page 5 Parker Buffet Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panel [1] to panels [3], [5] and [4] using 6x dowels (F) and 6x Insert 8x shelf plugs (D) into panels [5] at the desired shelf heights. locking nuts (A). Tighten with a screwdriver.
- Page 6 Parker Buffet Assembly Instructions NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door hinge until they are sitting ush. Attach door panel [8] to panel [3] using 1x hinge (H) and secure with 6x Insert the shelf panels [10], resting them on top of the shelf plugs (D).
- Page 7 Parker Buffet Assembly Instructions Safety Straps Move the unit into the desired location up against a wall. Attach 2x Secure panel [7] against the internal panels [5] and [6] as shown using 4x nails (H). Attach 10x wedges to panel [8] using 10x 18mm screws (C).
