Chelsea Cabinet
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
C
A
B
small
long
bolt
locking
dowel x2
dowel x22
x14
nut x14
G
H
I
nut
long
plastic
bolt
x4
screw x9
x4
glide x4

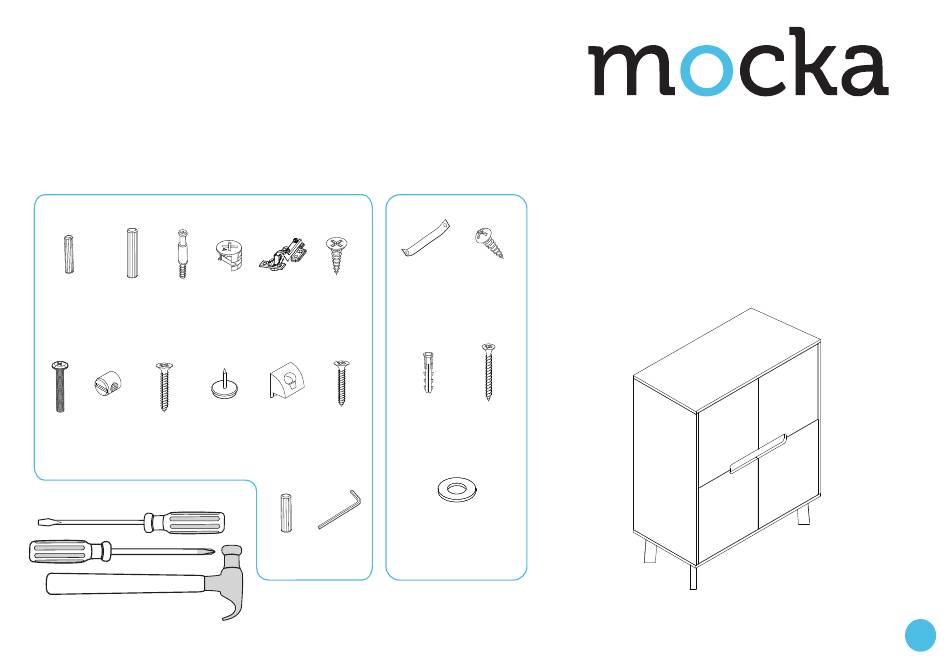

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
mocka.co.nz | mocka.com.au
D
E
F
hinge
small
x8
screw x32
J
K
L
wedge
screw
anchor x1
x4
x4
M
N
dowel
allen
x4
key x1
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
WARNING:
V
W
over in certain circumstances, i.e. if a child attempts to climb up on the furniture
or in the event of an earthquake. Accordingly, we recommend that all furniture
is anchored to a wall. We supply a free safety wall anchor with all furniture sold
and we recommend these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please note that different wall
screw
materials may require different fixing devices from those supplied.
safety
x1
strap x1
X
Y
screw
wall
x1
Z
washer
x2
Wall Strap
Any furniture that is not anchored to a wall has the potential to tip
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Chelsea Cabinet
Summary of Contents for Mocka Chelsea Cabinet
- Page 1 Chelsea Cabinet Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
- Page 2 Chelsea Cabinet Assembly Instructions Attach panel [4] to panel [5] using 2x bolts (C) and secure with 2x Attach panel [6] to panel [4] using 2x long dowels (B) and 2x long screws locking nuts (D). Tighten with a screwdriver.
- Page 3 Chelsea Cabinet Assembly Instructions Attach panel [7] to panel [4] and secure with 2x locking nuts (D). Insert 4x dowels (A) and 2x bolts (C) into panel [2]. Insert 4x dowels (A) Tighten with a screwdriver. and 2x bolts (C) into panel [3].
- Page 4 Chelsea Cabinet Assembly Instructions Attach panels [2] and [3] to panel [4] using 4x locking nuts (D). Tighten Insert 6x bolts (C) into panel [1]. with a screwdriver. mocka.co.nz | mocka.com.au...
- Page 5 Chelsea Cabinet Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Attach panel [1] to panels [2] and [3] using 6x small dowels (A) and Connect panels [9] together using the connector [10] as shown. secure with 6x locking nuts (D). Tighten with a screwdriver.
- Page 6 Chelsea Cabinet Assembly Instructions × Slide panels [9] down between the grooves of panels [2] and [3] to form Attach two leg panels [11] to the underside of panel [8] as shown, using the back of the unit. 2x dowels (M) and 2x bolts (G). Tighten with the allen key (N). Secure with 2x nuts (H) and tighten them with a flathead screwdriver.
- Page 7 Chelsea Cabinet Assembly Instructions Attach the remaining two leg panels [11] to panel [8] using 2x dowels (M) and 2x Attach panel [8] to panels [2] and [3] using 6x small dowels (A) and bolts (G), tightening with the allen key (N). Secure with 2x nuts (H). Attach 4x secure with 6x screws (I).
- Page 8 Chelsea Cabinet Assembly Instructions Doors x4 NOTE: If the doors are uneven or there is a gap in the middle, loosen or tighten the screw on the door hinge until they are sitting flush. Attach 2x hinges (E) to panel [13] as shown and secure with 4x small Attach door panels [13] and [14] to the main unit as shown, using 2x screws (F).
- Page 9 Chelsea Cabinet Assembly Instructions Wall Strap strap strap wall plug screw Attach 4x wedges (K) to the corners of the panel [9] and secure with 4x Once assembled lift furniture into place, do not drag. Use a drill to screws (L). Attach 1x safety strap (V) to the back edge of panel [1] using create a small hole lining up with the top of the safety strap (V).
