Zara Four Drawer
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
D
screw
bolt
dowel
locking
x18
x6
x34
nut x34
J
K
L
M
wedge
screw
felt
bracket
x8
x4
x8
pad
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
G
F
screw
slide
slide
x52
rail x4
rail x4
N
O
P
cover
seal
bracket
x4
x4
x4

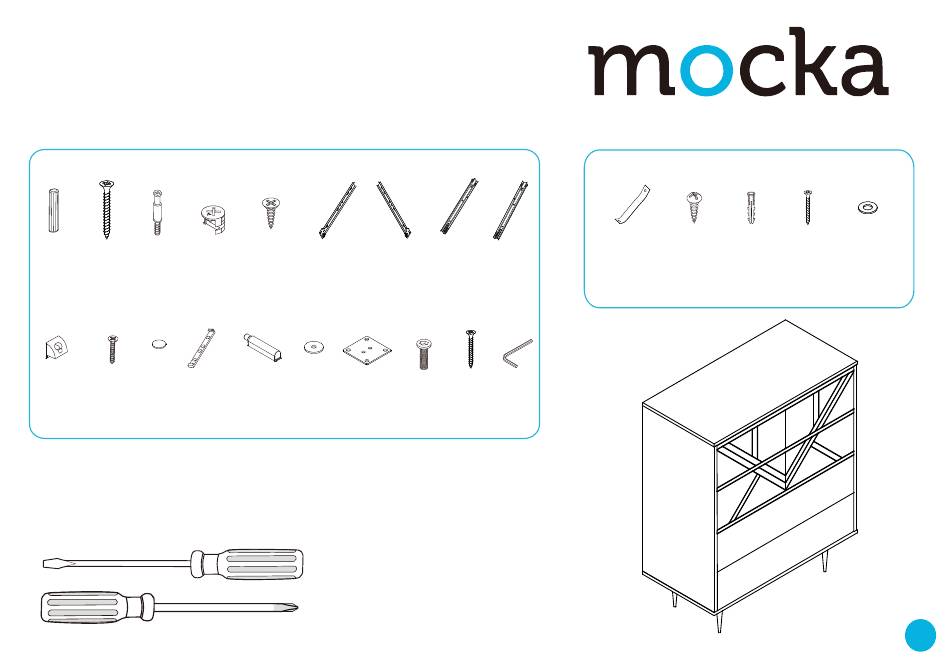

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
slide
slide
rail x4
rail x4
Q
R
S
bolt
screw
Allen
x16
x28
key
x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Zara Four Drawer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mocka Zara Four Drawer

  • Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Attach 4x slide rail (F) and 4x slide rail (G) to panels [3] and [4] as shown and secure with 24x screws (E). Tighten with a screwdriver. Insert 10x bolts (C) into panels [3] and [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Attach panels [5], [6] and [7] to panel [3] with 5x dowels (A) and secure a screwdriver. Place 3x cover (N) over the bracket (M) as shown. with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Slide panel [8] down along the grooves between the panels [4] and [3] to secure with 5x locking nuts (D). Tighten with a screwdriver. form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 [3] to form the back of the unit as shown. and secure with 4x locking nuts (D). Tighten with a screwdriver. Attach panel [6] to panel [1] and secure with 2x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach panel [2] to the unit with 4x dowels (A) and secure with 4x Tighten with a screwdriver. Place 1x cover (N) over the bracket (M) screws (B). Tighten with a screwdriver. as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 [9]/[10]/[11] and secure with 1x screw (E). Tighten with a screwdriver. as shown. Tighten with an Allen key (S). Attach 4x felt pads (L) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 Attach panels [12], [13] and [14] to panels [9]/[10]/[11] and secure Slide panel [15] along the grooves between the side panels [12] and [13]. with 5x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 Attach slide rail (I) and slide rail (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 4x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 10 Attach 1x safety straps (V) to the top of the back side of the unit as catches on the seal (O). shown using 1x washers (Z) and 1x screws (W). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 11 (V). Fasten to the wall using 1x washers (Z), 1x wall anchor (X) and 1x screws (Y). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
