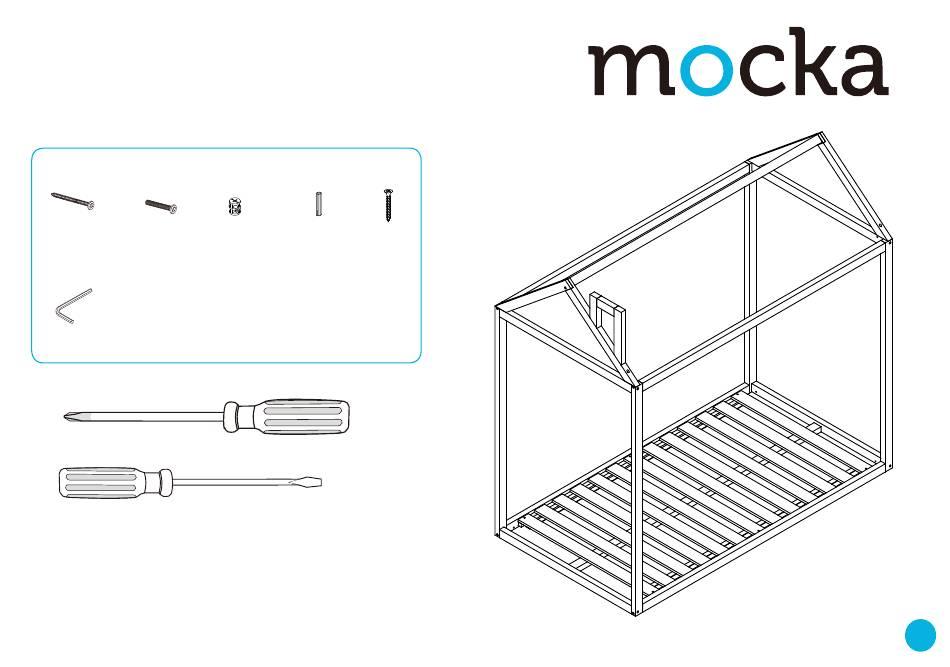

House Bed - Single
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
B
A
long screw
bolt
locking nut
x8
x16
F
allen key
x1
Hardware Supplied
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au
C
D
E
dowel
screw
x24
x6
x16
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka House Bed Single
Summary of Contents for Mocka House Bed Single
- Page 1 Please follow the instructions below for correct assembly. dowel screw long screw bolt locking nut allen key Hardware Supplied Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au...
- Page 2 Attach panels [3] to panel [12] using 2x dowels (D). panel [4] and [1] to panels [2] using 4x long screws (A). Tighten with a allen key (F) and a screwdriver.Repeat for the other side of the bed. mocka.co.nz | mocka.com.au...
- Page 3 Insert 2x dowels (D) into panel [10].Attach panels [6], [7], [8], [9] and [10] using shown. Attach panels [5] and [3] to panels [4] and [1] using 8x bolts (B). 4x bolts (B). Tighten with a allen key (F). Tighten with a allen key (F) and a screwdriver. mocka.co.nz | mocka.com.au...
- Page 4 Attach panels [11] to panel [4] and [1] using 6x screw (E). Tighten with a using 4x bolts (B). Tighten with a allen key (F). screwdriver. Lift the furniture into the desired location, do not drag.You’re done,enjoy! mocka.co.nz | mocka.com.au...
