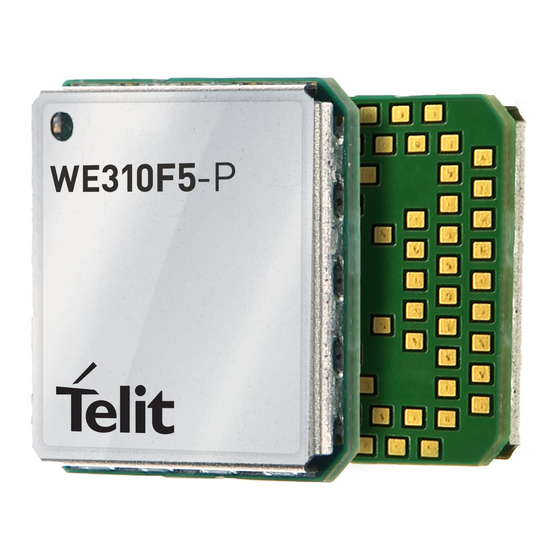

WE310F5-I/P Evaluation Board
Quick Start Guide
1VV0301671 Rev. 9 – 2022 -04 -18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WE310F5-I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telit Wireless Solutions WE310F5-I

Summary of Contents for Telit Wireless Solutions WE310F5-I

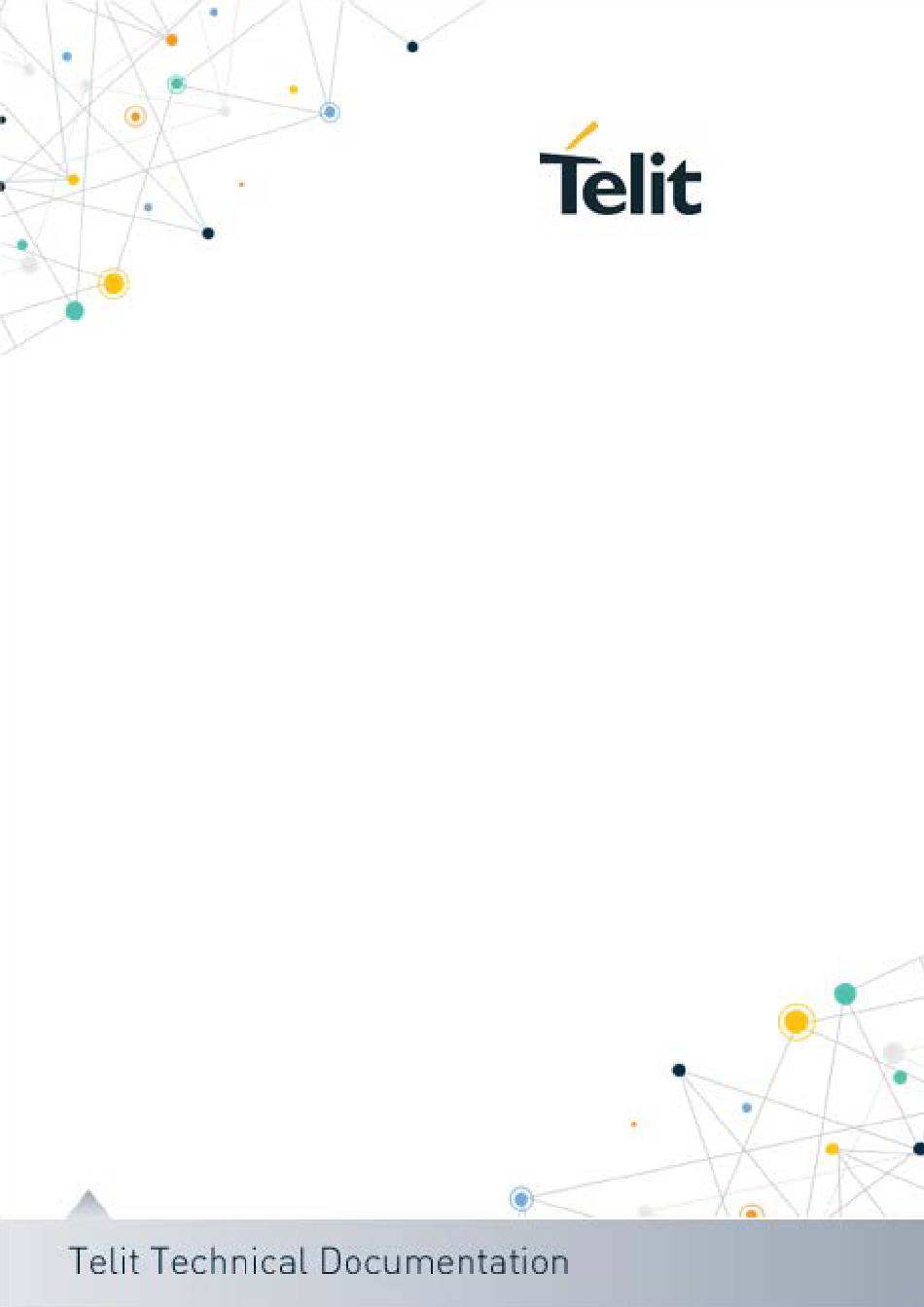

  • Page 1 WE310F5-I/P Evaluation Board Quick Start Guide 1VV0301671 Rev. 9 – 2022 -04 -18...

  • Page 2: Applicability Table

    WE310F5-I/P Evaluation Board Quick Start Guide APPLICABILITY TABLE PRODUCTS WE310F5-I WE310F5-P 1VV0301671 Rev. 9 Page 2 of 19 2022-04-18 Not Subject to NDA...

  • Page 3: Table Of Contents

    WE310F5-I/P Evaluation Board Quick Start Guide CONTENTS APPLICABILITY TABLE CONTENTS INTRODUCTION Scope Audience Contact Information, Support Symbol Convention Related Documents INITIATING THE MODULE 2.1. Program the Module 2.2. Configure the Module MODES 3.1. Wireless Station Mode 3.2. Wireless AP Mode 3.3.

  • Page 4: Introduction

    This document describes electrical specifications, mechanical information, interfaces application, and manufacturing information about the Telit WE310F5-I/P Wi-Fi/BLE module. With the help of this document and other application notes or user guides, users can understand the Telit WE310F5-I/P Wi-Fi/BLE module well and develop various products quickly. Audience This document is intended for Telit customers, especially system integrators, about to implement their applications using the Telit module.

  • Page 5: Related Documents

    Electrostatic Discharge: Notifies the user to take proper grounding precautions before handling the product. All dates are in ISO 8601 format, that is. YYYY-MM-DD. Related Documents • WE310F5-I/P AT Command Reference Guide, 80664ST11034A WE310F5 I/P WE310F5-IP Module Hardware User Guide, 1VV0301662 •...

  • Page 6: Initiating The Module

    WE310F5-I/P Evaluation Board Quick Start Guide 2. INITIATING THE MODULE Program the Module 1. Connect the micro-USB UART1 port to your system. 2. Change the toggle switch position to Program. 3. Download and unzip the Telit_Wifi_Image_Tool. For download information, see Resource Links.

  • Page 7: Modes

    WE310F5-I/P Evaluation Board Quick Start Guide 3. MODES Wireless Station Mode 1. To set the module in Station Mode: AT+WNI=0 2. To connect the network to L3: AT+WNCN=1,"Telit_WiFi",“Password123",11 Wireless AP Mode 1. To set the module in AP Mode: AT+WNI=1 2.

  • Page 8: We310F5 Module

    WE310F5-I/P Evaluation Board Quick Start Guide AT+BATTRIB="charval","perm=0011","len=1","val=0x30" AT+BATTRIB="complete" AT+BOAD AT+BI=1 AT+BCONINTMAX=1000 AT+BCONINTMIN=1000 AT+BCONNECT="00217E36822","t2","gatt" Note: When the module behaves as a peripheral, the AT+BCONNECT and AT+BSCAN must be initiated from the Central module (Primary WE310F5 module). Note: When a Mobile device (External Application) is designated as a Central module, it scans and connects automatically to the peripheral WE310F5 module.

  • Page 10: We310F5 Module Description

    WE310F5-I/P Evaluation Board Quick Start Guide WE310F5 Module Description Figure 2: WE310F5-P Components W-P WE310F5-P Antenna Connector ARDUINO Enable (PL705) UART (PL608) UART1 I2S-I2C (PL601) GPIO- LED (PL606) GPIO – Alternate Function (PL302 – PL305) UART0 General Purpose Button (PB1-PB2)
  • Page 11 WE310F5-I/P Evaluation Board Quick Start Guide Figure 3: WE310F5-I Components WE310F5-I Antenna ARDUINO Enable (PL705) UART (PL608) UART1 I2S-I2C (PL601) GPIO- LED (PL606) GPIO – Alternate Function (PL302 – PL305) UART0 General Purpose Button (PB1-PB2) Power Switch- EVB Reset Button Power connector USB 2.0...

  • Page 12: Resource Links

    WE310F5-I/P Evaluation Board Quick Start Guide 5. RESOURCE LINKS • Telit Wi-Fi Image Tool and new FW releases (Login Required), visit https://www.telit.com/support-tools/download-zone/ • For more information, visit https://www.telit.com/modules-overview/wifi-and-bluetooth/ • For technical support, email us at TS-SRD@telit.com • For a video demonstration, see https://www.telit.com/devices/WE310F5/...

  • Page 13: Product And Safety Information

    WE310F5-I/P Evaluation Board Quick Start Guide 6. PRODUCT AND SAFETY INFORMATION Copyrights and Other Notices SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Although reasonable efforts have been made to ensure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document or the use of the information contained herein.

  • Page 14: Usage And Disclosure Restrictions

    WE310F5-I/P Evaluation Board Quick Start Guide reproduced in any manner without the express written permission of the copyright owner, being Telit, or the Third-Party software supplier. Furthermore, the purchase of Telit products shall not be deemed to grant either directly or by implication, estoppel, or in any...

  • Page 15: Waiver Of Liability

    WE310F5-I/P Evaluation Board Quick Start Guide In addition to Third-Party Terms, the disclaimer of warranty and limitation of liability provisions in this License shall apply to the Third-Party Rights software as well. TELIT HEREBY DISCLAIMS ANY AND ALL WARRANTIES EXPRESSED OR IMPLIED FROM...
  • Page 16 WE310F5-I/P Evaluation Board Quick Start Guide Do not disassemble the product; any mark of tampering will compromise the warranty validity. We recommend following the instructions of the hardware user guides for the correct wiring of the product. The product must be supplied with a stabilized voltage source and the wiring must be conformed to the security and fire prevention regulations.

  • Page 17: Glossary

    WE310F5-I/P Evaluation Board Quick Start Guide 7. GLOSSARY Acronym Definition Bluetooth low energy General Purpose Input Output GPIO Secure Digital Input Output SDIO Serial Peripheral Interface Universal Asynchronous Receiver Transmitter UART Universal Serial Bus 1VV0301671 Rev. 9 Page 17 of 19...

  • Page 18: Related Documents

    WE310F5-I/P Evaluation Board Quick Start Guide 8. RELATED DOCUMENTS Revision Date Changes 2022-04-18 Included 3D view of the WE310F5 module. 2022-03-31 Template update. 2021-07-16 Image and Code update 2021-07-05 Code section update From Mod.0817 rev.4 1VV0301671 Rev. 9 Page 18 of 19...
