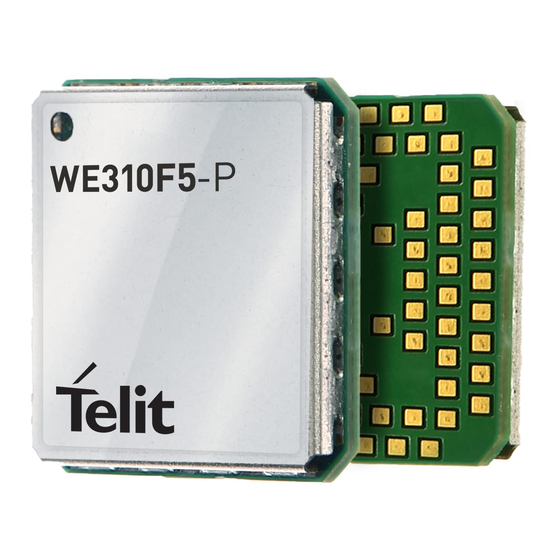

Telit Wireless Solutions WE310F5-I Quick Setup Manual

WE310F5-I/P
Quick Setup Guide
1VV0301671 Rev. 7 – 2021 -07 -16
Telit Technical Documentation
Program the WE310F5 Module
1. Connect the micro-USB UART1 port to your system.
2. Change the toggle switch position to Program.
3. Download and unzip the Telit_Wifi_Image_Tool.
For download information, see
4. Open the Telit_Wifi_Image_Tool folder.
5. Open the Telit_Wifi_Image_Tool application.
6. Click Browse.
7. Navigate to the Telit_Wifi_Image_Tool and select s2w.bin file.
8. To initiate the flash, click Program.
9. After the flash process is complete, click OK.
10. Close the Telit_Wifi_Image_Tool.
The WE310F5 EVB is ready to configure.
Configure the WE310F5 Module
1. Connect the micro-USB cable to the UART0 port.
2. Change the toggle switch position to Run.
3. Open Tera Term > Setup > Serial Port.
4. Set the BAUD rate.
The WE310F5 EVB is ready to use.
Prerequisites:
• Ensure to connect the module and the node to the same WPA2
Secured Wi-Fi network.
• Insert the SIM card in the appropriate SIM card slot.
Wireless Mode- Station Mode
1. To set the module in Station Mode: AT+WNI=0.
2. To connect the network to L3:
AT+WNCN=1,"Telit_WiFi","Password123",11
3.
Wireless Mode- AP Mode
1. To set the module in AP Mode: AT+WNI=1.
2. To configure the IP:
AT+WNIPC=0,1,192.168.5.1,255.255.255.0,192.168.5.1
3. To configure the node in AP Mode:
AT+WNAPIPC=0,192.168.5.3,192.168.5.20,86400000
Bluetooth Mode- Station Mode
1. To scan the available Bluetooth devices: AT+BI=1.
2. For DUT peripheral connection:
Device 1
AT&W0
AT+YSR
AT+BI=1
AT+BICAP=0
AT+BADVINTMIN=60
AT+BADVINTMAX=60
AT+BADVE=1
AT+BATTRIB="pserv","uuid=1234"
AT+BATTRIB="char","prop=0x0c","uuid=5678"
AT+BATTRIB="charval","perm=0011","len=1","val=0x30"
AT+BATTRIB="complete"
AT+BOAD
AT+BI=1
AT+BCONINTMAX=1000
AT+BCONINTMIN=1000
AT+BCONNECT="00217E368'22","t2"
