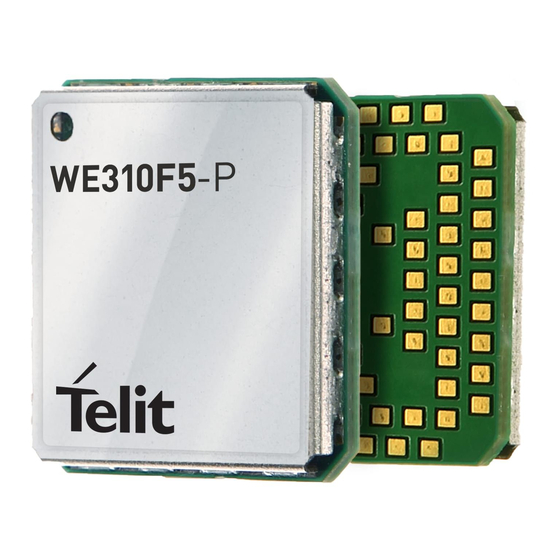

WE310F5-I/P EVB
Hardware User Guide
1VV0301676 Rev. 4 – 2021-07-05
Telit Technical Documentation
1VV0301698 2021-01 Rev.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WE310F5-I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telit Wireless Solutions WE310F5-I

Summary of Contents for Telit Wireless Solutions WE310F5-I

  • Page 1 WE310F5-I/P EVB Hardware User Guide 1VV0301676 Rev. 4 – 2021-07-05 Telit Technical Documentation 1VV0301698 2021-01 Rev.0...

  • Page 2: Applicability Table

    WE310F5-I/P EVB Hardware User Guide(CS2106) APPLICABILITY TABLE PART NUMBER WE310F5-I WE310F5-P 1VV0301676 Rev. 4 Page 2 of 27 2021-07-05...

  • Page 3: Table Of Contents

    WE310F5-I/P Development Kit Evaluation Board Description Top Side Item Description Bottom Side Item Description WE310F5-I/P BASIC OPERATIONS General Information on Power Supply Program and Run the WE310F5-I/P Module SCHEMATICS PRODUCT AND SAFETY INFORMATION Copyrights and Other Notices 6.1.1. Copyrights 6.1.2.
  • Page 4 WE310F5-I/P EVB Hardware User Guide(CS2106) 6.2.6. Waiwer of Liability Safety Recommendations GLOSSARY DOCUMENT HISTORY 1VV0301676 Rev. 4 Page 4 of 27 2021-07-05...

  • Page 5: Introduction

    1. INTRODUCTION Scope The aim of this document is the handling description of the EVB (Evaluation Board) Interface for the product WE310F5-I/P Wi-Fi/BLE module. Audience This document is intended for Telit customers, especially system integrators, about to implement their applications using the Telit module.

  • Page 6: Related Documents

    WE310F5-I/P EVB Hardware User Guide(CS2106) Note/Tip: Provides advice and suggestions that may be useful when integrating the module. Electro-static Discharge: Notifies the user to take proper grounding precautions before handling the product. All dates are in ISO 8601 format, that is. YYYY-MM-DD.

  • Page 7: General Product Description

    IoT software and hardware. The system was designed to provide a complete development environment to the user and intended to be used with Telit WE310F5-I/P module and Arduino Uno Rev3 board. Note/Tip: The combination of the EVB and the Arduino Uno Rev3 shall be done according to the configuration described in this manual.

  • Page 8: We310F5-I/P Interface Description

    WE310F5-I/P EVB Hardware User Guide(CS2106) 3. WE310F5-I/P INTERFACE DESCRIPTION WE310F5-I/P Development Kit There are two types of EVB, namely: WE310F5-I and WE310F5-P. In WE310F5-P, the SMA antenna connector is mounted. Following is the WE310F5-I/P EVB and its kitting parts: Figure 1: WE310F5-I EVB.

  • Page 9: Evaluation Board Description

    WE310F5-I/P EVB Hardware User Guide(CS2106) Table 3: WE310F5-I/P Kitting Parts Description Quantity EVB Board WIFI/BLE Antenna Micro USB cable Evaluation Board Description Since the structure of the two types of EVB is the same, will explain each block based on the WE310F5-P version.
  • Page 10 WE310F5-I/P EVB Hardware User Guide(CS2106) Figure 4: Bottom Side View. 1VV0301676 Rev. 4 Page 10 of 27 2021-07-05...

  • Page 11: Top Side Item Description

    WE310F5-I/P EVB Hardware User Guide(CS2106) Top Side Item Description 1)Antenna connector Connect here the Wireless LAN Dual Band Antenna T-AT9552 to use the Wi-Fi/BLE capabilities of the WE310F5-P 2)WE310F5-P module This is the Telit WE310F5-P Wi-Fi/BLE module. 3)GPIO alternative function PL302-PL305 In the following figure jumper PL302-305 allows to use GPIO as alternative function by means of the proper jumper configuration.
  • Page 12 WE310F5-I/P EVB Hardware User Guide(CS2106) Figure 6: Module ON/OFF/RESET and PB1-PB2 (PL605) PB1 is connected only to PL605-1 to be externally wired to any desired GPIO pin on any other connector’s header. PB3 is connected only to PL605-3 to be externally wired to any desired GPIO pin on any other connector’s header.
  • Page 13 WE310F5-I/P EVB Hardware User Guide(CS2106) 13), 14), 15) USB 2.0 and UART The WE310F5-I/P interface has one USB port and two UART ports as shown in the figure below Error! Reference source not found. Two UART: one 2-wires UART1 and one 4-wires high speed UART0 port. Both ports have an independent FTDI chipset to translate the UART to USB.
  • Page 14 WE310F5-I/P EVB Hardware User Guide(CS2106) Slide switch located on the right side of the above figure Error! Reference source not f ound., allows to supply or cut the EVB main power. • ON: Allow to supply the power to EVB.
  • Page 15 • Connect SWD_CLK to JTAG_TCK. • Connect 3V3 and GND to respective pins. 11), 22) LEDs and GPIOs (PL606) The WE310F5-I/P EVB has three different LED’s on the left part shown in the figure below: each LED indicates a specific status: LED Red indicates 3V3 voltage ON.
  • Page 16 WE310F5-I/P EVB Hardware User Guide(CS2106) WE310F5 I/O (3.3V) to Arduino I/O (5V) Figure 13: Level Translator Enable for Arduino. PL601: I2S, I2C connector. Following is the pin assignment: Figure 14: I2S, I2C Header PL604 – SPI, SDIO connector. Following is the pin assignment: Figure 15: SPI, SDIO Header.
  • Page 17 The board can be supplied by means of a standard lithium battery 3.6V plugged into the SMD connector. Figure 18: Battery Connection The REALTEK audio codec is mounted on WE310F5-I/P EVB. And analog audio in/out can be transferred through 3.5mm audio jack in the figure below: Figure 19: WE310F5-I/P EVB used as Arduino Uno.

  • Page 18: Bottom Side Item Description

    23) Arduino Uno Rev 3 Connector The connectors on the bottom are intended to plug Arduino Uno Rev 3 to create a Kit suitable for IoT development. The WE310F5-I/P EVB can be used as Arduino Shield. 1VV0301676 Rev. 4 Page 18 of 27...

  • Page 19: We310F5-I/P Basic Operations

    The power sources 1-3 activate a DC/DC and an LDO that create the 3V3 and 1V8 necessary to the board operation. Program and Run the WE310F5-I/P Module To Program and Run the module, please refer to WE310F5-I/P Evaluation Board Quick Start Guide for more details. 1VV0301676 Rev. 4...

  • Page 20: Schematics

    WE310F5-I/P EVB Hardware User Guide(CS2106) 5. SCHEMATICS In the following pages you will find the schematics that can be used as reference design for your applications, please refer to following index: ANNEX1: MCU (Deleted) ANNEX2: Power Supply ANNEX3: WE310F5 ANNEX4: USB-UART...

  • Page 21: Product And Safety Information

    WE310F5-I/P EVB Hardware User Guide(CS2106) 6. PRODUCT AND SAFETY INFORMATION Copyrights and Other Notices SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Although reasonable efforts have been made to ensure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from the use of the information contained herein.

  • Page 22: Usage And Disclosure Restrictions

    WE310F5-I/P EVB Hardware User Guide(CS2106) copyrighted products. Accordingly, any copyrighted computer programs contained in Telit’s products described in this instruction manual shall not be copied (reverse engineered) or reproduced in any manner without the express written permission of the copyright owner, being Telit or the 3rd Party software supplier. Furthermore, the...

  • Page 23: Third Party Rights

    WE310F5-I/P EVB Hardware User Guide(CS2106) 6.2.5. Third Party Rights The software may include 3rd Party’s software Rights. In this case the user agrees to comply with all terms and conditions imposed in respect of such separate software rights. In addition to 3rd Party Terms, the disclaimer of warranty and limitation of liability provisions in this License, shall apply to the 3rd Party Rights software as well.
  • Page 24 WE310F5-I/P EVB Hardware User Guide(CS2106) Safety Recommendations Make sure the use of this product is allowed in your country and in the environment required. The use of this product may be dangerous and has to be avoided in areas where: •...
  • Page 25 WE310F5-I/P EVB Hardware User Guide(CS2106) 7. GLOSSARY Table 4: Acronym List Acronym Definition TTSC Telit Technical Support Centre Universal Serial Bus High Speed Data Terminal Equipment UMTS Universal Mobile Telecommunication System WCDMA Wideband Code Division Multiple Access HSDPA High Speed Downlink Packet Access...
  • Page 26 WE310F5-I/P EVB Hardware User Guide(CS2106) 8. DOCUMENT HISTORY Table 5: Document History Revision Date Changes 2021-07-05 Migration to new document template 2020-12-21 Pin correction 2020-09-01 Branching for the document: CS2106 for Marketing, CS2106A for Engineering. 2020-08-10 Update information about WE310F5-I EVB...
  • Page 27 Telit Technical Documentation 1VV0301698 2021-01 Rev.0...
