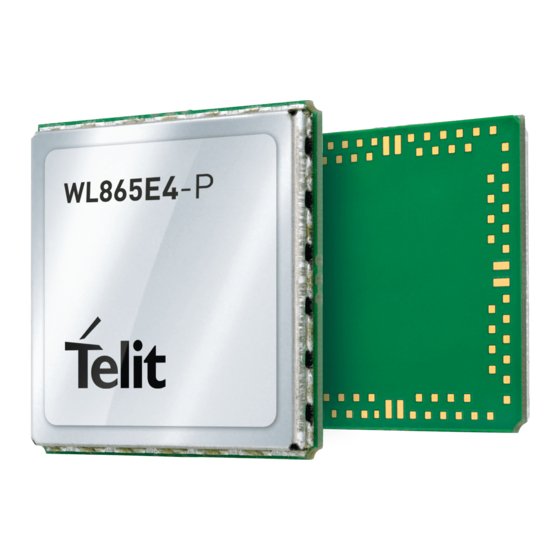

WL865E4-P EVB
USER GUIDE
1VV0301594 Rev. 0 – 2019-04-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL865E4-P and is the answer not in the manual?

Questions and answers

Related Manuals for Telit Wireless Solutions WL865E4-P

Summary of Contents for Telit Wireless Solutions WL865E4-P

  • Page 1 WL865E4-P EVB USER GUIDE 1VV0301594 Rev. 0 – 2019-04-02...

  • Page 2: Notice

    WL865E4-P EVB User Guide SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE NOTICE While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.

  • Page 3: Usage And Disclosure Restrictions

    WL865E4-P EVB User Guide USAGE AND DISCLOSURE RESTRICTIONS License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

  • Page 4: Applicability Table

    WL865E4-P EVB User Guide APPLICABILITY TABLE PRODUCTS WL865E4-P 1VV0301594 Rev.0 Page 4 of 27 2019-04-02...

  • Page 5: Table Of Contents

    Top Side Item Description ............11 Bottom Side Item Description ............17 WL865E4-P BASIC OPERATIONS ..........19 General Information on Power Supply ........19 Program the WL865E4-P module ..........19 Run the WL865E4-P Module ............20 EVB PRELIMINARY VERSION ..........23 SCHEMATICS ................26 1VV0301594 Rev.0...

  • Page 6: Introduction

    1. INTRODUCTION Scope The aim of this document is the handling description of the EVB (EValuation Board) Interface for the product WL865E4-P WIFI/BLE module. Audience This document is intended for Telit customers, especially system integrators, about to implement their applications using Telit module.

  • Page 7: Text Conventions

    Tip or Information – Provides advice and suggestions that may be useful when integrating the module. All dates are in ISO 8601 format, i.e. YYYY-MM-DD. Related Documents • Telit WL865E4-P User Guide 1VV0301580 • WL865E4-P AT Command Reference Guide 1VV0301594 Rev.0 Page 7 of 27...

  • Page 8: Overview

    IoT software and hardware. The system was designed to provide a complete development environment to the user and intended to be used with Telit WL865E4-P module and Arduino Uno Rev3 board. NOTE: The combination of the EVB and the Arduino Uno Rev3 shall be done according to the configuration described in this manual.

  • Page 9: Wl865E4-P Interface Description

    WL865E4-P EVB User Guide 3. WL865E4-P INTERFACE DESCRIPTION WL865E4-P Development Kit In Figure 3-1 the WL865E4-P EVB is shown, while in Table 3-1 the WL865E4-P kitting parts are listed. Figure 3-1: WL865E4-P EVB Description Quantity EVB Board WIFI/BLE Antenna Micro USB cable Table 3-1: WL865E4-P kitting parts 1VV0301594 Rev.0...

  • Page 10: Evaluation Board Description

    WL865E4-P EVB User Guide Evaluation Board description In Figure 3-2 and Figure 3-3 the Top and Bottom side view of the EVB are shown. The items indicated are described in Section 3.3 and 3.4 respectively for the top and the bottom side.

  • Page 11: Top Side Item Description

    The Jumper PL602 (Figure 3-4) allows to manage the sensor’s interrupts manually by means of the proper jumper configuration. Figure 3-4: PL602 with sensor interrupts 5) Sensors The WL865E4-P interface is equipped with different kind of sensors as shown in Figure 3-5. Figure 3-5: EVB Sensors 1VV0301594 Rev.0 Page 11 of 27...
  • Page 12 WL865E4-P EVB User Guide The sensors are controlled by I2C either from the WIFI/BLE Module using AppZone or with Arduino. The sensors are: • 3D Accelerometer and Gyroscope, LSM6DS3TR, Slave Write Address = 0xD4 • Humidity and Temperature, HDC2010, Slave Write Address = 0x80 •...
  • Page 13 PB1 is connected only to PL606-1 to be externally wired to any desired GPIO pin on any other connector’s header. PB2 is connected to PL606-2 and goes directly to the WL865E4-P RESET#, an active low HW Reset pin, press and release it to unconditionally reset the module.
  • Page 14 VDD_IO, no matter its value. 3V3 is to be considered the default. The WL865E4-P can have different VIO voltage value with respect to core. This is selected on Jumper headers PL302 and PL301. If no jumpers are plugged into these headers the only ON position of the switch is not enough to correctly powering the module.
  • Page 15 The PL301 can be used also as an insertion point to measure current consumption of the module or for external power supply use. The WL865E4-P EVB has three different LED’s on the left part shown in Figure 3-11, each LED indicates a specific status: LED Red ON–...
  • Page 16 WL865E4-P EVB User Guide Figure 3-13: UART header As shown in Figure 3-14, the PL601 has been routed to fit the FTDI TTL-232 cable. Figure 3-14: FTDI TTL-232 cable. Do NOT use it when Arduino is Plugged PL604 - SDIO connector. Please, see Figure 3-15 for pin assignment.

  • Page 17: Bottom Side Item Description

    23) Arduino Uno Rev 3 Connector The other connectors on the bottom are intended to plug Arduino Uno Rev 3 to create a Kit suitable for IoT development. The WL865E4-P EVB can be used as Arduino Shield as shown in Figure 3-18.
  • Page 18 WL865E4-P EVB User Guide Figure 3-18 : WL865E4-P EVB used as Arduino Uno Shield 1VV0301594 Rev.0 Page 18 of 27 2019-04-02...

  • Page 19: Wl865E4-P Basic Operations

    2) By means of a 2xAA 1V5 batteries on the bottom side by using the battery holder provided with the packaging, or by means of a standard lithium 3.6V battery plugged into the SMD battery connector on the bottom side (the WL865E4-P does not embed a battery charger),...

  • Page 20: Run The Wl865E4-P Module

    Run the WL865E4-P Module The WL865E4-P EVB can be put in APPLICATION mode by closing pins 4 and 6 (BOOT OFF) and pins 3 and 5 (DEBUG OFF) of the PL603 header (item 8 in Figure 3-2) or by leaving them unplugged.
  • Page 21 Figure 4-3: Station Mode configuration in Telit command style • Limited AP Mode: Following commands (Figure 4-4) are used to configure the WL865E4-P node in limited AP mode, where node's IP is set as 192.168.45.3 and SSID is set as GS_LAP: AT+WNI=1 AT+WNIPC= 0,1,192.168.45.3,255.255.255.0,192.168.45.1...
  • Page 22 Figure 4-5: Station Mode in Legacy Gainspan Command Style • Limited AP Mode: Following commands (Figure 4-6) are used to configure the WL865E4-P node in limited AP mode, where node’s IP is set as 192.168.45.3 and SSID is set as GS_LAP...

  • Page 23: Evb Preliminary Version

    WL865E4-P EVB User Guide 5. EVB PRELIMINARY VERSION A preliminary version of the WL865E4-P EVB was realized, in this section the differences with respect to the described here version will be detailed. (a) WL865E4-P EVB (b) Preliminary WL865E4-P EVB Figure 5-1: Top side comparison between the WL865E4-P EVB and its preliminary version.
  • Page 24 3V3 the MEMS power supply to the USB pad of sensors • the WL865E4-P and to the RF Connect 1-2 on PL203 to part of the module. send the 3V3 power supply to the USB pad of the 1V8 configuration: WL865E4-P.
  • Page 25 SMD connector An SMD battery connector has been introduced to allow the EVB to be powered even with a standard Lithium battery Table 5-1: Differences between the WL865E4-P EVB and its preliminary version 1VV0301594 Rev.0 Page 25 of 27 2019-04-02...

  • Page 26: Schematics

    WL865E4-P EVB User Guide 6. SCHEMATICS In the following pages you will find the schematics that can be used as reference design for your applications, please refer to following index: ANNEX1: Block Diagram ANNEX2: WL865E4-P ANNEX3: Power Supply ANNEX4: Arduino Uno-Rev3 Connectors...
