WE310F5-I/P EVB Hardware User Guide SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE NOTICE While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.
WE310F5-I/P EVB Hardware User Guide USAGE AND DISCLOSURE RESTRICTIONS License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.
Top Side Item Description ............11 Bottom Side Item Description ............17 WE310F5-I/P BASIC OPERATIONS ........... 18 General Information on Power Supply.......... 18 Program and Run the WE310F5-I/P Module ........ 18 DOCUMENT HISTORY ..............19 1VV0301663 Rev.1 Page 5 of 20...
1. INTRODUCTION Scope The aim of this document is the handling description of the EVB (Evaluation Board) Interface for the product WE310F5-I/P Wi-Fi/BLE module. Audience This document is intended for Telit customers, especially system integrators, about to implement their applications using Telit module.
WE310F5-I/P EVB Hardware User Guide Text Conventions Danger – This information MUST be followed or catastrophic equipment failure or bodily injury may occur. Caution or Warning – Alerts the user to important points about integrating the module, if these points are not followed, the module and end user equipment may fail or malfunction.
IoT software and hardware. The system was designed to provide a complete development environment to the user and intended to be used with Telit WE310F5-I/P module and Arduino Uno Rev3 board. NOTE: The combination of the EVB and the Arduino Uno Rev3 shall be done according to the configuration described in this manual.
WE310F5-I/P Development Kit There are two types of EVB. Each of the two EVB is equipped with WE310F5-I and WE310F5-P. Additionally, in case of WE310F5-P, the SMA antenna connector is mounted. Following is the WE310F5-I/P EVB and its kitting parts: Figure 1: WE310F5-I EVB 1VV0301663 Rev.1...
WE310F5-I/P EVB Hardware User Guide Figure 2: WE310F5-P EVB Description Quantity EVB Board WIFI/BLE Antenna Micro USB cable Table 1: WE310F5-I/P Kitting Parts Evaluation Board Description Since the structure of the two types of EVB is the same, will explain each block based on the WE310F5-P version.
WE310F5-I/P EVB Hardware User Guide The top and bottom side view of the EVB are shown below: Figure 3: Top Side View Figure 4: Bottom Side View Top Side Item Description 1) Antenna connector: 1VV0301663 Rev.1 Page 11 of 20...
Page 12

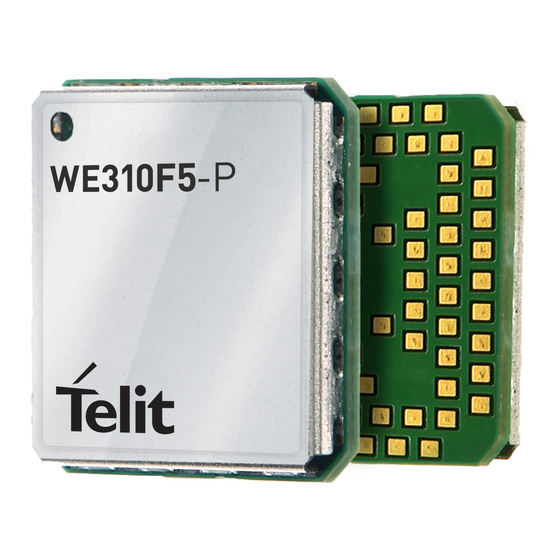

WE310F5-I/P EVB Hardware User Guide Connect here the Wireless LAN Dual Band Antenna T-AT9552 to use the Wi-Fi/BLE capabilities of the WE310F5-P 2) WE310F5-P module: This is the Telit WE310F5-P Wi-Fi/BLE module. 3) GPIO alternative function PL302-PL305 In the following figure jumper PL302-305 allows to use GPIO as alternative function by means of the proper jumper configuration.
Page 13
PROGRAM: Allow to update firmware through UART0. 13), 14), 15) USB 2.0 and UART The WE310F5-I/P interface has one USB port and two UART ports as shown in the figure below:Figure 8: Two UART: one 2-wires UART0 and one 4-wires high speed UART1 port. Both ports have an independent FTDI chipset to translate the UART to USB.
Page 14
WE310F5-I/P EVB Hardware User Guide Figure 9: Power Configuration jumpers (PL202-PL204) Basically, the jumper PL202, PL203, PL204, are used to separate each power lines from the rest of the EVB to allow current consumption tests. 3V3 Power: • Place jumper on PL203 1-2 and PL204 1-2, allows to supply the 3.3V to Wi-Fi module Place jumper on PL203 1-2 and PL202 1-2, allows to supply the 3.3V to another device...
Page 15
Connect 3V3 and GND to respective pins. • 11), 22) LEDs and GPIOs (PL606) The WE310F5-I/P EVB has three different LED’s on the left part shown in the figure below: each LED indicates a specific status: LED Red indicates 3V3 voltage ON.
Page 16
WE310F5-I/P EVB Hardware User Guide 7), 8), 20), 21) Other Connectors Other connectors that can be used to wire or monitoring other signals that could be needed for development purposes are: PL705: Level translator enable connector for Arduino. Place jumper on PL705 1-2, allows to enable the level translator for Arduino.
The board can be supplied by means of a standard lithium battery 3.6V plugged into the SMD connector. Figure 18: Battery Connector The REALTEK audio codec is mounted on WE310F5-I/P EVB. And analog audio in/out can be transferred through 3.5mm audio jack in the figure below: Figure 19: WE310F5-I/P EVB used as Arduino Uno...
2) By means of a standard lithium 3.6V battery plugged into the SMD battery connector on the bottom side (the WE310F5-I/P does not embed a battery charger), 3) By plugging Arduino on the bottom side, if you supply Arduino Uno-Rev3 board with its own supply source (Arduino Shield) The WE310F5-I/P is not able to supply the Arduino board.
WE310F5-I/P EVB Hardware User Guide DOCUMENT HISTORY Revision Date Changes 2020-05-28 First issue 2020-08-10 Update information about WE310F5-I EVB 1VV0301663 Rev.1 Page 19 of 20 2020-08-10...
