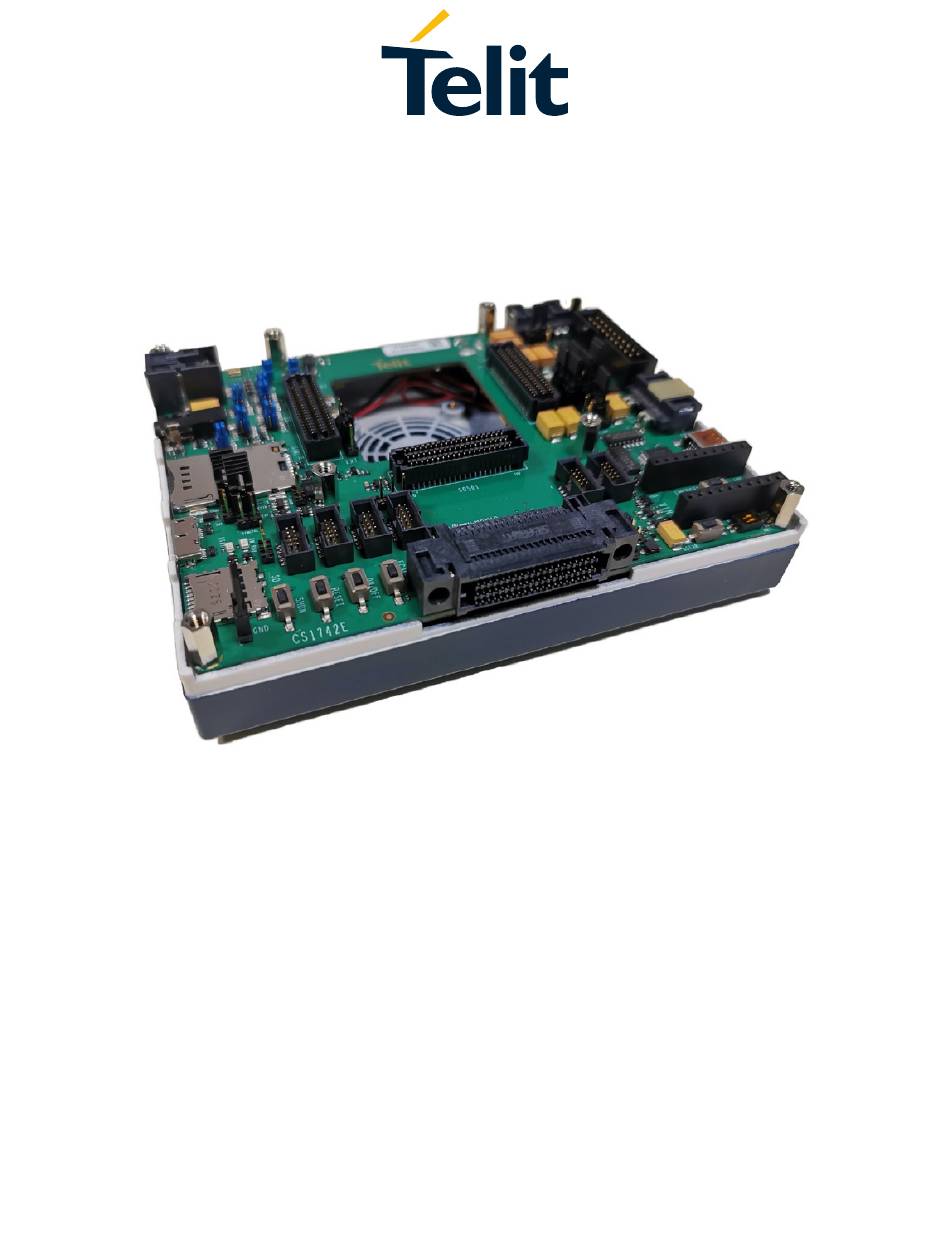

EVB IoT Device Development Kit
This Quick Start Guide will walk you through the easy steps required to setup the evaluation board for
your wireless application.
The EVB is a tool designed for engineers, programmers and developers allowing to connect and use
all the Telit Modules Interfaces.
Before starting, please connect your chosen Telit module interface to the EVB.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Telit Wireless Solutions EVB
Summary of Contents for Telit Wireless Solutions EVB
- Page 1 This Quick Start Guide will walk you through the easy steps required to setup the evaluation board for your wireless application. The EVB is a tool designed for engineers, programmers and developers allowing to connect and use all the Telit Modules Interfaces.

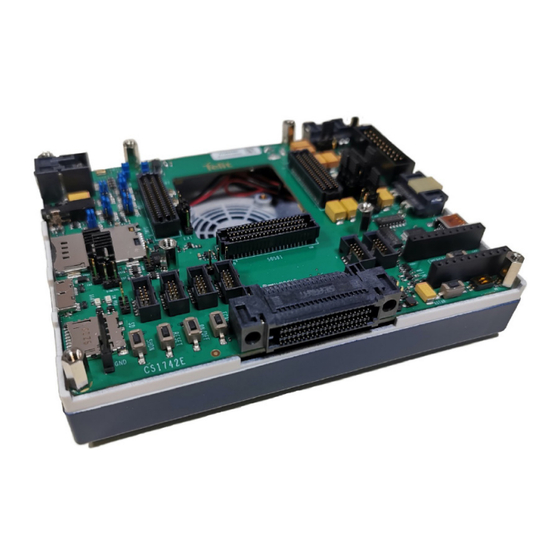

- Page 2 • Cellular Antenna The picture below shows a typical evaluation board (EVB) platform consisting of an EVB main board and a TLB (Translation Board). In the setup depicted below, a Telit LE920 module is mounted: EVB IoT Device Development Kit - Quick Start Guide...
- Page 3 Plug the module on your EVB Please contact your Telit representative for the list of available extension module that can be used with the EVB. Plug the module on the evaluation board, making sure that the EVB and adapter connectors are properly mated...
- Page 4 ON/OFF button must be pressed for at least 5 seconds and then released. The table below contains typical intervals for which the button must be pressed for some Telit modules. EVB IoT Device Development Kit - Quick Start Guide...
- Page 5 COM port number, just right click on one of the two Telit USB Modem entries, select Properties, then Modem tab. The picture shows the Telit USB Modem properties. In this example Windows 10 system binds USB #17 with COM9 port. EVB IoT Device Development Kit - Quick Start Guide...
- Page 6 • Telit_EVB_USB_Drivers Tools • Telit_AT_Controller_r3.4.11_XFP_4.0.5 • Telit_TMB_Setup_2.7.1 • Telit_Connection_Manager_Setup_1.5.0 Install TATC Unzip the folder and run Setup_TATC_3.4.11_XFP_4.0.5.msi file. Upon successful software installation, you will see the following icons on your desktop: EVB IoT Device Development Kit - Quick Start Guide...
- Page 7 Double-click on the Telit AT Controller icon to open the application and then click on Settings button and select Port Settings tab to setup the AT port parameters such as in the picture below: click OK button. Upon successful configuration, click Connect button. EVB IoT Device Development Kit - Quick Start Guide...
- Page 8 You are now ready to send AT commands in the TATC input box and then click Execute button. Issue the following commands to verify firmware version and options AT#SWPKGV • AT#SWOPTIONS • EVB IoT Device Development Kit - Quick Start Guide...
