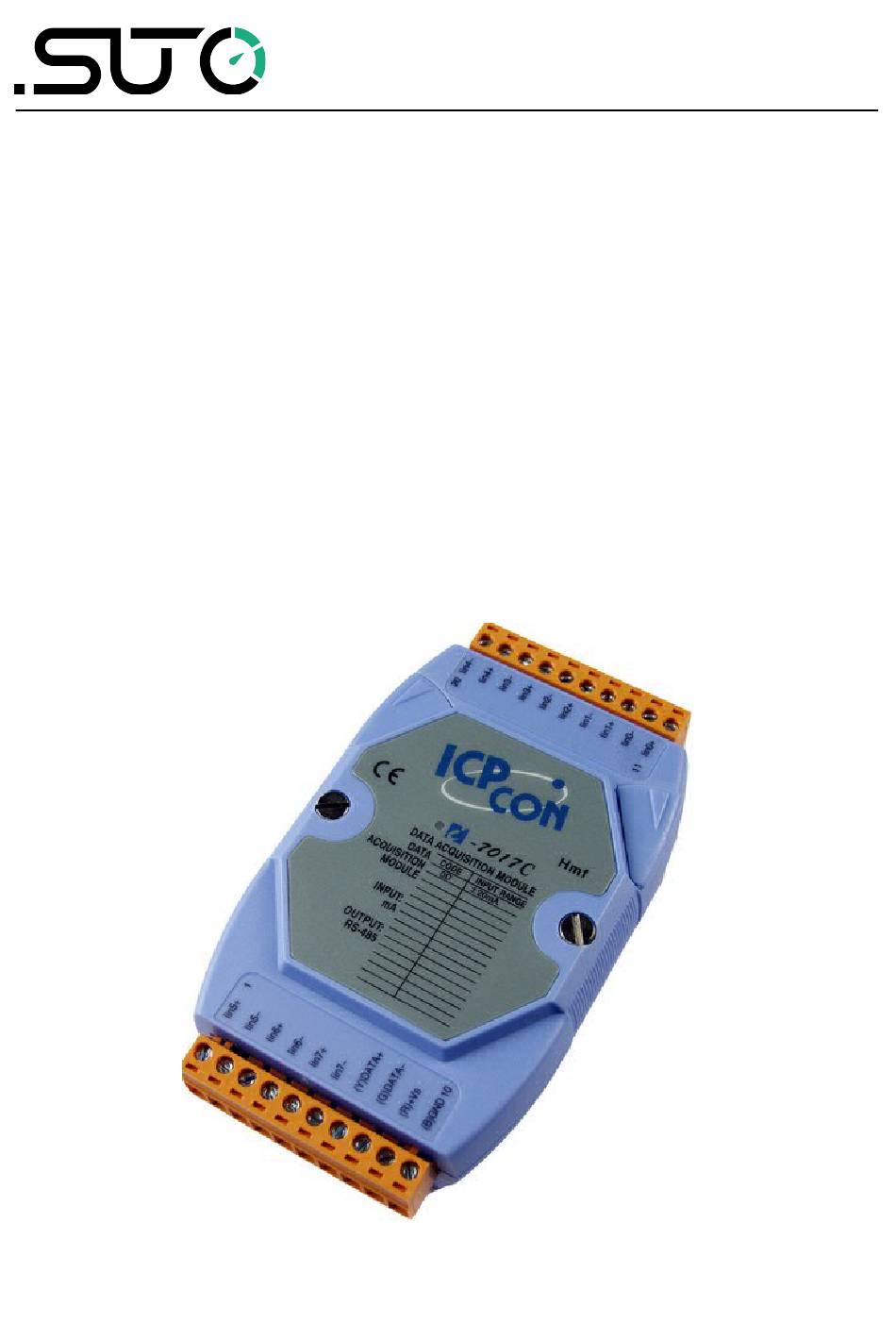

- Page 1 English Instruction and operation manual Current meter...
- Page 2 The device is destined exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
Table of contents 1. Safety instructions...............4 2. Application.................6 3. Features..................6 4. Technical Data................6 4.1 General.................6 4.2 Electrical Data................6 4.3 Input-Signals.................6 4.4 Output-Signals...............6 4.5 Accuracy................7 5. Installation ................7 5.1 Installation Procedure ............7 5.2 Electrical connection .............8 6. Modbus output ................9 7. Disposal or waste..............10 8. -
Page 4: Safety Instructions
1. Safety instructions 1. Safety instructions Please check if this instruction manual accords to the product type. Please observe all notes and instructions indicated in this manual. It contains essential information which have to be observed before and during installation, operation and maintenance. - Page 5 1. Safety instructions • It is not allowed to use the product in explosive areas. • Please observe the national regulations before/during installation and operation. Remarks • It is not allowed to disassemble the product. • Always use spanner to mount the product properly. ATTENTION! Measurement values can be affected by malfunction! The product must be installed properly and...
-
Page 6: Application
2. Application 2. Application The current meter is designed to measure 4... 20 mA signals within the permissible operating parameters. These parameters can be found in the technical data section. The current meter is not developed to be used in explosive areas. For the use in explosive areas please contact the manufacturer. -
Page 7: Accuracy
5. Installation Please make sure that all components listed below are included in your package. Qty Description Item No. Current meter D554 0031 Instruction manual No P/N 5.1 Installation Procedure Installation of the current meter DIN rail mounting Current meter... -
Page 8: Electrical Connection
5. Installation 5.2 Electrical connection Current meter... -
Page 9: Modbus Output
6. Modbus output 6. Modbus output Mode : RTU Baud rate : 19200 Device address Framing / parity / : 8, N, 1 stop bit Response delay : 0 ms Remarks • Modbus communication settings can be changed by the service software. -
Page 10: Disposal Or Waste
8. Warranty SUTO provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time. - Page 11 8. Warranty during transportation, excess heat or moisture). The warranty is cancelled: • If the user opens the measurement instrument without a direct request written in this instruction manual. • If repairs or modifications are undertaken by third parties or unauthorised persons.
- Page 12 SUTO iTEC GmbH SUTO iTEC Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +852 2328 9782 Fax: +49 (0) 7631 936889-19...
