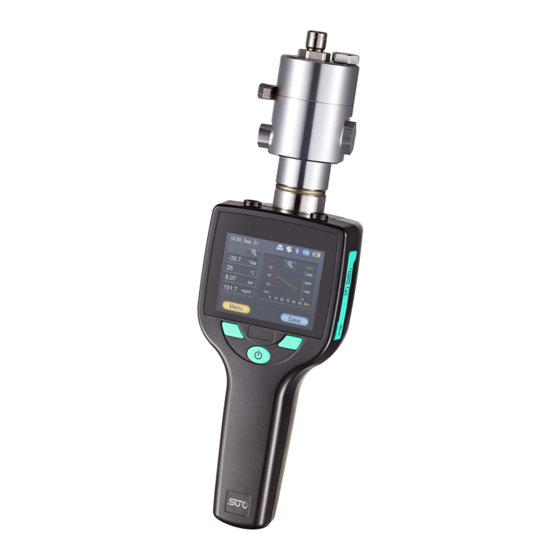

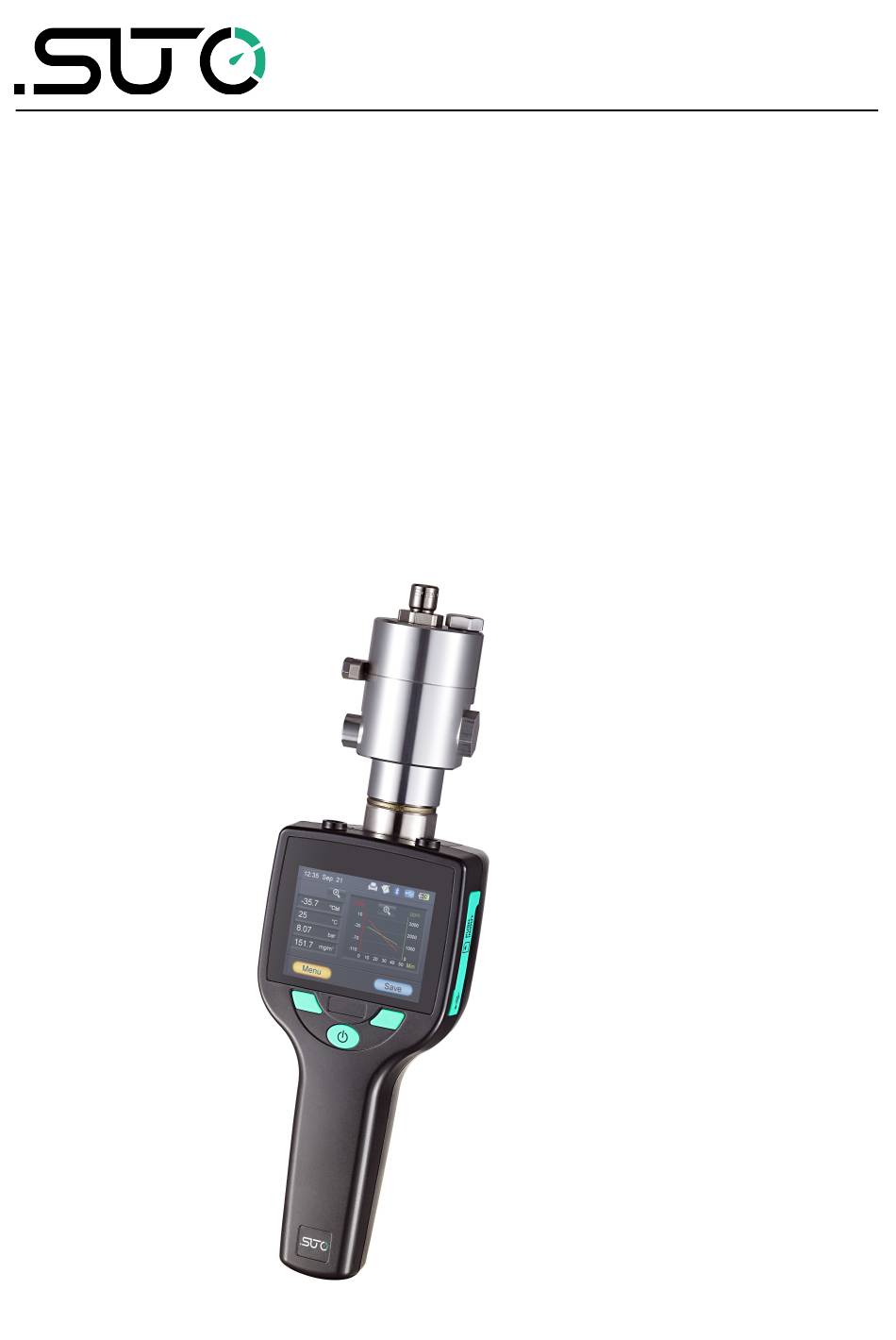

- Page 1 English Instruction and operation manual S505 Dew point meter (portable)
- Page 2 The device is designed exclusively for the described application. SUTO offers no guarantee for the suitability for any other purpose. SUTO is also not liable for consequential damage resulting from the delivery, capability or use of this device.
-
Page 3: Table Of Contents
8. Application software ..............18 8.1 S4A..................18 8.2 S4C-Handheld..............19 9. Optional extra accessories............19 9.1 Portable bluetooth printer HDT 312.........19 9.2 Measuring chambers for the S505...........21 9.2.1 Standard measuring chamber (A699 3500)......21 9.2.2. By-pass measuring chamber (A699 3501)......21 9.3 SD card 4G................22 10. Calibration................22 10.1 Dew point calibration............22... -
Page 4: Safety Instructions
• Consider all regulations for electrical installations. • The system must be disconnected from any power supply during maintenance work. • Any electrical work on the system is only allowed by authorized qualified personal. S505... - Page 5 • Make sure that the transportation temperature of the dew point meter is between -30 ... +70°C. • For transportation it is recommended to use the packaging that comes with the sensor. • Please make sure that the storage temperature of the sensor is between -40 ... +65°C. S505...
-
Page 6: Application
• For the storage the humidity must be <90%, no condensation. 2. Application The S505 is a dew point meter which is designed to monitor the dew point in industrial application within the permissible operating parameters. These parameters can be found in the technical data section. -
Page 7: Technical Data
* At least 0.3 MPa is needed for the measuring chamber supplied with the instrument. For low-pressure measuring below 0.3 MPa, choose the optional bypass measuring chamber A699 3501. 4.2 Electrical Data Power supply USB charger: 5 V, 2 A S505... -
Page 8: Accuracy
4. Technical Data 4.3 Accuracy Accuracy Dew point: ± 2°C Td @ -50°C Temperature:± 0.3°C Pressure:± 0.005 MPa Repeatability ± 0.5°C Stated accuracy at Ambient process temperature of 23°C ± 3°C and ambient humidity of < 90%, no condensation S505... -
Page 9: Dimensional Drawing
5. Dimensional drawing 5. Dimensional drawing S505... -
Page 10: Installation
• Use the sensor module Q for expected dew point below -50 °C Td. • Use the sensor module P for expected dew point above -50°C Td. 2. To change the sensor modules just open the 2 screws at the back of the instrument S505... - Page 11 The parking measuring chamber is mounted permanently on the sensor head to keep the sensor dry. To measure, the handle on the chamber must be turned into the “Measuring” position. After finishing the measurement, please return it to the “Park” position. Measuring position Parking position S505...
- Page 12 The hose is connected to the 6 mm connector at the chamber. 5. Connect the tip of the teflon hose with a quick connector. The teflon hose with quick connector is used to connect the measuring chamber to the process. S505...
-
Page 13: Electrical Connection
6.2 Electrical connection Please recharge the dew point meter if the battery is empty. For this use the charger which is included in your delivered package. 7. Operation 7.1 Buttons and connectors S505... -
Page 14: Symbols On Screen
The calibration is experted. It is recommended to re- calibrate the sensor unit. For this pleas contact the manufacturer. General error indication. Please note down the error code and contact the manufacturer. Bluetooth is active and ready to connect. S505... -
Page 15: Main Screen
7. Operation USB connection is established. A connection to the printer is established. The data logger is active. The SD card is inserted 7.3 Main screen S505... -
Page 16: Basic Operation
On the left side of the screen the menu is shown. It includes the follow menu items: • Settings • Logger • Files • Print • Bluetooth • Calibration • Service 7.5 Data logger S505... -
Page 17: File Menu
2 seconds. A window will pop-up where you can choose between edit, new, delete and chancel. The S505 has two different logger functions. One is the continues logging with sampling rate and the other one is a single value logging, where the user just stores the current values on the screen in a file. -
Page 18: Print Menu
7.8 Bluetooth menu The BT menu is used to establish the connection with the portable printer or the PC. In order to establish a connection The S505 and the printer need to be paired. 1. Switch on the portable printer and check the small screen on the printer. -
Page 19: S4C-Handheld
S4C-Handheld is the configuration software for the S505. Using the software, user data, which can be assigned to data logging files, can be managed. You can manage and download the following data to the S505 and finally print it on the portable printer: •... - Page 20 Menu selection Default setting Printing quality High Printing grade Auto feed Mark detect mode Self test Select it for self test BT clear binding Select it to break the pairing Auto off time 30 m Language English / Chinese S505...
-
Page 21: Measuring Chambers For The S505
9.2 Measuring chambers for the S505 9.2.1 Standard measuring chamber (A699 3500) The S505 is supplied with a measuring chamber (Item no. A699 3500) with a pressure range of 0.3 ... 1.5 MPa. This measuring chamber is used to connect the compressed air to the sensor using a 6 mm hose. -
Page 22: Sd Card 4G
If the instrument has a slight drift due to ageing, temperature or other effects a dew point and pressure calibration can be performed. 10.1 Dew point calibration Performing a dew point calibration is critical and the following considerations should be taken: S505... -
Page 23: Pressure Calibration
If there is any doubt about correct calibration process and result, the calibration can be removes at any time. Please follow the instruction on the screen. 10.2 Pressure calibration If the instrument is not showing 0 pressure at ambient condition, it is S505... -
Page 24: Maintenance
The sensor, the accessories and its packings must be disposed according to your local statutory requirements. The dispose can also be carried by the manufacturer of the product, for this please contact the manufacturer. S505... -
Page 25: Warranty
13. Warranty 13. Warranty SUTO provides a warranty for this product of 24 months covering the material and workmanship under the stated operating conditions from the date of delivery. Please report any findings immediately and within the warranty time. If faults occur during the warranty time, SUTO will... - Page 26 S505...
- Page 27 S505...
- Page 28 SUTO iTEC GmbH SUTO iTEC （ASIA) Co., Ltd. Werkstr. 2 Room 10, 6/F, Block B, Cambridge Plaza 79426 Buggingen 188 San Wan Road, Sheung Shui, N.T. Germany Hong Kong Tel: +49 (0) 7631 936889-0 Tel: +852 2328 9782 Fax: +49 (0) 7631 936889-19...
