ENSIM SENSORS ISS 04 Operating Manual page 6

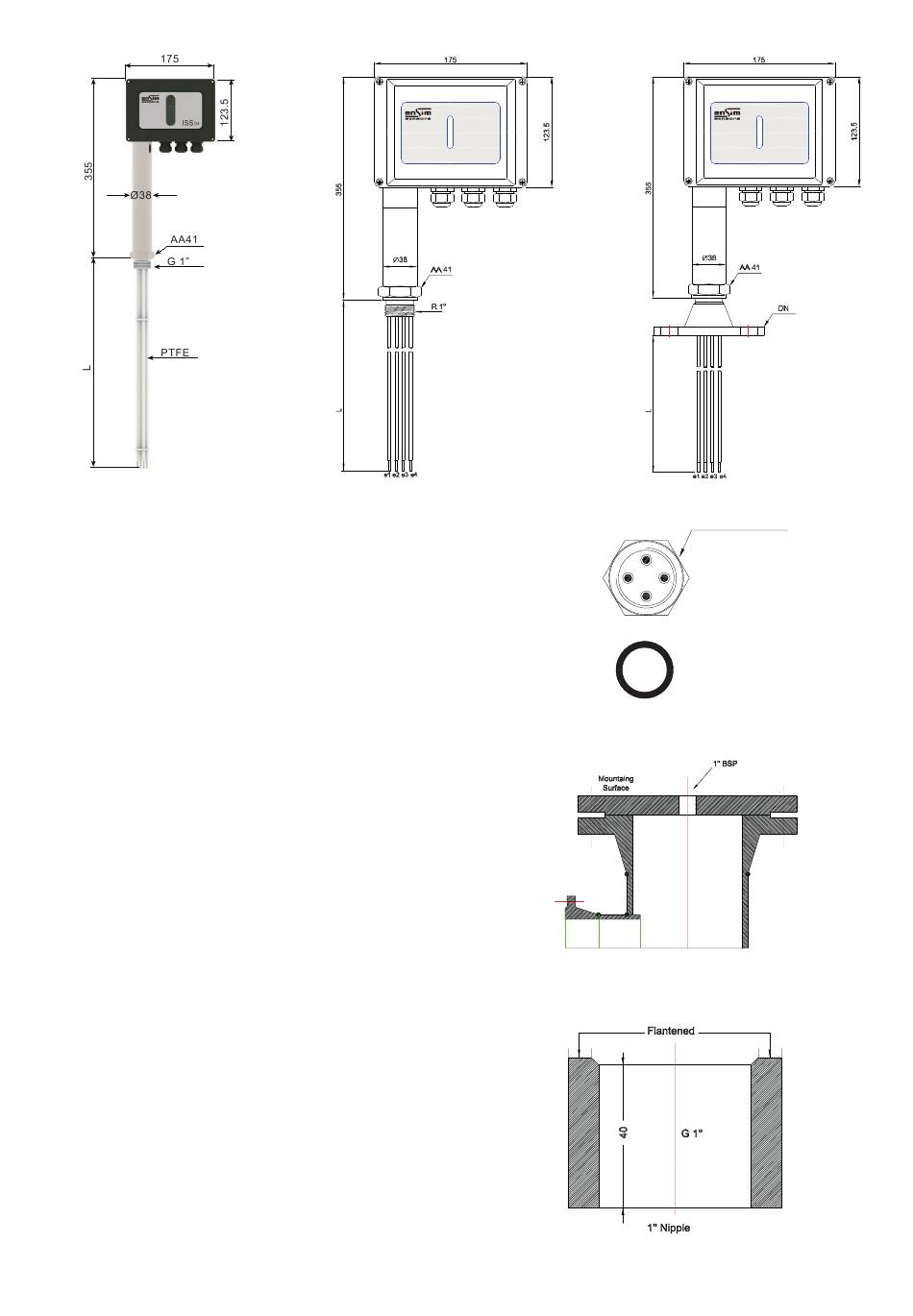

2.5. Dimensions :
Kontrol kutusu bakýþ açýsýna uygun olacak þekilde 360 derece döndürülebilir.
Note:
Mechanical Installation
The mounting part of the ISS-04 is the G1” screw. While mounting:
*Be careful about the seating surface is clean and flat.
*Don’t use any PTFE sealing strip,
use joint ring of Cu/Al instead.
*Don’t bend or press the rods.
After mountings finished , loose the fixing nut (B6) of head ,
adjust the direction of terminal box and refix it.
ISS
04
Figure 6
6
ISS
04
Seating Surface
33x40mm
Joint Ring
Figure 7
