- Page 2 Thank you for your purchase of a NAUTICAM camera housing. At NAUTICAM, we pride ourselves on the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
- Page 3 2. NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in this manual.

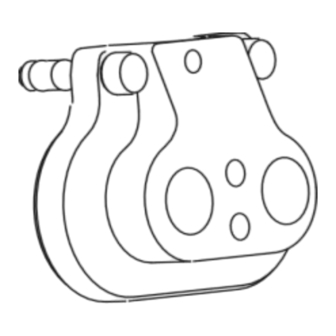

- Page 4 1. NA-XZ1 housing 2. Optical fibre mount 3. Spare silicone rubber housing main o-ring 4. O-ring remover 5. Lubricant 6. Set of Allen keys 7. Instruction manual 8. Warranty card Optical fibre mount Spare silicone rubber o-ring Set of Allen keys...
- Page 5 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O- ring on this housing, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the housing in a robust, shock-proof container during transportation;...
- Page 6 Specifications Identification of Parts Preparation of the Housing Opening and Locking the Housing Installing the Camera Care and Maintenance Optional Accessories...
- Page 7 Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 156 mm Dimensions Height: 108 mm Depth: 105 mm Weight Approx. 0.78 kg (without camera) Buoyancy Slightly negative Depth rating 75 metres TTL capability: Optical fibre mount included for external strobes connection, utilising the camera’s pop-up flash as trigger.
- Page 8 On/Off button Housing lock safety button Zoom lever Housing lock Shutter release key Focus light mount Control dial Internal flash window M10 strobe mounting base Port Mode dial...
- Page 9 * The maximum length of screws that can be used with the tripod sockets is 4mm Flash up lever Flash button Sequential shooting/Self Record button timer/Erase button Playback button Info button Exposure compensation Menu button button AF target/Macro button 1/4” – 20UNC tripod socket x 2* OK button Wheel controller...
- Page 10 1. After verifying that the housing main O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 11 To open the housing: 2. Turn the housing lock anti- 1. Press the housing lock safety clockwise for 270°, until the lock button. reaches the “Open” position as shown.
- Page 12 To lock the housing: 3. Close the housing, while the 4. Turn the housing lock clockwise housing lock is in the “Open” for 270°, until the lock reaches position. the “Lock” position as shown. Confirm that the white indicator line on the safety button is visible.
- Page 13 1. Open the housing. 2. Place the camera inside the housing as shown. 3. Close the housing. 4. Confirm that all the controls of the housing are correctly engaged.
- Page 14 A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the main O-ring annually. 4. It is recommended that you ship the housing to our distributor for a...
- Page 15 Diffuser Adaptor for Inon UWL-H100 LD28 Wet mate dome port...
- Page 16 Single handle tray with 2pcs 1/4'' screws Fully adjustable single handle tray with 2pcs 1/4'' screws Adjustable right handle with screws...
