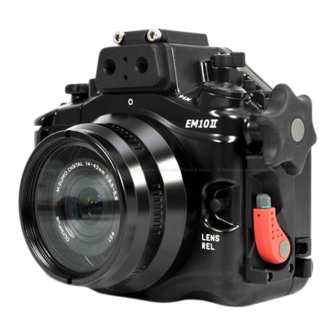

- Page 2 Thank you for your purchase of a NAUTICAM camera housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
- Page 3 NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in our manuals.
- Page 4 1. NA-EM10II housing 2. Instruction manual 3. Spare silicone rubber housing o-ring 4. O-ring remover 5. CR2032 battery (for moisture alarm) 6. Lubricant 7. Set of Allen keys 8. Pair of handle brackets 9. Shutter release extension CR2032 battery O-ring remover...
- Page 5 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O- ring on this housing, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the housing in a robust, shock-proof container during transportation;...
- Page 6 Specifications Identification of Parts Preparation of the Housing Opening and Locking the Housing Installing the Camera Mounting the Port Changing the Viewfinder Care and Maintenance Optional Accessories...
- Page 7 Patented easy port installation Port mount: system. Features Easily reached by thumb or Main and Sub dials: forefinger. Shutter release Provide convenient shutter release extension and access when used with Nauticam stainless steel Tray and Handle Systems . handle brackets:...
- Page 8 Model dial Housing lock safety button Rear dial Housing lock Fn2 button M10 strobe mounting base Movie lever Front dial Threaded holes for handle Shutter release lever brackets...
- Page 9 Accessory coldshoe Fn3 button Threaded holes for handle Optical fibre mount brackets Port alignment index Zoom/Focus knob M14 accessory port Port release safety button Lens release button Port lock/release lever ON/OFF/ Flash up lever 1/4”–20UNC tripod socket x 2* * The maximum length of screws that can be used with the tripod sockets is 4mm...
- Page 10 Moisture alarm window Left selection button LV lever Right selection button Fn1 button OK button Menu button Down selection button INFO button Playback button Up selection button Erase button...
- Page 11 1. After verifying that the housing O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the rear part of the housing is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 12 5. Setting up the moisture alarm: 1. Install the CR2032 battery provided into the battery compartment on the circuit board inside the front part of the housing. Switch the alarm on. The LED light will turn blue for five seconds indicating the battery is normal.
- Page 13 (Optional) Vacuum valve can be attached to the housing via one accessory port conducting a vacuum seal test. Please refer to the manual of the vacuum valve for more details of the operation. LED status identification: On start up: LED indicator Status Flash “Blue”...
- Page 14 Camera Settings 1. By setting the "EVF Auto Switch" function of the EM10II camera to Off allows switching between monitor display and EVF display by pressing the LV button. To disable this function, press and hold the LV button for a few seconds, the "EVF Auto Switch"...
- Page 15 To open the housing: 2. Turn the housing lock anti- 1. Press the housing lock safety button. clockwise for 270°, until the lock reaches the “Open” position as shown. To lock the housing: 3. Close the housing while the 4. Turn the housing lock clockwise housing lock is in the “Open”...
- Page 16 1. Disengage the red camera saddle 2. Tilt the LCD monitor of the camera lock by pressing it inwards. Then upwards, then attach the saddle to remove the camera saddle from the camera by tightening the screw the housing by sliding it outwards. to the tripod socket of the camera.
- Page 17 7. Confirm that all the controls of the housing are correctly engaged. 8. For removal of the camera from the housing, reverse the above procedures. 5. Gently push the ON/OFF lever downwards ensuring the actuator correctly engages with the ON/OFF lever of the camera.
- Page 18 Please refer to the NAUTICAM system port chart for a range of compatible ports. 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove.
- Page 19 6. Align the Port mounting indices of 8. Lock the port into place by turning the port and the housing. the port locking lever to the inward position. To ensure that the port is 7. Gently push the port into the port securely mounted, confirm that the opening of the housing, until it green line on the safety button of...
- Page 20 In order that users can change to a preferred viewfinder easily, the 0.66X viewfinder which comes with this housing is designed so that it can be removed and re-installed by following the simple steps described below. To remove the viewfinder: 2.
- Page 21 A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the main O-ring annually. 4. It is recommended that you ship the housing to our distributor for a...
- Page 22 P.N. 25611 P.N. 32204 M14 Vacuum Valve Nauticam 180˚ straight viewfinder for MIL housings P.N. 32205 Nauticam 45˚ viewfinder for MIL housings...
