Summary of Contents for Nauticam NA - XT5

  • Page 1: Table Of Contents

    February, 2023 NA - XT5 For Fujifilm X-T5 Camera PN 17159 User Manual Housing Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the housing Closing the housing Preparation for Use Optional Accessories Care/Storage Warranty Specifications...
  • Page 2: Introduction

    PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-XT5 Padded Travel Case...
  • Page 3: Important Instructions

    O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product.

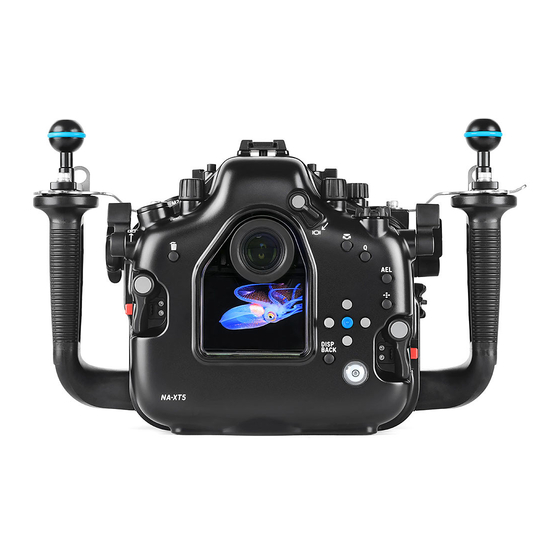

  • Page 4: Part Names And Functions

    PART NAMES AND FUNCTIONS Rear View Delete button Housing unlock button LCD/viewfiner lever Rear dial function button Quick menu button Exposure lock button Focus select button Right button Down button Moisture alarm window Up button Left button Display back button Menu/OK button...
  • Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port Drive lever ISO lock release button M14 Accessory port ISO dial Main switch M14 Accessory port Fn button Exposure compensation dial STILL/MOVIE mode lever Shutter speed dial Rear command dial Shutter speed lock release button Accessory mounting ball Optical fiber mount...
  • Page 6 PART NAMES AND FUNCTIONS Back + Side Views Sacrificial zinc anodes 1/4” Threaded tripod holes M5 Threaded holes Zoom/Focus dial Playback lever AF-ON lever Shutter release lever Front command dial...
  • Page 7: Housing Mount

    25086 M24 Adaptor for HDMI 2.0 cable M24 Accessory port 25077 M24D1R205-M28A1R170 HDMI 2.0 cable M5 Threaded holes 25218 Mounting ball set for tripod legs 1/4” -20 mounting threads 17954 Universal tripod plate 17960 Universal Quadra-Pod Plate for Nauticam Housings...
  • Page 8: Opening The Housing

    OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing...
  • Page 9: Closing The Housing

    CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely...
  • Page 10: Preparation For Use

    PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * lift up the Drive lever &...
  • Page 11 PREPARATION FOR USE * drawings as illustrations only Installing external battery power bank connect the external power bank via a right-angled USB-C cable slide the camera tray back into the housing along the tray rail and place the power bank into the battery holder under the camera as shown then lock camera tray * please refer to page 24 for external battery specification...
  • Page 12 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
  • Page 13 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
  • Page 14 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm Alarm ON/OFF CR2032 Battery remove battery press the battery down until it insulation film click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will flash in dampened cotton bud;...
  • Page 15 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
  • Page 16: Optional Accessories

    OPTIONAL ACCESSORIES * drawings as illustrations only Vacuum valve system remove the plug of M14 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and tighten the vacuum valve to the vacuum valve housing with the tool provided accesory port...
  • Page 17 OPTIONAL ACCESSORIES * drawings as illustrations only Strobe Mounting Ball Installing M5 Strobe Mounting Ball - RECOMMENDED M5 screw remove M5 screw with the allen key provided in the screw #25228 M5 Strobe mounting ball directing onto housing package the M5 thread * the anti-corrosion screw may also be Anti-corrosion unscrewed while removing M5 screw, if this...
  • Page 18 OPTIONAL ACCESSORIES Installing Viewfinder firstly remove the pre-installed 0.66x viewfinder gently push the 0.66x viewfinder from the inside of from the housing by removing the retainer o-ring the housing inside rear housing remove the retainer o-ring from the viewfinder align the viewfinder alignment pins with the LCD lightly lubricate the retainer o-ring and place it back display window and push the viewfinder into the from inside the housing...
  • Page 19: Care/Storage

    CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation.
  • Page 20: Warranty

    NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals.
  • Page 21: Specifications

    Construction Optional accessories Housing body Hard Anodized Aluminium Alloy 25624 M14 Vacuum Valve II (Pushbutton Release) 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1 Display window Abrasion Resistant Polycarbonate 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1 Dimensions 32213 Nauticam Full Frame Angle Viefwinder 32°/ 1:1...
  • Page 22 Monitor options ( 2.0 ) Monitor options ( 1.4 ) 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” (excl. HDMI 2.0 cable) 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor WET LENS COMPATIBILITY *please refer to Nauticam port charts for more setup information.
  • Page 23 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
