Page 1: Table Of Contents

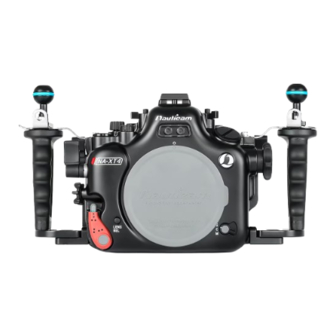

NA - XT4 For Fujifi lm X-T4 Camera PN 17157 User Manual Housing Introduction Package Contents Important Instructions Part Names and Functions Opening the housing Closing the housing Preparation for Use Recommended Accessory Care/Storage Warranty Specifi cations... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-XT4 Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specifi ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Delete button Housing unlock button LCD/viewfi ner lever Rear dial function button Quick menu button Exposure lock button Focus select button Right button Down button Moisture alarm window Up button Left button Display back button Menu/OK button... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views ISO lock release button Shutter speed lock release button M24 Accessory port Drive lever M14 Accessory port ISO dial Main switch M14 Accessory port Fn button Exposure compensation dial STILL/MOVIE mode lever Shutter speed dial Rear command dial Accessory mounting ball...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views Zinc Anodes 1/4” Threaded tripod holes Zoom/Focus dial Playback lever AF-ON lever Shutter release lever Front command dial...
-
Page 7: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing... -
Page 8: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely... -
Page 9: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing attach the camera tray by tightening the tray screw into the tripod socket of the camera * lift up the Drive lever &... - Page 10 PREPARATION FOR USE * drawings as illustrations only Port Mounting depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 11 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation fi lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will fl...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 14: Recommended Accessory
RECOMMENDED ACCESSORY * drawings as illustrations only Vacuum valve system remove the plug of M14 accessory port from the housing remove the cap from the vacuum valve hand pump slightly lubricate the o-ring and tighten the vacuum valve to the housing with the tool provided vacuum valve accesory port... -
Page 15: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 16: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 17: Specifi Cations
25077 M24D1R205-M28A1R170 HDMI 2.0 Cable *incompatible with SNA467086 before 09/2016 Monitor options 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” (excl. HDMI 2.0 cable) HDMI connectivity accessories ( 1.4 ) 25033 Standard HDMI Bulkhead with M16 Thread... - Page 18 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
