- Page 2 Thank you for your purchase of a NAUTICAM camera housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.
- Page 3 NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in our manuals.
- Page 4 1. NA-G7X housing 2. Instruction manual 3. Spare silicone rubber housing o-ring 4. O-ring remover 5. CR2032 battery (for moisture alarm) 6. Lubricant 7. Set of Allen keys CR2032 battery Spare silicone rubber o-ring O-ring remover Lubricant Set of Allen keys...
- Page 5 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O- ring on this housing, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the housing in a robust, shock-proof container during transportation;...
- Page 6 Specifications Identification of Parts Opening and Locking the Housing Preparation of the Housing Installing the Camera Changing the Port Care and Maintenance Optional Accessories...
- Page 7 Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 146mm Dimensions Height: 101mm Depth: 109mm Weight Approx. 0.88kg (without camera) Buoyancy Slightly negative Depth rating 100 metres Moisture alarm: Blinking LED and audible alarm Optical fibre mount included for external strobes connection, TTL capability:...
- Page 8 On/Off button Moisture alarm window Mode dial M10 strobe mounting base Exposure compensation dial Flash up lever Zoom lever Accessory coldshoe Zoom lever lock Optical fibre mount Shutter release lever Port alignment index Front control wheel Port lock safety button Standard flat port with 67mm M14 accessory port thread...

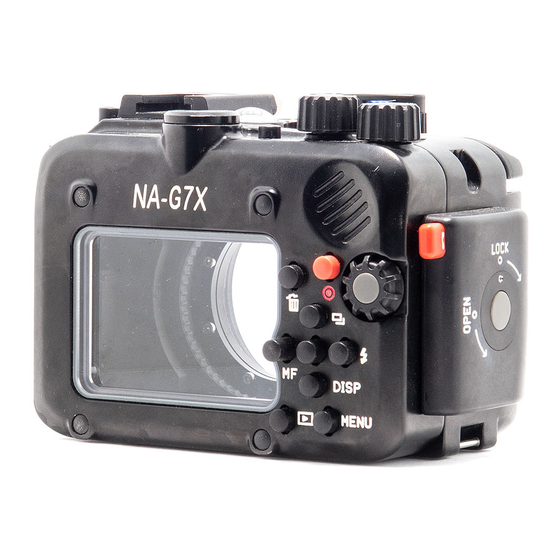

- Page 9 Mounting holes for LCD FUNC./SET button Magnifier attachment rails Ring function selector/ erase Display/ Down button button Movie button Menu button Rear control wheel Playback button Drive mode/ Wi-Fi/ Up button Housing lock safety button Macro/ MF/ Left button Housing lock Flash/ Right button 1/4”–20UNC tripod socket x 2* * The maximum length of screws that can...
- Page 10 To open the housing: 1. Press the housing lock safety 2. Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown. To lock the housing: 3. Close the housing while the 4. Turn the housing lock clockwise housing lock is in the “Open”...
- Page 11 1. After verifying that the housing O-ring is in good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the rear part of the housing is free from any foreign material; the groove can be cleaned with the aid of a microfiber cloth.
- Page 12 4. Setting up the moisture alarm: 1. Install the CR2032 battery provided into the battery compartment on the circuit board inside the front part of the housing. Switch the alarm on. The LED light will turn blue for five seconds indicating the battery is normal.
- Page 13 (Optional) Vacuum valve can be attached to the housing via one accessory port conducting a vacuum seal test. Please refer to the manual of the vacuum valve for more details of the operation. LED status identification: On start up: LED indicator Status Steady "Blue"...
- Page 14 1. Place the camera inside the 2. Confirm that all the controls of the housing are correctly housing as shown. engaged. Note that the camera should be inserted from the left first to avoid interfere with the strap mount and housing.
- Page 15 Two optional ports are available for different styles of photography. -38701 N50 Short Portwith M67 thread for Wet Wide Angle Lenses (widest focal length only) A shorter port with a 67mm thread to mount wet wide angle lenses. Workable focal length: 24-50mm. -38702 N50 3.5'' Acrylic Dome Port An acrylic dome port that restore the lens field of view underwater.
- Page 16 To mount port: 3. Align the "I" mark on the port with the "o" mark on the housing. 4. Gently push the port towards the housing until it cannot go any further. 5. Turn the port clockwise until the "o" mark on the port aligns with the "o"...
- Page 17 A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the main O-ring annually. 4. It is recommended that you ship the housing to our distributor for a...
- Page 18 P.N. 25123 P.N. 25106 LCD Magnifier Attachment Rails LCD Magnifier with Dioptric for NA-S110/S120/TG3/G7X Adjustment P.N. 38022 P.N. 25611 Diffuser for NA-G7X Housing M14 Vacuum Valve...
- Page 19 P.N. 38701 P.N. 38702 N50 Short Port with M67 thread N50 3.5'' Acrylic Dome Port for Wet Wide Angle Lenses (widest focal length only)
