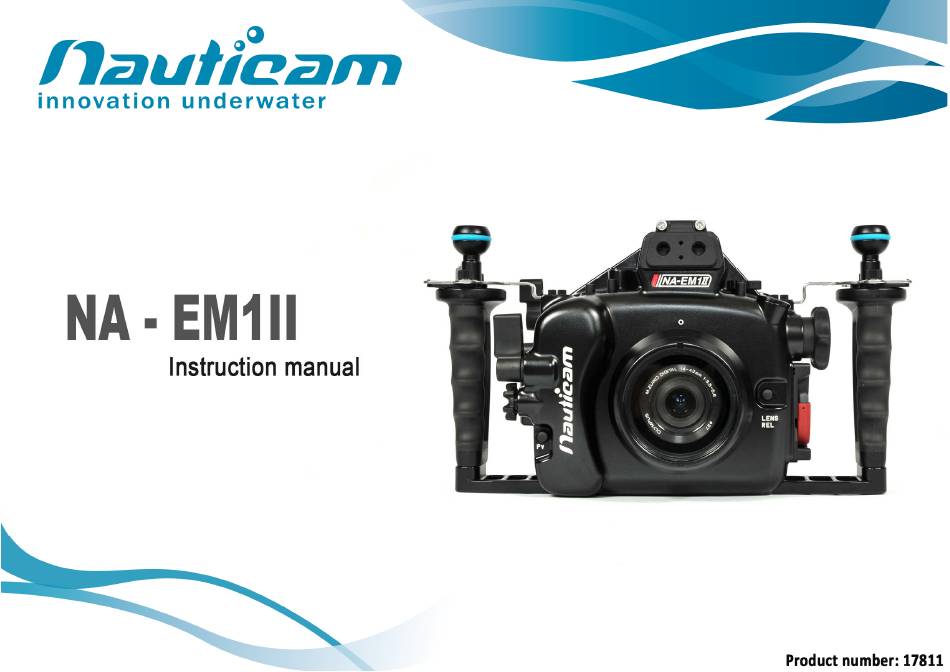

Nauticam NA-EM1II Instruction Manual
  1. Manuals
  2. Brands
  3. Nauticam Manuals
  4. Camera Accessories
  5. NA-EM1II
  6. Instruction manual

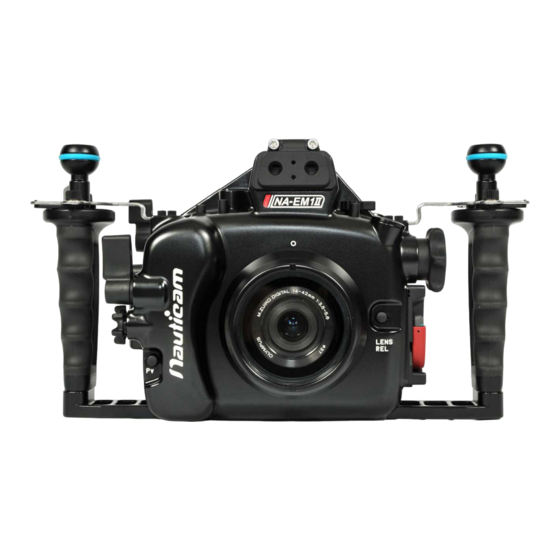

Nauticam NA-EM1II Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-EM1II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nauticam NA-EM1II

Summary of Contents for Nauticam NA-EM1II

  • Page 2 ORWARD Thank you for your purchase of a NAUTICAM housing. At NAUTICAM, we pride ourselves in the ability to recognise the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products. We strive to achieve a high level of user-friendliness by allowing stress-free installation and easy operation of all important functions of the camera.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS Warranty ……………………………………………………………………………………………………………. Precautions ………………………………………………………………………………………………………… Package Contents ………………………………………………………………………………………………. Specifications …………………………………………………………………………………………………….. Identification of Parts ………………………………………………………………………………………… Opening and Locking the Housing ……………………………………………………………………… Preparation of the Housing ………………………………………………………………………………… Installing the Camera …………………………………………………………………………………………. Switching between Viewfinder and Monitor ……………………………………………………… Mounting the Port ……………………………………………………………………………………………… Changing the Viewfinder …………………………………………………………………………………….

  • Page 4: Warranty

    NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.

  • Page 5: Precautions

    O-ring(s). • Do not use lubricants from other brands with the silicone rubber O-ring on this housing, only use the lubricant provided by NAUTICAM. • Discontinue use immediately should you notice any leakage.
  • Page 6 • Do not open the product in a wet or sandy environment. Protect the interior from moisture and debris in order to prevent malfunction or leakage. • Do not store the product in an environment of high humidity. • Do not leave the housing and the monitor in direct sunlight for prolonged periods. •...

  • Page 7: Package Contents

    ACKAGE ONTENTS • NA-EM1II housing • Spare silicone rubber O-ring for housing • O-ring remover • CR2450 battery • Lubricant • Set of Allen keys • Instruction manual...

  • Page 8: Specifications

    PECIFICATIONS Housing body: Aluminium alloy Construction Surface treatment: Hard anodised Display window: Abrasion resistant polycarbonate Width: 305mm Dimensions Height: 175mm Depth: 116mm Weight Approx. 1.95kg Buoyancy Slightly negative Depth rating 100 metres Port mount Compatible Olympus OM-D E-M1 Mark II camera cameras...

  • Page 9: Identification Of Parts

    DENTIFICATION OF ARTS Optical fibre mount Ball mount x2 Pv button Port alignment index...
  • Page 10 Accessory coldshoe Sequential shooting/ Self-timer/ HDR button On/off lever M16 accessory port AF/ Metering button Zoom/focus knob Port lock safety button Port lock lever Lens release button...
  • Page 11 M10 strobe mounting base Mode dial lock button Fn2 button M14 accessory port Shutter release lever Flash on/off lever Mode dial Rear dial AEL/AFL lever Housing lock safety button Front dial Housing lock...
  • Page 12 0.66x viewfinder Movie button Fn lever LV button Fn1 button Info button Up button Left button Right button OK button Down button Menu button Playback button Moisture alarm window Erase button...

  • Page 13: Opening And Locking The Housing

    PENING AND OCKING THE OUSING To open the housing: Press the housing lock safety Turn the housing lock anti- button. clockwise for 270°, until the lock reaches the “Open” position as shown...
  • Page 14 To lock the housing: Close the housing while the 2. Turn the housing lock clockwise housing is in the “Open” position. for 270°, until the lock reaches the “lock” position as shown. Confirm that the white indicator line on the safety button is visible.

  • Page 15: Preparation Of The Housing

    Prepar REPARATION OF THE OUSING 1. After verifying that the main O-ring is in 4. Setting up the moisture alarm: good condition, lightly coat it with the lubricant provided. 2. Make sure the O-ring groove located in the front part of the housing is free from any foreign material;...
  • Page 16 2. Switch the alarm on. The LED 3. Test the alarm by connecting the light will flash blue once and turn two wires near the bottom of the blue for five seconds indicating housing with a damp cotton bud; the battery is normal. Then it the alarm should start giving out goes into flashing blue light a repeating “beep”...
  • Page 17 Optional vacuum valve: Vacuum valve can be attached to the housing via one of the accessory port for conducting a vacuum seal test. Please refer to the manual of the vacuum valve for details of the operation. LED status identification: On start up LED indicator Status...
  • Page 18 After start up LED indicator Status Standby mode. The moisture alarm is active, Flashing "Blue" light and the system is ready for vacuum indication whenever a vacuum is detected. Flashing "Red" light Moisture is detected. with beeping sound Some vacuum is detected, target vacuum level Flashing "Yellow"...

  • Page 19: Installing The Camera

    NSTALLING THE AMERA To install the camera into to the housing: 2. Attach the saddle to the 1. Turn the locking lever on the tray of the housing to the “open” camera by tightening the position as shown. Then remove screw to the tripod socket of the camera saddle from the the camera.
  • Page 20 3. Lift the ON/OFF lever upwards. 5. If installing the camera with lens and gear attached, first pull 4. Then install the camera by out the zoom/focus knob and sliding the attached saddle sit on the shallower groove as along the rail in the housing shown.
  • Page 21 6. Lock the camera into place by 7. Gently push the ON/OFF lever downwards ensuring turning the locking lever to the actuator correctly engages with “lock” position as shown. the ON/OFF lever of the camera. 8. Confirm that all the controls of the housing are correctly engaged.

  • Page 22: Switching Between Viewfinder And Monitor

    Connect WITCHING BETWEEN IEWFINDER AND ONITOR By setting the "EVF Auto Switch" function of the EM-1II camera to Off allows switching between monitor display and EVF display by pressing the LV button. To disable this function, press and hold the LV button for a few seconds, the "EVF Auto Switch"...

  • Page 23: Mounting The Port

    Connect OUNTING THE Please refer to the NAUTICAM system port chart for a range of compatible ports: 1. Remove the O-ring from the port, inspect for any damage and lightly coat it with the provided lubricant before placing it back into its groove.
  • Page 24 Connect 4. Turn the port locking lever to 5. Lift housing cap. the release position as shown.
  • Page 25 Connect 6. Align the Port mounting indices 8. Lock the port into place by of the port and the housing. turning the port locking lever to the inward position. To ensure 7. Gently push the port into the that the port is securely port opening of the housing, mounted, confirm that the...

  • Page 26: Changing The Viewfinder

    Connect HANGING THE IEWFINDER In order that user can change to a preferred viewfinder easily, the 0.66x viewfinder which comes with the housing is designed so that it can be removed and re-installed by the following simple steps described below. To remove the viewfinder: Push 1.
  • Page 27 Connect To re-install the viewfinder: Lightly coat the O-rings on the outer periphery of the viewfinder body with lubricant. 2. Push the viewfinder from the 1. Align the viewfinder with the outside of the housing until it sleeve in the display window. cannot go in any further.

  • Page 28: Care And Maintenance

    O-ring with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. • Replace the main O-ring annually. It is recommended that you ship the housing to our...

  • Page 29: Optional Accessories

    PTIONAL CCESSORIES P.N. 25624 P.N. 32204 P.N. 32205 M14 Vacuum Valve II Nauticam 180˚ straight Nauticam 45˚ viewfinder for (Pushbutton Release) viewfinder for MIL housings MIL housings P.N. 25028 P.N. 25032 Socket extension for 25032 HDMI Custom HDMI bulkhead to...
