Alternatively you can use a crowbar (naildrawer /
assembly lever), attach it between the foot of the
screen and the chassis of the machine and pull
the screen down.
5. Bring the fork down until the screen is completely
free. Attention: do not bring the fork down too
much, take care for the door-switch and the
guide-bars for the collecting bin! Now remove
the fork lifter from the machine. Clean the screen
and also clean the chassis of the cutting block and
the cutting cylinders thoroughly from any residues,
especially the magnetic particles and dust.
6. To install the screen, put it on a wooden pallet or
wooden bars on the fork of the fork lifter. Make
sure that the chassis of the cutting block and the
screen are both level, which will help to easier fit
the screen into the machine again. Attention:

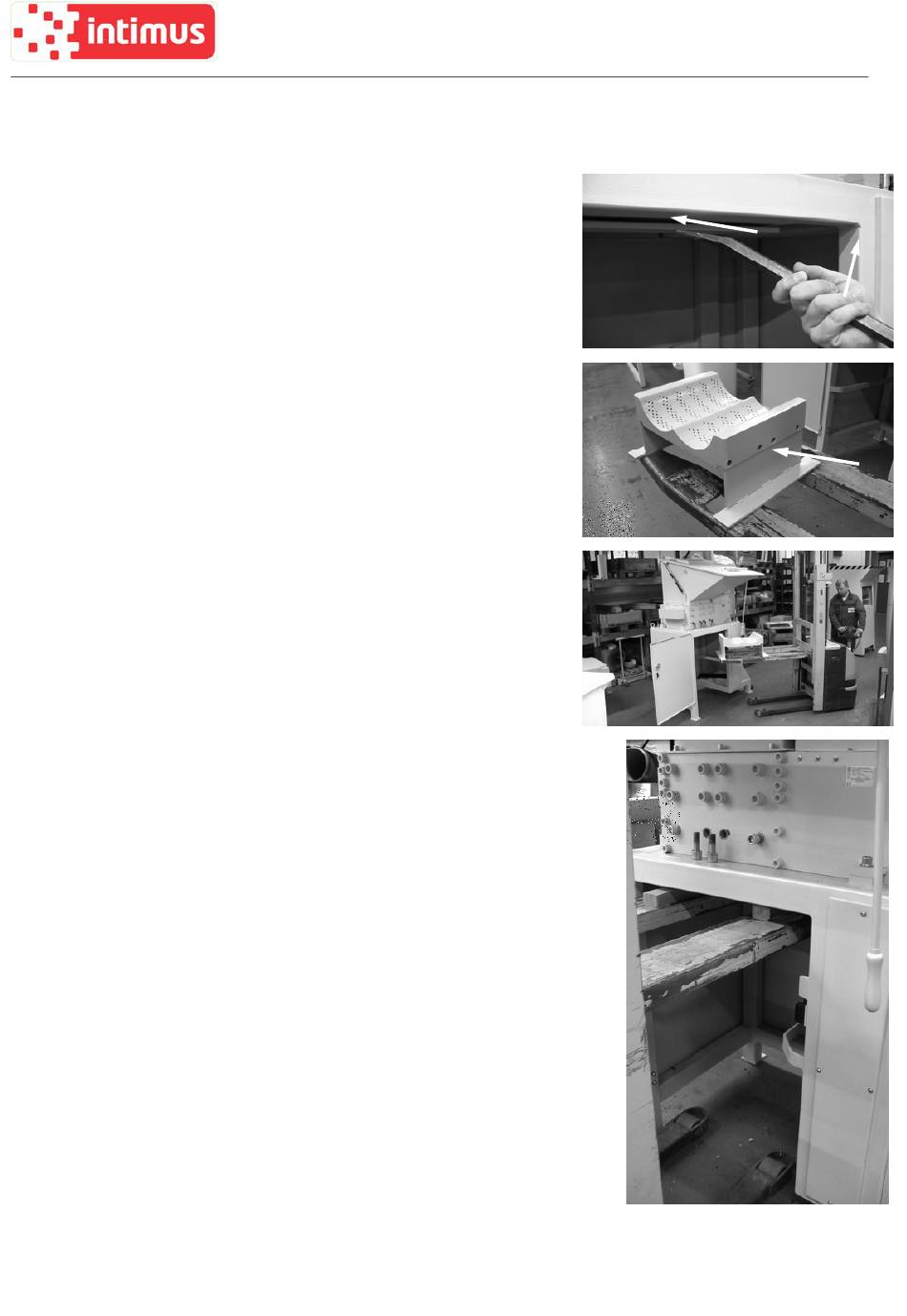

please check the screen for the mark "FRONT"
(see arrow on the picture to the left). This side
must be installed towards the front side (door)
of the machine. Install the screen by following the
points 5 to 1 in the opposite way. Attention: bring
the fork with the screen up so that the fork is
above the door switch and the guide bars of
the collecting bin, but also ensure that the
screen is low enough to match under the
chassis. Then carefully position the screen so that
it matches with the opening of the cutting block
and carefully lift it into the cutting block. Finally it
will get in touch with the combs within the cutting
block. At the feet there will remain a gap
towards the chassis, so do not try to lift the
screen any further, else you will lift the
complete machine. Then the holes in the cutting
block should match with the treads in the screen
so that you can assemble the 4 large allen head
bolts at the front and rear side of the cutting block.
First tighten the 4 bolts at the front carefully, then
the 4 bolts at the rear. Then you can remove the
fork lifter carefully.
