HDD Granulator 7

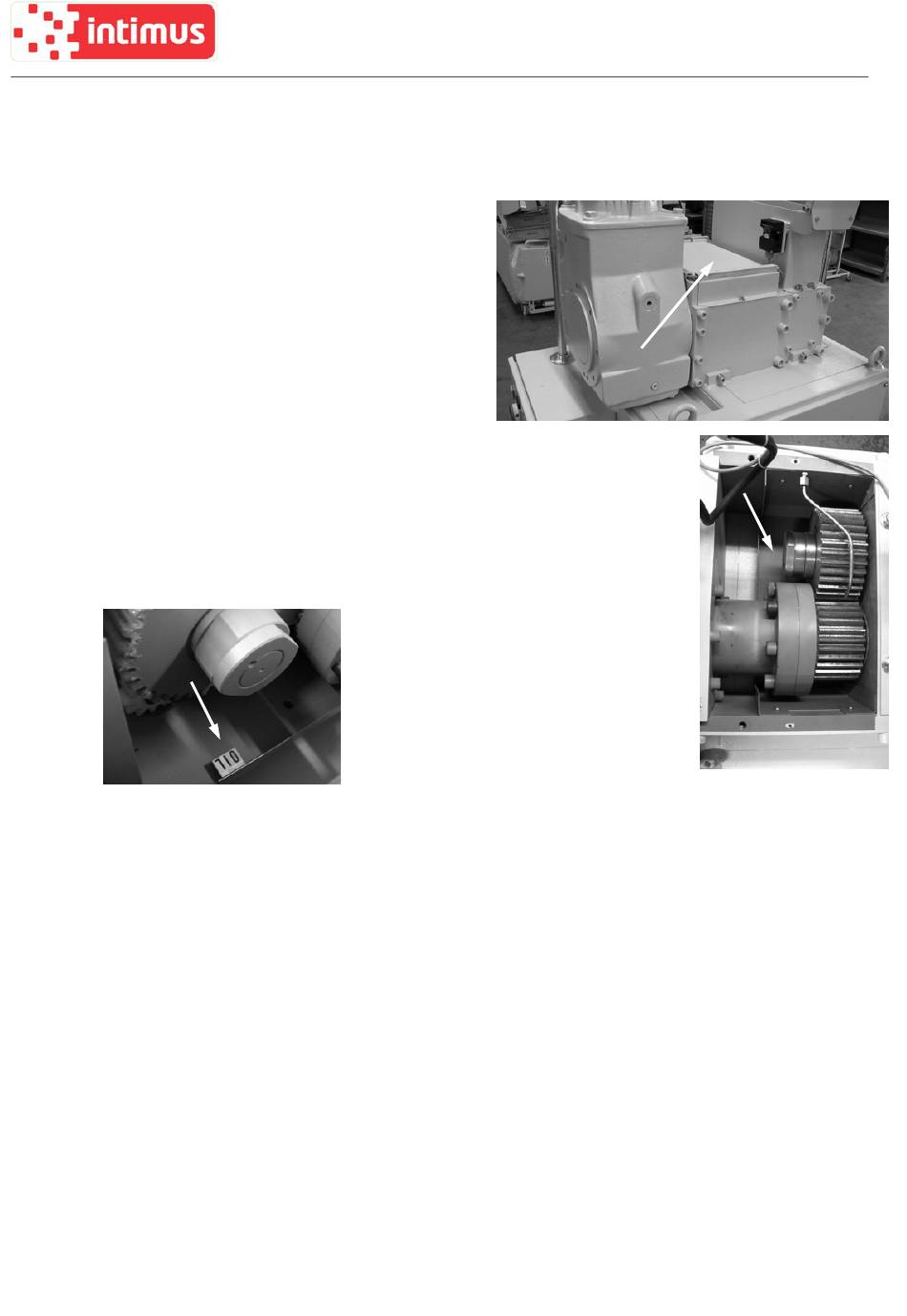

7. Add oil to the oil-pan (B): There is a
canister of oil supplied with the machine.
This is used as emergency lubrication of the
spur gears of the cutting block. First remove
the sheet steel cover of the gearing section
of the cutting block (A) by disassembling its
two allen head bolts.
A
Since the rim of the oil pan is lower under
the spur gears (where it cant be seen) than
at the front, it is important to not top up to
the full height. Please fill in oil up to the mark (C) - if existing - or fill
in approx. 10 mm high. Then make sure that no one reaches into
the spur gears and start the machine. Let it run for half a minute
B
and watch the spur gears. If oil is applied to them, the filling level is
ok. If no oil appears on the spur gears, top-up further 2 to 3 mm oil.
Let the machine run again and proceed as prescribed until oil is
applied onto the spur gears. Then close the cover again and fix it
with the two bolts.
C
