6.3 Checking the operating direction
1. Switch the main switch on (position "1")
2. Release the emergency stop button if pressed and operate the start-button.
3. Check the operating direction of the shredder. The rotation of the cooling fan of the main
drive must comply with the arrow on the fan shroud. If necessary, correct by altering the
phase at the terminals of the mains supply (L1 , L2, L3).
Caution: Alteration of the phase at the mains supply cord must only be carried out by a
qualified electrician and with the power supply to the machine disconnected.
4. After all installation and connection work has been carried out, operation can be started.
Important note: To ensure safe operation of this unit without malfunctions, the
operating instructions must be read first carefully.

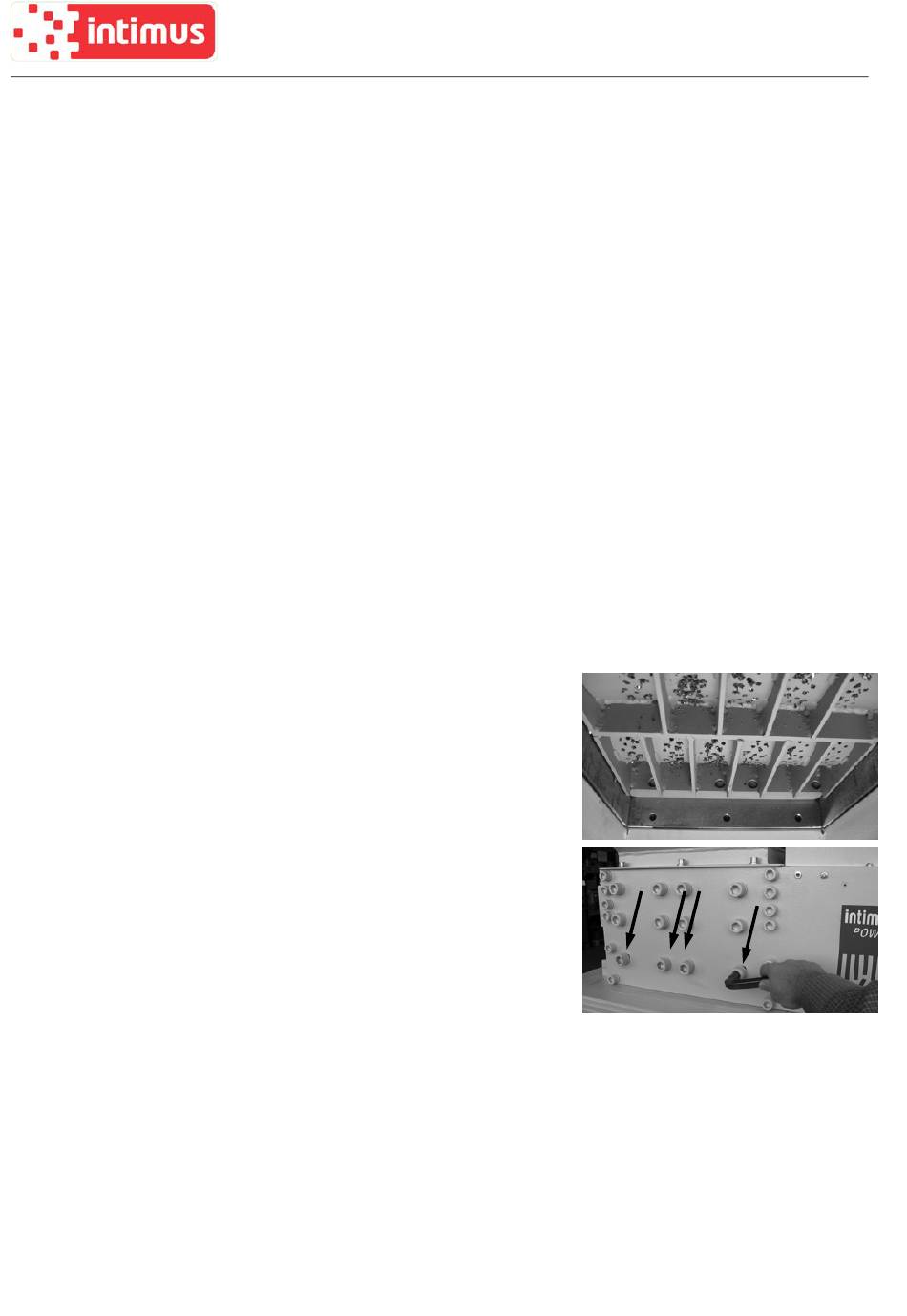

6.4 Installing / Changing the Optional Screen
For perfect adaptation of the machine to various materials and security requirements, the
machine can be equipped with an additional screen with 10, 8 or 6 mm wide holes. This
screen is installed underneath the cutting block and will keep all shredding particles within the
cutting block until they are cut to a size that will fit through the holes of the screen so that they
can drop into the collecting bin. To remove the screen proceed as follows:
1. Open the door, remove the collecting bin and
clean the chassis of the cutting block and the
screen from metal and magnetic parts. Wear thick
protective gloves to avoid injuries.
2. Put a suitable wooden pallet on a fork lifter and
bring the pallet in position under the screen
Ensure the fork lifter and pallet can cope with the
weight of the screen of some 50 kgs.
3. Loosen the 4 bolts on the front of the cutting block
and appropriate 4 bolts on the rear side (allen
head size 17).
4. Let the fork and pallet down by some 50 mm to
check if the screen slides down automatically. If
not, use a thin stick of aluminium, put it from
above in an edge of the cutting zone in a gap bet-
ween the chassis and the cutters until it touches the screen under the cutters. Use a
plastic hammer to hammer the screen with the stick down. Do so regularly in all 4
edges to avoid canting until the screen sits freely on the wooden pallet.
