INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the Parts
List in the appropriate place in your machine manual for future reference.
Retaining the Parts List will make it easier to reorder individual parts and will
save you the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.

Installation instructions for kit number 383265

DESCRIPTION:

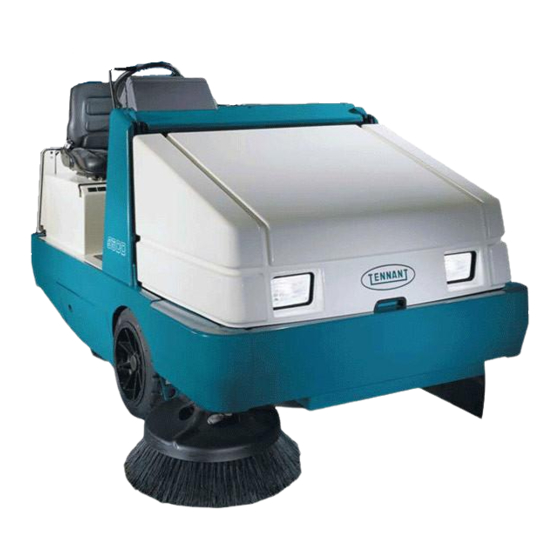

This kit contains the parts needed to replace the main brush lift handle on the model 6500
sweeper.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: None
(Estimated time to complete: 1 hour)

PREPARATION:

FOR SAFETY: Before leaving or servicing machine, stop on level surface and set parking
brake. Then turn off machine and remove key.

INSTALLATION:

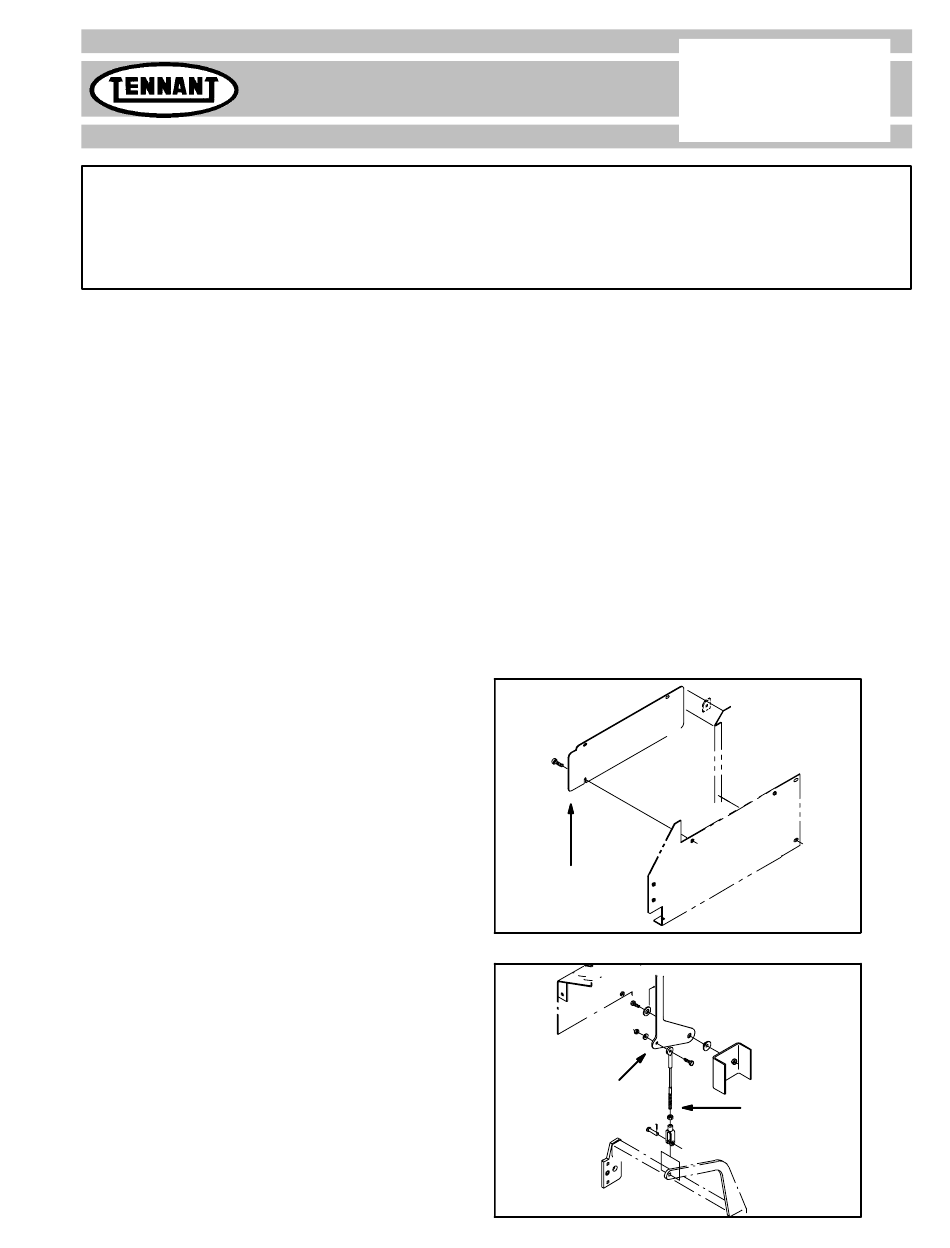

1. Remove and set aside access plate 383189
and mounting hardware from the operator's
compartment.
2. Disconnect the main brush lift cable 383194
from lift lever 383150.
IB 340542 (7-02)
No. 340542
Machine: 6500
Published: 7-02
Rev. 00
383189
383150
383194
1
