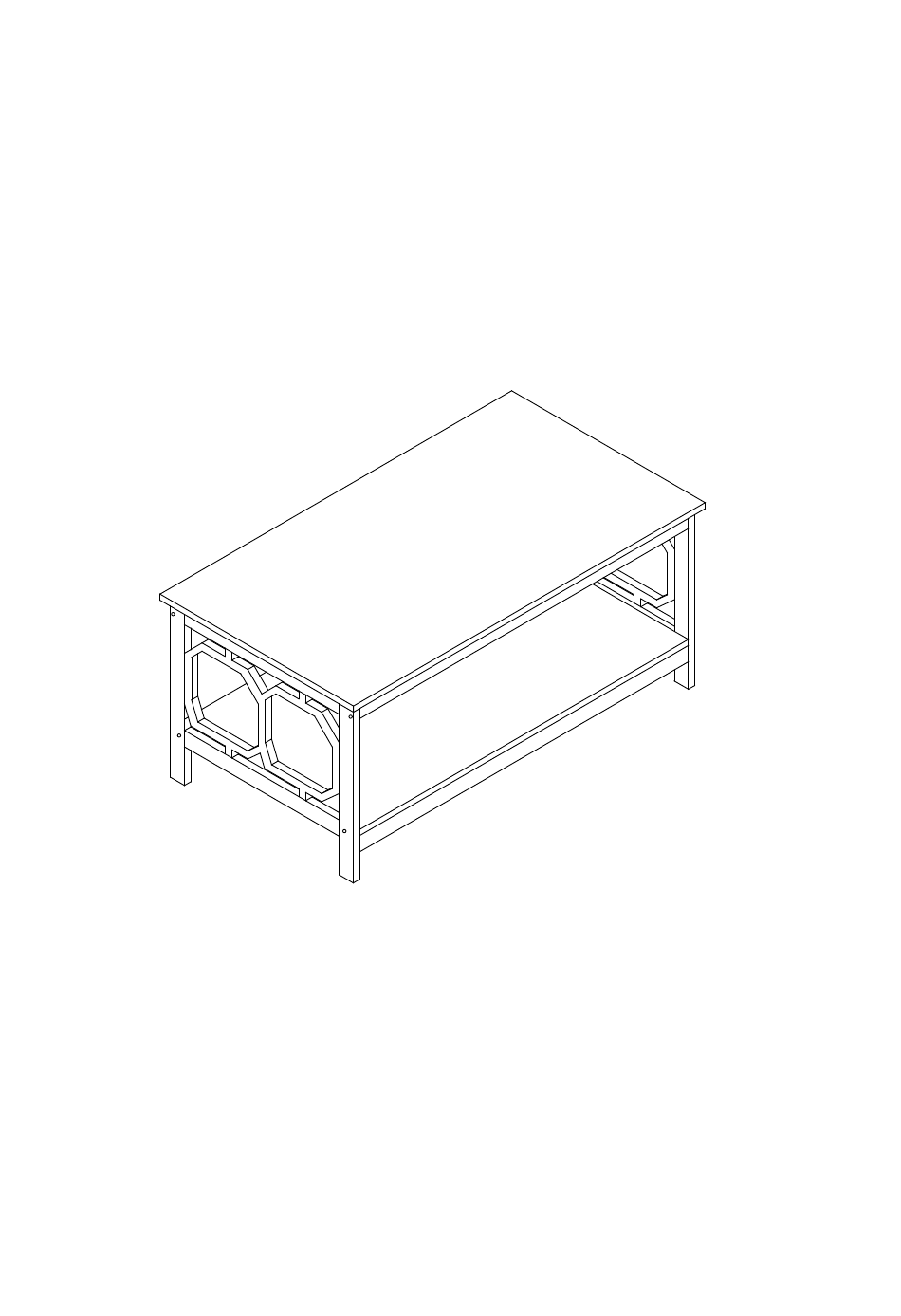

f ee T able
Co f
Assembly Instructions
We have designed our furniture with you,the customer in mind.Our clear,easy to follow
step by step instructions will guide you through the project from start to finish.
Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of
furniture that will go together smoothly and give years of enjoyment.
Advertisement
Table of Contents
Related Manuals for convenience concepts Oxford 203082
Summary of Contents for convenience concepts Oxford 203082
- Page 1 f ee T able Co f Assembly Instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
- Page 2 *Special Note：We recommend the use of a hand held screwdriver to avoid the stripping of screw heads.* Top Panel Right Panel Support Bar Support Bar Bottom Panel Support Bar Support Bar Left Panel 8 x Stickers(E) 12 x Cam Lock(F) 12 x Wood Dowel(A) 8 x Bolt(B) 8 x Lock Nut(C)
- Page 3 Step 1 6 X (D) 6 X (F) 1.Screw Cam Bolts(D) into Bottom Panel 2.Insert Cam Locks(F) NOTE: into 2 Support Bars Assemble console on carpet or 3.Connect Support Bars to Bottom Panel by gently tightening other soft surface to avoid scratching. Cam Locks(F).
- Page 4 Step 4 4 X (B) 4 X (C) 1.Repeat Step 3 using Right Panel Step 5 4 X (A) 6 X (D) 1.Insert Wood Dowels (A) and Screw Cam Bolts (D) into Top Panel Step 6 6 x (F) 1.Connect assembly to Top Panel using Cam Locks (F).
- Page 5 Step 7 8 X (E) 1.If desired，place Stickers (E) over screw holes. 2.Enjoy. Page 5 of 5...
