convenience concepts 203055 BL Assembly Instructions

Oxford tv stand

CONVENIENCE

Assembly instructions

We have designed our furniture with you,the customer in mind.Our clear,easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　Broken or missing Hardware?

　 Need help with Assembly?

　　If you have any questions just call 1-800-468-6447 or email us at

　　parts@convenience-concepts.com

CONCEPTS

203055 BL

203055 W

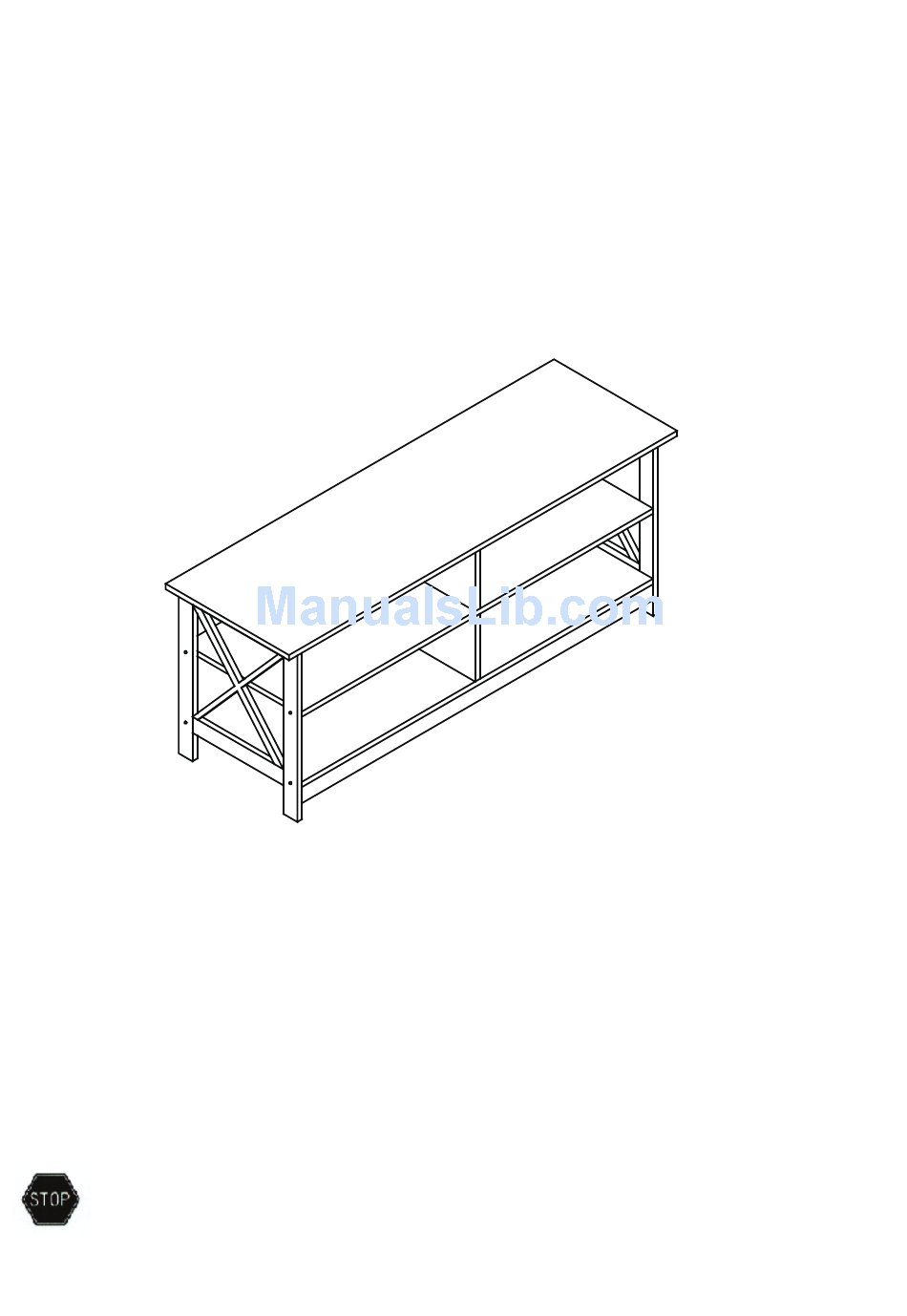

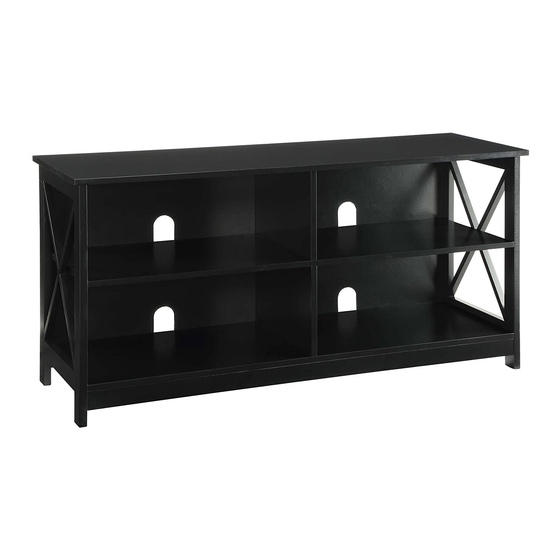

Oxford TV Stand

Table of Contents

Need help?

Do you have a question about the 203055 BL and is the answer not in the manual?

Page 1 CONVENIENCE CONCEPTS 203055 BL 203055 W Oxford TV Stand Assembly instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 A x16 B x16 C x8 D x8 E x8 F x5 G x8 Assembling the unit with cams and wood dowels. Gently screw cam Insert cam lock with dowel into the arrow pointing down. threaded anchor. Screw the cam firmly into locked position.
Page 3 Step 1 1. Attach foot to panel 4 with screws (F). 2. Attach bottom rails 5 to panel 4 using camlock hardware. Attach panel 2 to panel 3 using screws (F). Step 2 1. Attach panel 2 to assembly using camlock hardware.
Page 4 Step 4 Attach top panel 1 to unit using camlock hardware as shown. Step 5 1. Apply stickers (G) over bolt holes on sides of legs. 2. Enjoy!

203055 w
