CONVENIENCE

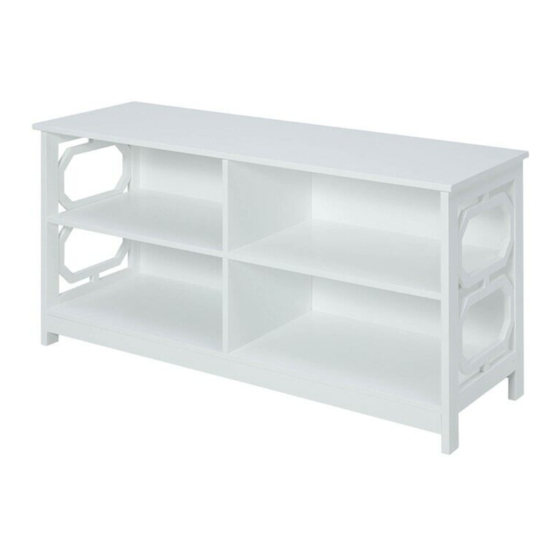

203056W/203056BL Omega TV Stand

Assembly instructions

We have designed our furniture with you,the customer in mind.Our clear,easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　Broken or missing Hardware?

　 Need help with Assembly?

　　If you have any questions just call 1-800-468-6447 or email us at

　　parts@convenience-concepts.com

CONCEPTS

Need help?

Do you have a question about the Omega 203056W and is the answer not in the manual?

Page 1 CONVENIENCE CONCEPTS 203056W/203056BL Omega TV Stand Assembly instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 *Special Note：We recommend the use of a hand screwdriver to avoid the stripping of screw heads.* Top Panel Divider Panel Middle Panel Right Leg Divider Panel Bottom Panel Bottom Rail Foot Bottom Rail Left Leg A x16 B x16 C x8 D x8 E x8 F x5...
Page 3 Step 1 Step 2 * make sure that arrows on camlocks face towards bolt holes * Bottom Bottom 1. Attach foot to panel using screw (F). 1. Attach divider panel 2 to middle 2. Screw cambolts (A) into bottom of bottom panel panel 3 using screws (F).
Page 4 Step 5 1. Screw cambolts (A) into top panel Insert wood dowels (C) into legs 2.Insert camlocks (B) into legs and divider panel as shown. 3. Insert back panel into grooves of legs and middle panel 4. Attach top panel assembly by gently tightening camlocks.
