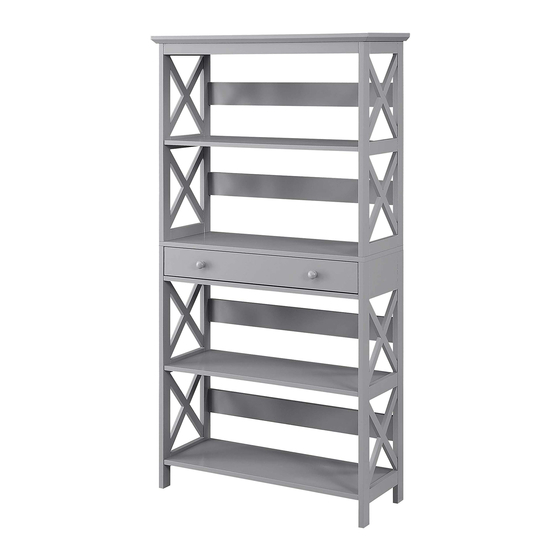

Oxford 5 Tier Bookcase with Drawer
Assembly Instructions
We have designed our furniture with you, the customer in mind. Our clear,easy to follow
step by step instructions will guide you through the project from start to finish.
Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of
furniture that will go together smoothly and give years of enjoyment.
Please do not return to the store
. Broken or missing Hardware?
. Need help with Assembly?
Our lllinois based customer service team is ready to help with any problems
or questions you may have.Please give us a call (Toll Free) at 1-800-468-6447 or email
us at parts@convenience-concepts.com.
Normal hours of operation:M-F* 8am-4pm CST
*Excludes Holidays
This product's warranty is only valid through authorized resellers.
CONVENIENCE
CONCEPTS
203051
Advertisement
Table of Contents
Related Manuals for convenience concepts Oxford 203051
Summary of Contents for convenience concepts Oxford 203051

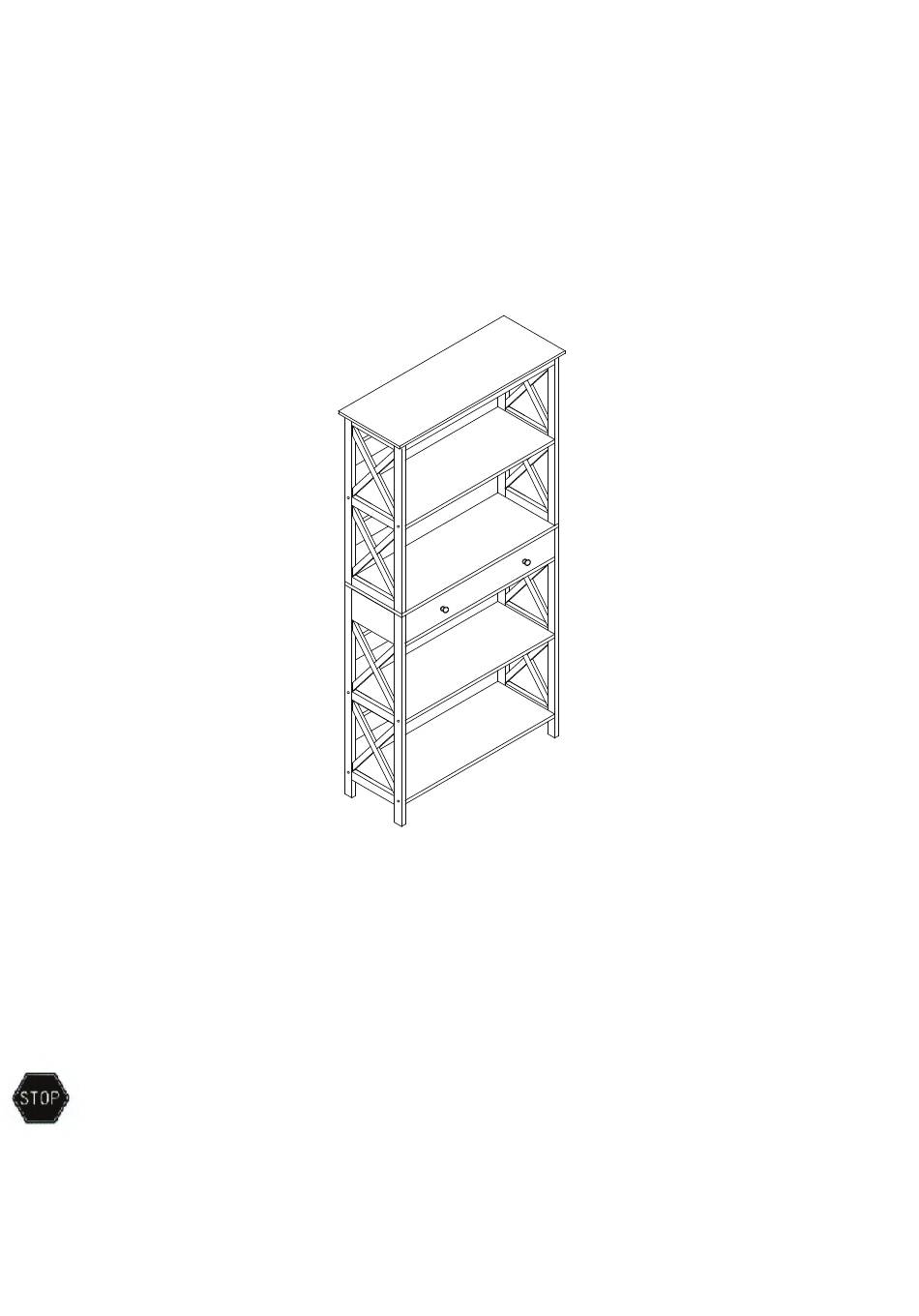

- Page 1 CONVENIENCE CONCEPTS Oxford 5 Tier Bookcase with Drawer 203051 Assembly Instructions We have designed our furniture with you, the customer in mind. Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project.
- Page 2 4 3PCS 5 1PC 3 4PCS 2 2PCS 1 1PC Shelves Back Support Bar Middle Panel Top Support Bar Top Panel 6 1PC 7 1PC 8 1PC 9 1PC Top Right Panel 13 1PC 10 1PC 11 1PC 12 1PC Back Support Bar Drawer Right Side Panel 14 1PC...
- Page 3 Hardware A 16PCS B 16PCS C 30PCS 30PCS 16PCS F 4PCS G 4PCS H 2PCS I 2PCS Lock Nut Screw Wood Dowel Wood Dowel Screw Cam Bolt Cam Lock Bolt Skinny J 6PCS K 2PCS N 1PCS L 16PCS O1PCS M 2PCS Small Screw Anchor Right Glider...
- Page 4 Step 1 1.Screw Cam Bolts (C) into Top Right Panel Top Right Panel using Bolts (A) and Lock Nuts (B). Top Support Bars to Top Right Panel using Bolts (A) and Lock Nuts (B). Top Right Panel using Cam Bolts (C) and Cam Locks (D). *Make sure rough edge of Support Bars are facing the top of unit* *Make sure threads of lock nut (B) face bolt (A) entrance hole.*...
- Page 5 Step 3 1.Insert Wooden Dowels (F) into Middle Panel 2.Connect Top Panel and Middle Panel to assembly using Screws (E),as shown. 10 X (E) 4 X (F) Step 4 4 X (J) 1 X (N) 1 X (O) Page 5 of 8...
- Page 6 Step 5 Support 4 X (A) 4 X (B) 8 X (C) 8 X (D) & 11 * Refer to page 2 for cam lock/bolt assembly.* Step 6 * Refer to page 2 for cam lock/bolt assembly* using cam bolts(C),Cam Locks(D),Lock Nuts(B), and Bolts(A).
- Page 7 Step 7 4 X (C) 4 X (D) 2 X (I) 2 X (J) 1.Screw Cam bolts (C) into Middle Panel 2.Connect the 2 assembles together using Cam Bolts (C) and Cam Locks (D). ip Bracket (I) to back of unit of using Screws (J). 3.Attach Anti-T Step 8 2 X (C)
- Page 8 Step 9 1. Carefully slide drawer into unit. Step 10 remove unit. . 3.Drill holes into wall slightly smaller then Anchors (K) and gently tap Anchors (K) into wall. 2 X (E) 2 X (K) 16 X (L) wall from underside of unit top. Page 8 of 8...
