convenience concepts 203536 Assembly Instructions

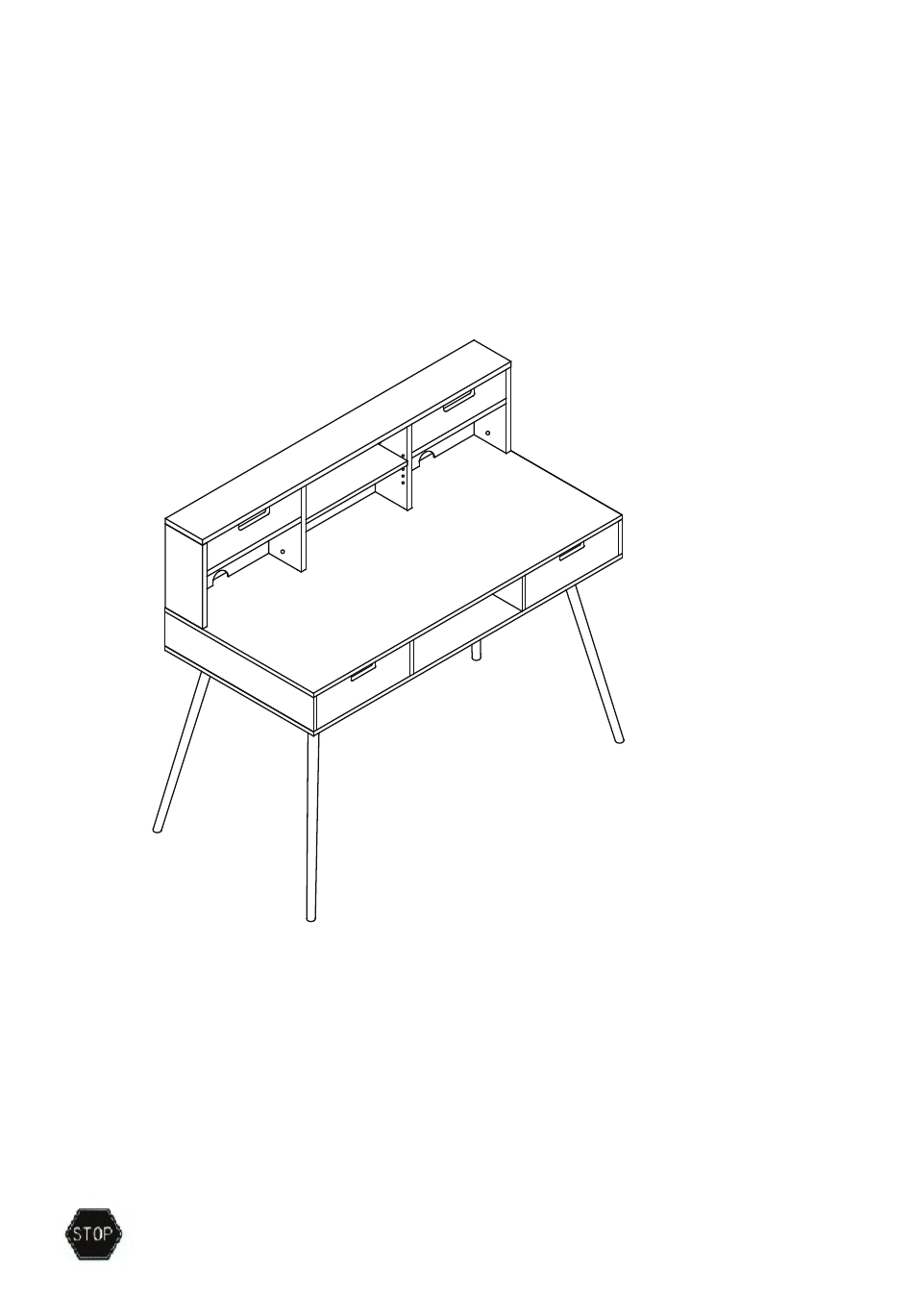

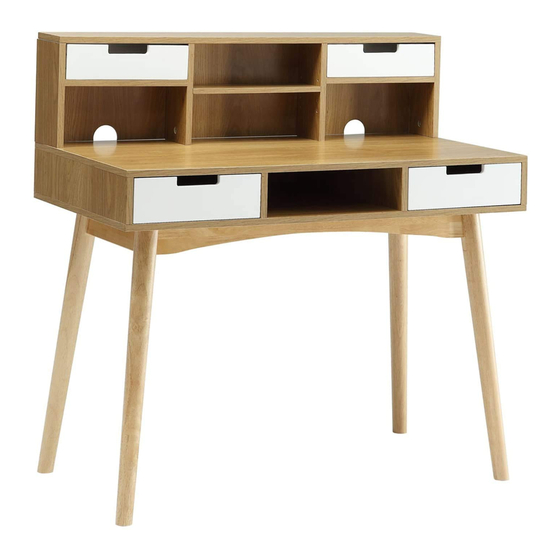

Desk with hutch

CONVENIENCE

Assembly Instructions

We have designed our furniture with you, the customer in mind. Our clear, easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　. Broken or missing Hardware?

　　. Need help with Assembly?

　　If you have any questions just call 1-800-468-6447 or email us at

　　parts@convenience-concepts.com

CONCEPTS

203536

Desk with Hutch

Table of Contents

Need help?

Do you have a question about the 203536 and is the answer not in the manual?

Page 1 CONVENIENCE CONCEPTS 203536 Desk with Hutch Assembly Instructions We have designed our furniture with you, the customer in mind. Our clear, easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 N x4 Cambolts Camlocks Pins Allen Wrench Bolts Washers Screws Assembling the unit with cams and wood dowels. Gently screw cam Lightly glue one end of the Connect to second panel Insert cam lock with dowel into the wood dowel and push into by inserting dowels into arrow pointing to hole.
Page 3 Step 1 1.Attach Panel ⑧ to panel 11 and 12 using camlock hardware as shown. 2.Attach remaining panel ⑧ to panel ⑦ and ⑨ as shown. 3.Refer to page 2 for camlock/cambolt instructions. 4.Gently tighten camlocks. Step 2 1.Attach hutch assemblies (x 2) to panel ⑤ using camlocks/cambolts as shown.
Page 4 Step 5 * Place Desktop ① on carpet or soft surface to avoid scratching. 1.Attach legs ⑧ to underside of Desktop ① using bolts and allen wrench. Step 6 1.Attach hutch assembly to desktop using camlocks and cambolts. 2.Gently tighten camlocks. 3.Enjoy.
