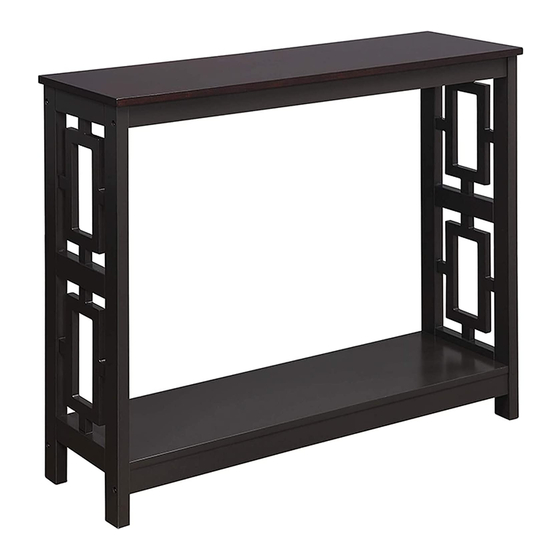

TOWN SQUARE CONSOLE TABLE
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
Broken or missing parts?
Need help with assembly?
Our Illinois based customer service team is ready to help with any problems or questions you may have.
Please give us a call (Toll Free) at 1-800-468-6447, or email us at parts@convenience-concepts.com.
Normal hours of Operation: M-F* 8am-4pm CST.
*Excludes Holidays
This product's warranty is only valid through authorized dealers.
203299
version:2020.7.1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for convenience concepts TOWN SQUARE 203299
Summary of Contents for convenience concepts TOWN SQUARE 203299
- Page 1 version:2020.7.1 TOWN SQUARE CONSOLE TABLE 203299 ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish . Feel confident that this will be a fun and rewarding project .
- Page 2 Hardware List Cam Bolt ( 12pcs ) Anti-Tip Bracket ( 2pcs ) Wood Dowel( 12pcs ) Allen Bolt( 8pcs ) LOCK Nut( 8pcs ) Small Screw Anchor (2pc) Screw (2pc) Stickers (8pc) Cam Lock (12pc) (2pc) Glue : For securing please apply to Allen Wrench (1pc) wood dowel first before inserting into panel .
- Page 3 Assembling the unit with camlocks and wood dowels. Arrow must face hole Gently screw cambolt Lightly glue one end of Lightly glue wood dowel and Screw the camlock into the threaded anchor. the wood dowel and tap connect to second panel by firmly into locked halfway into hole.
- Page 4 Step 2 *Assemble unit on carpet or flat surface. 1.Insert Cam Locks (J) into 2 Support Bars 2.Connect Support Bars to Bottom Panel by gently tightening Cam Locks (J). Step 3 1.Carefully connect Left Panel to Bottom Panel and Support Bars using Bolts (B) and Lock Nuts (C).
- Page 5 Step 4 1.Repeat Step 3 using Right panel Step 5 1.Insert Cam Locks (J) into Support Bars 2.Connect assembly to Top Panel by gently tightening Cam Locks (J). Page 5 of 7...
- Page 6 Step 6 1.If desired ,place Stickers (I) over screw holes. Step 7 1.Attach Anti-Tip Bracket (E) to unit using Small Screws (F). Page 6 of 7...
- Page 7 Step 8 1.Place unit against wall and mark Bracket Holes. 2.Drill holes in wall slightly smaller than anchor (G) and then tap anchor into holes. 3.Fasten unit to wall using Screw (H) through Bracket (E). 4.Enjoy. Page 7 of 7...
