convenience concepts Oxford Series Assembly Instructions

End table

CONVENIENCE

203085GY/203085CH/203085BE

Assembly Instructions

We have designed our furniture with you,the customer in mind.Our clear,easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　 Broken or missing Hardware?

　　 Need help with Assembly?

　　If you have any questions just call 1-800-468-6447 or email us at

　　parts@convenience-concepts.com

CONCEPTS

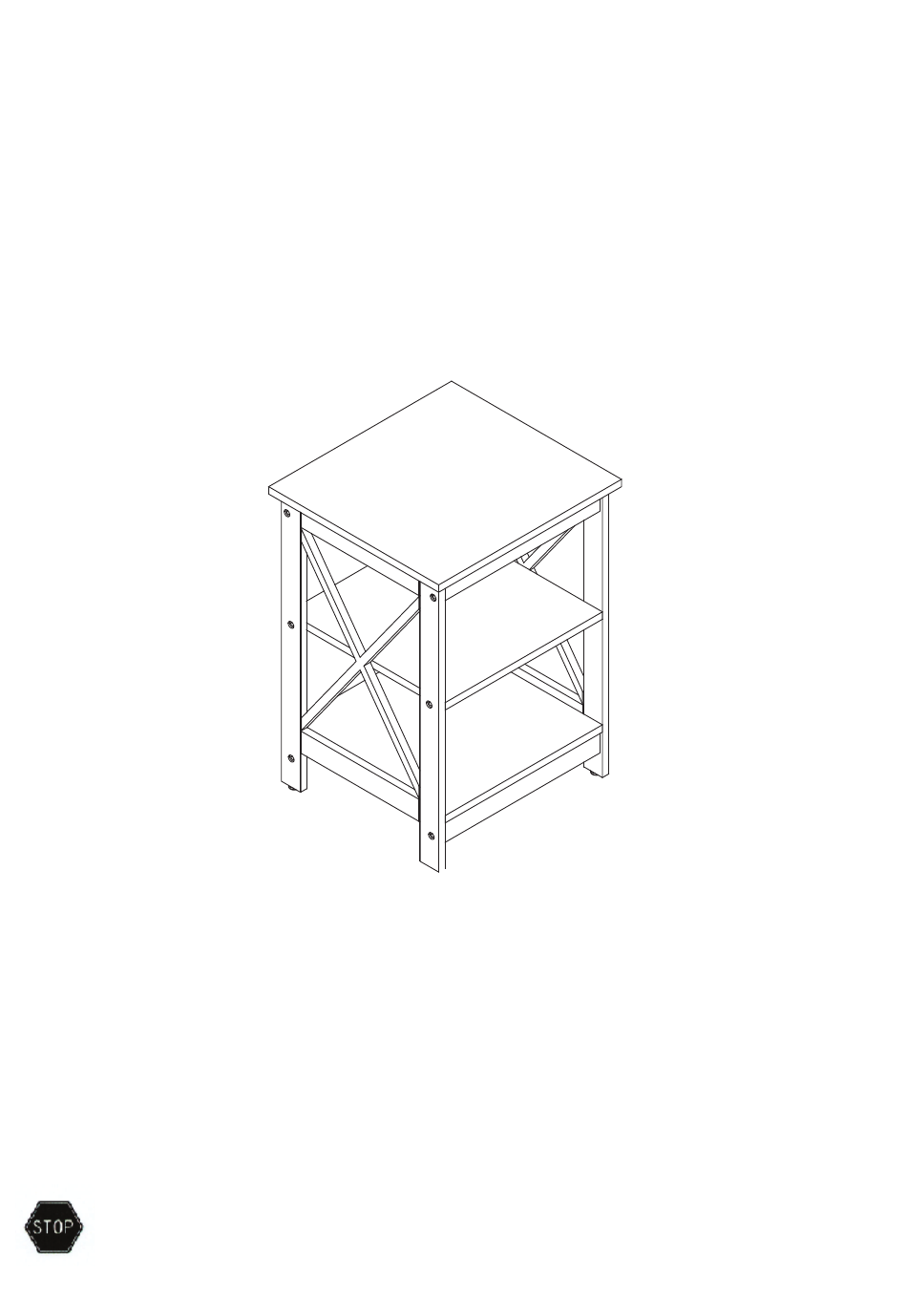

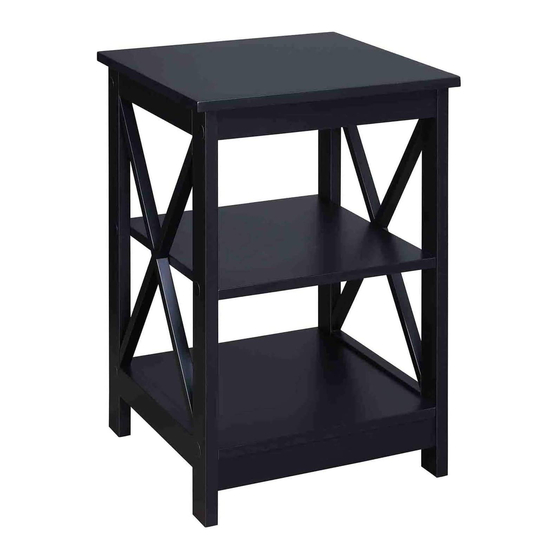

Oxford End Table

203085/203085W/203085ES

Table of Contents

Need help?

Do you have a question about the Oxford Series and is the answer not in the manual?

Page 1 CONVENIENCE CONCEPTS Oxford End Table 203085/203085W/203085ES 203085GY/203085CH/203085BE Assembly Instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 *Special Note：We recommend the use of a hand screwdriver to avoid the stripping of screw heads.* To p p an el Top Support Top Support Middle Panel Bottom Panel Left Panel gh t Panel Bottom Support 7 Bottom Support 7 12 x (A) 12 x (B) 12 x (C)
Page 3 1.Screw Cam Bolts (D) into Top Panel 2.Insert Cam Locks (F) into Top Support Bars Step 1 3.Connect Top Support Bars to Top Panel by gently tightening Cam Locks (F). 4 X (D) 4 X (F) NOTE: Assemble console on carpet or other soft surface to avoid scratching.
Page 4 Step 4 6 X (B) 1.Carefully connect Left Panel to Top ,middle ,and bottom panels using Bolts (B) and Lock Nuts (C). Step 5 6 X (B) 1.Repeat Step 4 using Right Panel Page 4 of 5...
Page 5 Step 6 12 X (E) 1.If desired, place Stickers (E) over screw holes. 2.Enjoy. Page 5 of 5...
