Assembly instructions
We have designed our furniture with you,the customer in mind.Our clear,easy to follow
step by step instructions will guide you through the project from start to finish.
Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of
furniture that will go together smoothly and give years of enjoyment.
Please do not return to the store
Broken or missing Hardware?
Neen help with Assembly?

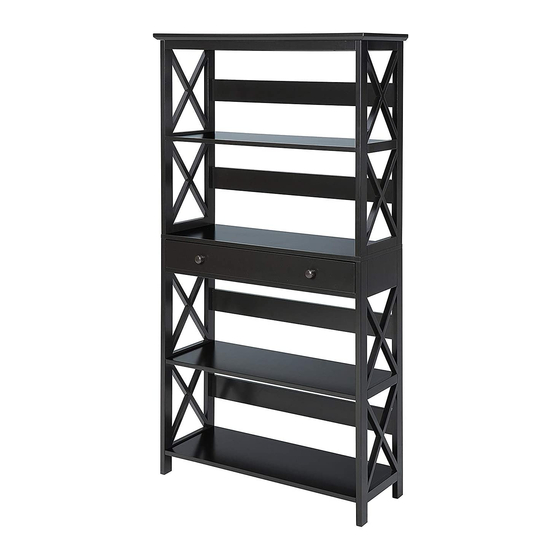

5 Tier Bookcase with Drawer
L
Advertisement
Table of Contents
Related Manuals for convenience concepts 5 Tier Bookcase with Drawer
Summary of Contents for convenience concepts 5 Tier Bookcase with Drawer

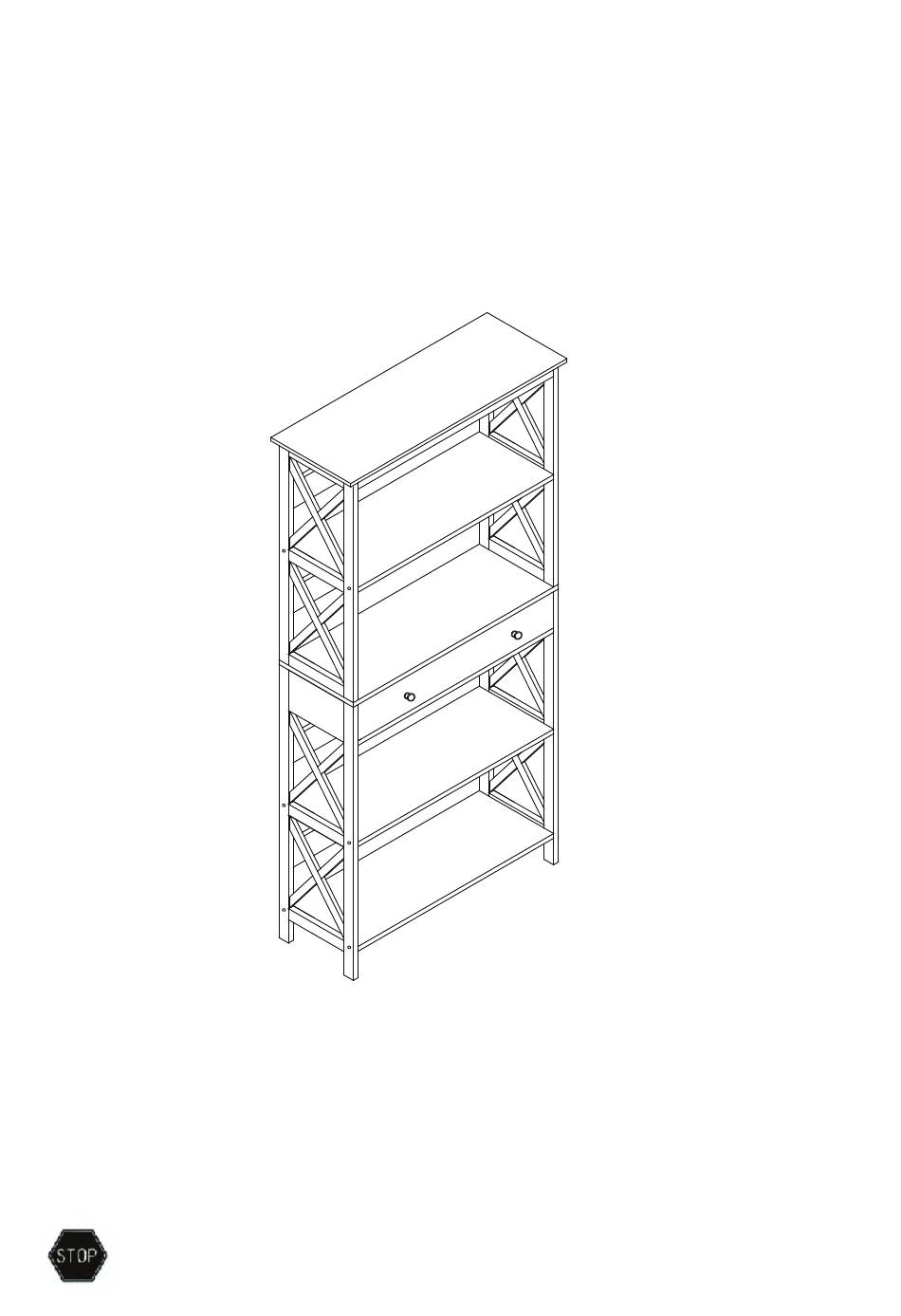

- Page 1 5 Tier Bookcase with Drawer Assembly instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
- Page 2 * Special Note:We recommend the use of a hand held screwdriver to avoid the stripping of screw heads* 4 3PCS 5 1PC 3 4PCS 2 2PCS 1 1PC Shelves Back Support Bar Middle Panel Top Support Bar Top Panel 6 1PC 7 1PC 8 1PC 9 1PC...
- Page 3 Step 1 NOTE: Assemble unit on carpet or other soft surface to avoid scratching. 1.Screw Cam Bolts (C) into Top Right Panel 2.Attach Shelf to Top Right Panel using Bolts (A) and Lock Nuts (B). 3.Attach Top Support Bars to Top Right Panel using Bolts (A) and Lock Nuts (B).
- Page 4 Step 3 1.Insert Wooden Dowels (F) into Middle Panel 2.Connect Top Panel and Middle Panel to assembly using Screws (E),as shown. 10 X (E) 4 X (F) Step 4 1.Attach Glider (N) to bottom left 9 using screw (J). 2.Attach Glider (O) to bottom right 8 using screw (J). 4 X (J) 1 X (N) 1 X (O)
- Page 5 1. Screw Cam bolts(C) into Bottom Right Panel 8 Step 5 2. Attach Shelves 4 to Bottom Right Panel 8 using Bolts(A) and Lock Nuts(B). 3. Attach Back Supoprt Bars 10 & 3 to assembly using Cam Bolts (C) and Cam Locks (D). 4 X (A) 4 X (B) 8 X (C)
- Page 6 Step 7 4 X (C) 4 X (D) 2 X (I) 2 X (J) 1.Screw Cam bolts (C) into Middle Panel 2.Connect the 2 assembles together using Cam Bolts (C) and Cam Locks (D). ip Bracket (I) to back of unit of using Screws (J). 3.Attach Anti-T Step 8 2 X (C)
- Page 7 Step 9 1. Carefully slide drawer into unit. Step 10 1.If desired place Stickers (L) over bolt holes. 2.Place unit into desired location and mark Anti-Tip bracket’s (I) holes with pencil and remove unit. . 3.Drill holes into wall slightly smaller then Anchors (K) and gently tap Anchors (K) into wall.
Need help?
Do you have a question about the 5 Tier Bookcase with Drawer and is the answer not in the manual?
Questions and answers
Step 4 attaching the gliders is unclear. The screws provided are short and won’t grab the wood inside prides hole. There are other holes that are smaller but not in the position on the panels 8 and 9 that coincide with the illustration. Help!
If the provided screws (J) are too short to attach the gliders (N and O) to the bottom panels (8 and 9), you can try the following solutions:
1. Check Alignment – Ensure the gliders are positioned correctly as per the instructions to avoid misalignment.
2. Use Longer Screws – If alignment is correct, find screws of the same diameter but slightly longer for a secure fit.
3. Pre-drill Holes – If the wood is too hard, pre-drill small pilot holes to help the screws go in more easily without stripping.
4. Contact Manufacturer – If replacement screws are needed, reach out for assistance as suggested in the manual.
This ensures the gliders are securely attached without damaging the furniture.
