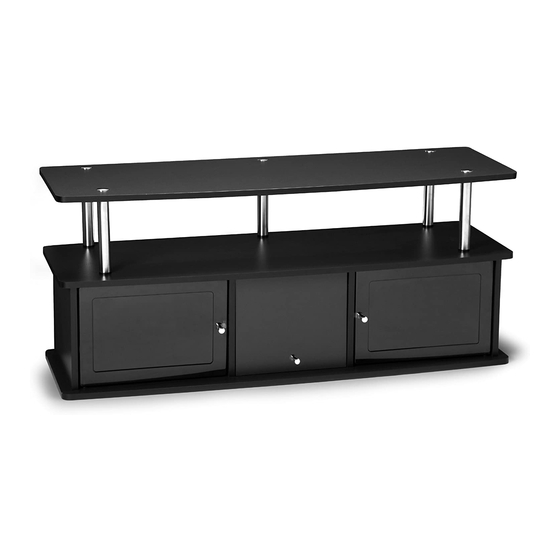

TV STAND WITH THREE CABINETS
50" MAXIMUM FLAT PANEL TELEVISION
151202E
151202 CH
ASSEMBLY INSTRUCTIONS
We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,
step by step instructions will guide you through the project from start to finish .
Feel confident that this will be a fun and rewarding project . The final product will be a quality
piece of furniture that will go together smoothly and give years of enjoyment .
Please do not return to the store
STOP
Broken or missing parts?
Need help with assembly?
If you have any questions just call 1-800-468-6447 or email us at
parts@convenience-concepts.com
80 LB. MAXIMUM CAPACITY
151202 GY
151202
151202 LO
151202 W
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for convenience concepts 151202E
Summary of Contents for convenience concepts 151202E
- Page 1 TV STAND WITH THREE CABINETS 50” MAXIMUM FLAT PANEL TELEVISION 80 LB. MAXIMUM CAPACITY 151202 151202E 151202 LO 151202 CH 151202 W 151202 GY ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish .
- Page 2 PAGE 2 OF 6 Hardware List Panel List Cam Bolt (16pcs) Top panel (1pc) Wood dowel (16pcs) Knob (3pcs) Spring insert (4pcs) ht divider (1pc) Side panel (2pcs) Magnet (2pcs) racket (2pcs) Middle panel (1pc) Knob screw (3pcs) Nails (15pcs) Metal tube (5pcs) End cap (10pcs) Metal pin (8pcs)
- Page 3 PAGE 3 OF 6 Step 1 *Refer to page 2 for dowel assembly .* Step 2 1. Connect Left Divider Panel and Right Divider Panel Bottom Panel by tightening camlocks already in panels. *Note: Slots must face inside when installing middle dividers .* Step 3 1.Connect side panels to Bottom Panel...
- Page 4 PAGE 4 OF 6 Step 4 2.Insert the Metal Pins (I) into pre-drilled slots on Door 3.Slide pins in Door into slots in Divider Panels 4.Insert Pins (I) into holes in Divider panels Step 5 1.Screw cambolts (A) and insert wood dowels (B) into middle panel *Refer to page 2 for dowel assembly .* Step 6 1.Connect middle Panel...
- Page 5 PAGE 5 OF 6 Step 7 1.Attach Metal Tubes to assembly using End Caps , as shown. Step 8 Metal Tubes 2.Attach using End Caps Step 9 1.Turn the unit around , and using nails (H) . connect back panel...
- Page 6 PAGE 6 OF 6 Step 10 1.Attach Knob(C)and Bracket(F)to plastic Door using knob Screw (G), as shown. 2.Insert spring inserts into doors. 3.Repeat for second door. Step 11 panel Step 12...
