Epever NPower Series User Manual

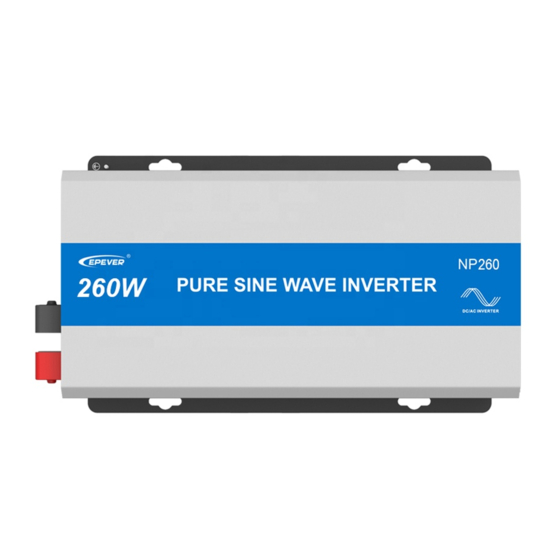

Pure sine wave inverter
Hide thumbs Also See for NPower Series:
Table of Contents

Advertisement

Quick Links

Download this manual

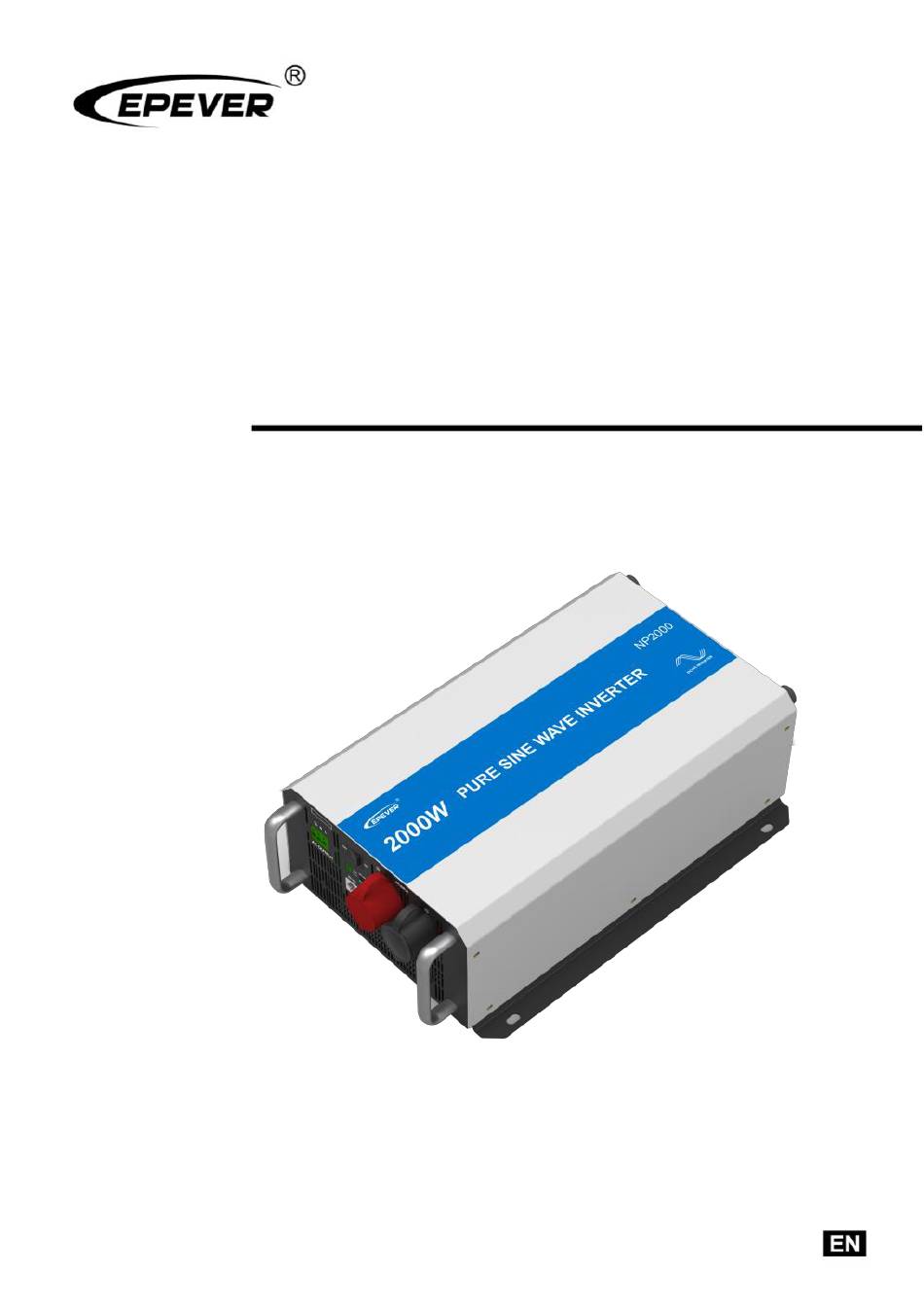

PURE SINE WAVE INVERTER
USER MANUAL
NP260; NP400；
NP600; NP800; NP1000
NP1200; NP1500; NP2000
NP2500; NP3000; NP3500
1
NP4000; NP5000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPower Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Epever NPower Series

Summary of Contents for Epever NPower Series

  • Page 1 PURE SINE WAVE INVERTER USER MANUAL NP260; NP400； NP600; NP800; NP1000 NP1200; NP1500; NP2000 NP2500; NP3000; NP3500 NP4000; NP5000...

  • Page 3: Table Of Contents

    Contents Important safety instructions 1 Overview 2 Characteristics 3 Naming rule 4 Connection diagram 5 Remote meter(Optional) 5.1 Appearance 5.2 Status display 5.3 Buttons 5.4 LCD interface 5.5 Settings 5.6 Error code 6 Installation 6.1 Attentions 6.2 Wire size and circuit breaker 6.3 Mounting 7 Protections 8 Troubleshooting...

  • Page 5: Important Safety Instructions

    Important safety instructions Please reserve this manual for future review. This manual contains all the instructions about safety, installation, and operation for the NPower series pure sine wave inverter (in the following, referred to as the inverter). Explanation of symbols To enable the user to use the product efficiently and ensure personal and property safety, please read the related words carefully when encountering the following symbols in the manual.
  • Page 6 When you receive the inverter, check whether there is any damage in transportation. Contact the transportation company, our local distributor, or our IMPORTANT company for any problem.  When placing or moving the inverter, follow the instructions in the manual. ...
  • Page 7 breaker's rated current should be twice the inverter rated input current.  DO NOT install the inverter close to the flooded lead-acid battery because the terminals' sparkle may ignite the hydrogen released by the battery.  The AC output terminal is only for the load connection. Do NOT connect it to another power source or utility.
  • Page 8  There are no serviceable parts inside. If any maintenance service is required, please contact our service personnel. Do NOT touch or open the shell after the inverter is powered off within ten minutes. WARNING 10. Safety cautions for inverter maintenance ...

  • Page 9: Overview

    1 Overview Based on a full-digital intelligent technology, the NPower series is a pure sine wave inverter, converting 12/24/48V DC power to 220/230V AC power. With advanced SPWM technology, voltage-current double closed-loop control, and completely isolated inverter technology, the NPower has high-quality electrical parameters and a stronger ability to resist impact load.

  • Page 10: Characteristics

    2 Characteristics  NP260/NP400/NP600/NP800/NP1000/NP1200  NP1500/NP2000/NP2500/NP3000/NP3500, NP4000-42...
  • Page 11  NP4000-22, NP5000-42 The appearance varies with different product models; please refer to the actual product appearance. CAUTION ❶ ❽ Ventilation fan Mode switch ❷ ❾ RS485 communication port Handle ❸ ❿ Working indicator(green) DC input terminal positive ❹ ⓫ Fault indicator(red) DC input terminal negative ❺...
  • Page 12 1) Heat sink temperature is higher than 45℃ 2) Internal temperature is higher than 45℃ 3) The output power is higher than the defined power，see the table below: Models Instruction NP260-11; NP260-12; NP260-21; NP260-22; NP400-12; NP400-22; NP600-11; NP600-12; NP600-21; Internal temperature is higher than 10℃, and the output NP600-22;...
  • Page 13 NP2500-11; NP2500-21; NP2500-41 The output power is lower than 750W NP1500-12; NP1500-22; NP2000-12; NP2000-22; NP2000-42; NP2500-12; NP2500-22; NP2500-42; NP3000-22; NP3000-42; The output power is lower than 800W NP3500-42; NP4000-22; NP5000-42 NP4000-42 The output power is lower than 1200W (2) The AC output port varies with different products. Please refer to chapter 3 Naming rule for the specific supported types.
  • Page 14 (5) LED indicator and buzzer Working indicator Fault indicator Buzzer Status Green super flashing Red off No beeps Standby Green on solid Red off No beeps Output is normal Green slowly flashing Red off Beeps Input under voltage Green fast flashing Red off Beeps Input over voltage...

  • Page 15: Naming Rule

    3 Naming rule Explanations for the AC output port: Suffix Instruction Figure Suffix Instruction Figure Chinese European dual-socket socket Australia American socket Socket Universal Terminal socket For detailed product model Vs. AC output port; please refer to the "NPower Model List". CAUTION...

  • Page 16: Connection Diagram

    4 Connection diagram  NP260/NP400/NP600/NP800/NP1000/NP1200  NP1500/NP2000/NP2500/NP3000/NP3500, NP4000-42...
  • Page 17  NP4000-22, NP5000-42 Connect the DC input directly to the battery port is recommended. DO NOT connect to the battery terminal of the controller. Otherwise, the charging frequency spikes of CAUTION the controller may lead to over-voltage protection of the inverter.

  • Page 18: Remote Meter(Optional)

    5 Remote meter(Optional) 5.1 Appearance ❶ ❹ LCD Working status indicator(Blue) DOWN/Enter button ❷ ❺ UP/Setting button Output ON/OFF button ❸ ❻ Fault indicator(red) Fixing screws  The display screen can be viewed clearly when the angle between the end-user's horizontal sight and the display screen is within 90°...

  • Page 19: Buttons

    Output voltage Blue OFF Red OFF Buzzer beeps abnormal 5.3 Buttons Click Move up In the real-time interface, press it for 2s to enter the setting interface. Press for 2s In the setting interface, press it for 2s to enter the parameters configuration interface.

  • Page 20: Error Code

    Display Parameters Default User define 220VAC 220VAC/ 230Vac ① Output voltage class 110VAC 110VAC/ 120VAC Output frequency class 50Hz 50Hz/60Hz ① LCD backlight time 30s/ 60s/100s(ON solid) 12V: 10.8V 12V: 10.5V~14.2V; step size 0.1V Low voltage 24V: 21.6V 24V: 21V-30.2V; step size 0.1V ②...

  • Page 21: Installation

    6 Installation 6.1 Attentions  Please read the manual carefully to get familiar with the installation steps before installation.  Be very careful when installing the batteries, especially flooded lead-acid batteries. Please wear eye protection, and have fresh water available to rinse if any contact with battery acid. ...
  • Page 22 NP600-12 16mm /5AWG RNB14-8 DC/2P-80A NP600-22 /9AWG RNB8-8 DC/2P-40A NP800-12 25mm /3AWG RNB22-6L DC/2P-125A NP1000-11 25mm /3AWG RNB22-6 DC/2P-125A NP1000-21 10mm /7AWG RNB14-6 DC/2P-63A NP1000-22 16mm /5AWG RNB14-6L DC/2P-63A NP1000-41 /9AWG RNB8-8 DC/2P—63A NP1000-42 /9AWG RNB8-8 DC/2P-63A NP1200-12 25mm /3AWG RNB22-6L DC/2P-125A NP1200-22...

  • Page 23: Mounting

     Wire and breaker selection for AC output Models Wire size Breaker NP260 /17AWG AC/2P—6A NP600 /17AWG AC/2P—6A NP800-*2 /17AWG AC/2P—6A NP1000-*1 1.5mm /15AWG AC/2P—10A NP1000-*2 /17AWG AC/2P—6A NP1200-*2 /17AWG AC/2P—6A NP1500-*2 /17AWG AC/2P—10A NP2000-*1 2.5mm /13AWG AC/2P—20A NP2000-*2 1.5mm /15AWG AC/2P—10A NP2500-*1...
  • Page 24  NP260/NP400/NP600/NP800/NP1000/NP1200  NP1500/NP2000/NP2500/NP3000/NP3500, NP4000-42  NP4000-22, NP5000-42...
  • Page 25 Step3：Wiring The AC equipment shall be determined by the continuous output power of the inverter. Still, the surge power must be lower than the instantaneous surge power of WARNING the inverter.  The switch of the inverter is off before wiring. ...
  • Page 26 ❷ Battery   NP1500~NP3500, NP4000-42 NP260~NP1200  NP4000-22, NP5000-42...
  • Page 27 ❸ AC loads   NP260~NP1200 NP1500~NP3500, NP4000-42  NP4000-22, NP5000-42...
  • Page 28 ❹ Accessories  NP260~NP1200  NP1500~NP3500, NP4000-42  NP4000-22, NP5000-42...
  • Page 29 Disconnect the system in the reverse order❹❸❷❶. CAUTION Step4：Power on the inverter ⑴ Switch on the input breaker or the fuse between the inverter and battery. ⑵ Turn on the power switch to start the inverter; the green indicator will be on state, and the AC output is normal.

  • Page 30: Protections

    7 Protections 1) Input reverse polarity protection The electronic circuit works to protect the inverter from damage during input reverse polarity. And the inverter will get right while the input is right. 2) Input voltage protection  The following rules must be followed when modifying the battery's input voltage parameters: Over voltage limiting voltage (16.2/32.2/64.4V) ≥...
  • Page 31 The output is OFF after 3s ① S=1.8P Red indicator slowly flashing (S: Output power; P : Rated power) Buzzer sounds ① When the overload protection is activated, the AC output will recover three times automatically (the first time delay 5s, the second time delays for 10s, and the third time delays for 15s). After then the AC output will not recover automatically after restarting the inverter.

  • Page 32: Troubleshooting

    8 Troubleshooting DO NOT try to repair or maintain the inverter by yourself; it may cause danger. WARNING Phenomenon Possible reasons Troubleshooting Green indicator slowly Suppose the DC input voltage goes lower DC input voltage under flashing than10.8/21.6/43.2V. Adjust the input voltage Buzzer sounds voltage to restore normally.

  • Page 33: Maintenance

    9 Maintenance The following inspections and maintenance tasks are recommended at least two times per year for good performance.  Make sure no block on airflow around the inverter. Clear up any dirt and fragments on the heat sink.  Check all the naked wires to ensure insulation is not damaged by sun exposure, frictional wear, dryness, insects or rats, etc.

  • Page 34: Specifications

    10 Specifications 110/120VAC output Item NP260-11 NP260-21 NP600-11 NP600-21 Continuous output power 260W@25℃, 200W@45℃ 600W@45℃ Surge power(5S) 400W 1200W 1000W Output voltage 110/120VAC (±5%) Output frequency 50/60Hz± 0.2% Output wave Pure Sine Wave THD≤5%(Resistive load) Output distortion THD 0.2~1(Load power ≤ Continuous output power) Load power factor Rated input voltage 12VDC...
  • Page 35 Mounting size 220×193mm 260×220mm Φ7mm Φ9mm Mounting hole size Net Weight 6.5kg 6.4kg 10.8kg 10.2kg ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ② It is measured in the condition of continuous output power and rated input voltage. (25℃) ③...
  • Page 36 Mechanical parameters Input terminal Dimension (L×W×H) 511×268×139mm 452x268x139 Mounting size 300×245mm 270x245 Φ9mm Mounting hole size Net Weight 16.1kg 16.0kg 14.0kg ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ②...
  • Page 37 ＜1.9A ＜0.5A ＜0.3A No-load current ＜0.6W@12V ＜0.6W@24V ＜1.8W@48V Static Loss RS485 com. port 5VDC/300mA(Non-isolated) 5VDC/300mA(Non-isolated) 5VDC/200mA(Isolated) Mechanical parameters Input terminal Dimension (L×W×H) 554×393×175mm 486×313×145mm Mounting size 350×372mm 350×292mm Φ9mm Mounting hole size Net Weight 30.3kg 28.1kg 21.2kg ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ②...
  • Page 38 ③ Max. output efficiency 90.9%(500W) 94%(500W) 94%(800W) Surge current when 20A@25℃,V =12V 20A@25℃,V =24V 20A @25℃,V =48V power on ＜2.1A ＜0.6A ＜0.5A No-load current ＜0.6W@12V ＜0.6W@24V ＜1.8W@48V Static Loss RS485 com. port 5VDC/300mA(Non-isolated) 5VDC/300mA(Non-isolated) 5VDC/200mA(Isolated) Mechanical parameters Input terminal Dimension (L×W×H) 584×393×175mm 604×393×175mm 549×328×175mm...
  • Page 39 Rated input voltage 12VDC 24VDC 12VDC 24VDC Input voltage range 10.8~16.0VDC 21.6~32.0VDC 10.8~16.0VDC 21.6~32.0VDC Output efficiency of 80% ① rated power ② Max. rated efficiency ③ Max. output efficiency 89%(80W) 90%(100W) 90%(100W) 91%(100W) Surge current when 20A@25℃,V =12V 20A@25℃,V =24V 20A@25℃,V =12V 20A@25℃,V...
  • Page 40 Output frequency 50/60Hz± 0.2% Output wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(Load power ≤ Continuous output power) Load power factor Rated input voltage 12VDC 24VDC 12VDC 24VDC 48VDC Input voltage range 10.8~16.0VDC 21.6~32.0VDC 10.8~16.0VDC 21.6~32.0VDC 43.2~64.0VDC Output efficiency of 80% 90.8% ①...
  • Page 41 Item NP1200-12 NP1200-22 NP1500-12 NP1500-22 1500W@25℃, Continuous output power 1200W@25℃, 1000W@45℃ 1500W@45℃ 1300W@45℃ Surge power(5S) 2000W 3000W Output voltage 220/230VAC (-8%~+3%) 220/230VAC (± 3%) 220/230VAC (-5%~+3%) 220/230VAC (± 3%) Output frequency 50/60Hz± 0.2% Output wave Pure Sine Wave THD≤3%(Resistive load) THD≤3%(Resistive load) THD≤5%(Resistive load) THD≤3%(Resistive load)
  • Page 42 ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ② It is measured in the condition of continuous output power and rated input voltage. (25℃) ③...
  • Page 43 Mounting size 350×372mm 350×292mm Φ9mm Mounting hole size Net Weight 29.8kg 27.6kg 20.7kg ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ② It is measured in the condition of continuous output power and rated input voltage. (25℃) ③...
  • Page 44 Mechanical parameters Input terminal Dimension (L×W×H) 584×393×175mm 604×393×175mm 549×328×175mm Mounting size 350×372mm 350×372mm 350×307mm Φ9mm Mounting hole size Net Weight 32.0kg 32.2kg 25.5kg ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ②...
  • Page 45 ＜0.8A ＜0.5A ＜0.5A No-load current ＜0.6W@24V ＜1.8W@48V ＜1.8W@48V Static Loss RS485 com. port 5VDC/300mA(Non-isolated) 5VDC/200mA(Isolated) 5VDC/200mA(Isolated) Mechanical parameters Input terminal Dimension (L×W×H) 649×393×175mm 599×328×175mm 579×353×175mm Mounting size 350×372mm 350×307mm 350×332mm Φ9mm Mounting hole size Net Weight 34.0kg 28.4kg 32.2kg ① It means the output efficiency when the load power is 80% of the continuous output power under the rated DC input voltage. (25℃) ②...
  • Page 46 ③ Max. output efficiency 93%(1400W) 94%(1000W) 94%(1400W) Surge current when 20A@25℃,V =24V 30A@25℃,V =48V 30A@25℃,V =48V power on ＜2.5A ＜0.5A ＜0.5A No-load current ＜0.6W@24V ＜1.8W@48V ＜1.8W@48V Static Loss RS485 com. port 5VDC/300mA(Non-isolated) 5VDC/200mA(Isolated) 5VDC/200mA(Isolated) Mechanical parameters Input terminal M8(4P) M8(2P) Dimension (L×W×H) 660×435×210mm 604×393×175mm...

  • Page 47: Annexⅰ Disclaimer

    AnnexⅠ Disclaimer The warranty does not apply to the following conditions:  Damage is caused by improper use or an inappropriate environment (humid, salt spray, corrosion, greasy, flammable, explosive, dust accumulative, or other severe environments).  The actual current/voltage/power exceeds the limit value of the inverter. ...
  • Page 48 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Tel: +86-752-3889706 E-mail: info@epever.com Website: www.epever.com...
