- Page 1 PORTABLE SOLAR POWER SYSTEM USER MANUAL LD150S-N1/N1R LD150S-N2/N2R LD150S-N3/N3S LD150S-N4/N4R - 1 -...
-
Page 3: Table Of Contents
7.3Lithium battery parameters ............12 7.4 Lithium battery control voltage parameters .......13 8. Utility charge function .................13 9. Operation instruction ................14 9.1 LD150S-N1/N1R operation instruction ........14 9.2 LD150S-N2/N2R operation instruction ........14 9.3 LD150S-N3/N3S operation instruction ........15 9.4 LD150S-N4/N4R operation instruction ........15... - Page 4 10. Protection ..................16 10.1 LD150S- N1/N1R/N2/N2R/N4/N4R/N4S protection ....16 10.2 LD150S- N3/N3S protection ............16 11. Troubleshooting ................17 11.1 LD150S-N1/N1R/N2/N2R troubleshooting ......17 11.2 LD150S-N3/N3S troubleshooting ..........18 11.3 LD150S-N4/N4R troubleshooting ..........19 12. Technical Specifications ..............20 13. Disclaimer ..................22 Annex I Mechanical Dimension Diagram ..........23...
-
Page 5: Important Safety Instructions
Important Safety Instructions Please reserve this manual for future review. This manual contains all the instructions about safety, installation, and operation for the EZPOWER series portable solar power system (hereinafter referred to as the solar system). Read all the instructions and warnings carefully before installation. ... -
Page 6: Product Overview

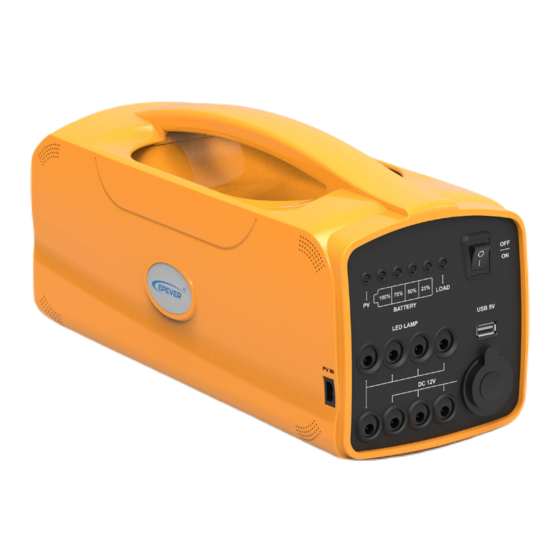

1. Product Overview EZPower DC portable system is a functional off-grid power supply for home and business use, which includes LED light, USB port,cigarette lighter, FM radio in rich interface connection to fit the customer demands. It’s also an efficient energy solution nowadays. Features：... -
Page 7: System Composition
2.System composition Parts names Specifications Note Max. PV open circuit voltage:Voc＜ 30Vdc PV array PV power:W＜150Wp(except N4≤60Wp) PV array with stent Solar charge Input voltage range:12Vdc controller Charge current:10A except N4≤5A Utility input voltage: 220/230Vac Utility charge Portable utility Utility input frequency: 50/60Hz module solar charge... -
Page 8: Name Definition
② USB charge cable ③ DC output cable 3. Name definition 4.Classification Model Picture Instruction 8-way DC12V3A, max. output is120W LD150S-N1 1-wayUSB5V2.1A output 1pcs DC12V10A cigarette lighter 8-wayDC12V3A, max. output is 120W 1-way USB5V2.1A output LD150S-N1R 1pcs DC12V10A cigarette lighter Silver radio... - Page 9 8-wayDC12V3A, max. output is LD150S-N2 120W 2-wayUSB5V2.1A output 8-wayDC12V3A, max. output is 120W LD150S-N2R 2-wayUSB5V2.1A output Silver radio 4-wayDC12V3A, max. output is 120W LD150S-N3 2-wayUSB5V2.1Aoutput 1pcs DC12V1W LED lamp 4-way DC12V3A, max. output is 120W 2-way USB5V2.1Aoutput LD150S-N3S 1pcs DC12V1W LED lamp 1-way utility input, AC220V,3A±...
-
Page 10: Portable Solar Power Supply
5. Portable solar power supply 5.1 LD150S-N1/N1R ❶ ❻ Cigarette lighterport(DC12V10A) PV Charge indicator ❷ ❼ 8-way DC input(12VDC/3A) Battery capacity indicator ❸ ❽ PV input charge port Load status indicator ❹ System switch ❾ Silver radio with remote control meter ❺... -
Page 11: Ld150S-N3/N3S
1）Characteristicsinstruction ❶ ❺ 2-way USB charge port(5VDC/2.1A) PV Charge indicator ❷ ❻ 8-way DC input port(12VDC/3A) Battery capacity indicator ❸ ❼ PV input charge port Load status indicator ❹ ❽ Silver radio with remote control meter System switch 2）Indicatorinstruction Indicator Color Status Instruction... -
Page 12: Ld150S-N4/N4R
1）Characteristicsinstruction ❶ ❼ PV Charge indicator LED lamp switch ❷ ❽ System Status indicator LED lamp(12VDC/1W) ❸ Nixie tube display battery capacity ❾ 2-way USB charge port (5VDC/2.1A) ❹ ❿ System switch DC output switch ❺ ➀ PV input port 4-way DC input port(12VDC/3A) ❻... - Page 13 1）Characteristicsinstruction ❶ ❻ PV input port Battery capacity indicator ❷ ❼ PV Charge indicator 4-way DC input port(12VDC/3A) ❸ ❽ 2-way USB charge port (5VDC/2.1A) Load status indicator ❹ ❾ DC output switch System fuse(10A/32VDC)） ❺ ❿ Silver radio with remote control meter System switch 2）PV charge indicator and load indicatorinstruction Color...
-
Page 14: Radio Instruction
5.5Radio instruction 1）Radio function ❶ Radio antenna ❷ LCD(time and mode display),AUX external audio file playback, FM radio ❸ USB/U disk broadcast,U disk support up to 32G ❹ MODEmodel ❺ ▶▶I/V+ Down/Volume+ ❻ ▶▶IIPause ❼ I◀◀/V- Up/Volume- ❽ OFF/ON power switch ❾... - Page 15 Setting the time via the remote meter Operation: Press the button to display the time status; Long press the button, the hour of the time is flashing; Press the button to change the hour of the time; Press the button to change the minute of the time; Press the button to change the minute of the time;...
-
Page 16: Pv Array Requirement
Do NOT throw the wasted battery away randomly,and send it to the battery recycling department. 7.2 Lithium battery requirement Lithium battery capacity: 10～38AH/12V; Lithium battery type:Li(NiCoMn)O or LiFePO4 selectable; Inside lithium battery size:222mm×120×70mm(L*W*H) 7.3Lithium battery parameters Model Battery type Battery capacity LD150S-N1/N1R Li(NiCoMn)O 16Ah/38Ah LD150S-N2/N2R Li(NiCoMn)O 10Ah/16Ah LD150S-N3/N3S LiFePO4 18Ah... -
Page 17: Lithium Battery Control Voltage Parameters
LD150S-N4/N4R LiFePO4 12Ah 7.4 Lithium battery control voltage parameters control voltage parameters LiFePO4 Li(NiCoMn)O Over Voltage Disconnect Voltage 15.6V 12.9V Over Voltage Reconnect Voltage 14.5V Equalize Charging Voltage 14.5V 12.3V Boost Charging Voltage 14.5V 12.3V Float Charging Voltage 13.8V 11.8V Boost Voltage Reconnect Voltage 13.2V 12.1V... -
Page 18: Operation Instruction
9.Operation instruction 9.1LD150S-N1/N1R operation instruction ❶ Connect the PV array; ❷ Connect the DC load; ❸Turn on the system switch, battery capacity levelindicatorand PV indicator flash once time, after the battery capacity level, PVand load indicator enter the actual status. ❹Power on the radio, pull out the antenna to receive the programs;... -
Page 19: Ld150S-N3/N3S Operation Instruction
9.3LD150S-N3/N3S operation instruction ❶ Connect the PV array; ❷ Connect the utility; ❸ Connect the DC load; ❹ Turn on the system switch; ❺ Turn on the DC load switch; ❻Turn on the lamp switch(according to the requirement). 9.4LD150S-N4/N4R operation instruction ❶... -
Page 20: Protection
10. Protection 10.1 LD150S-N1/N1R/N2/N2R/N4/N4R/N4Sprotection When the polarity of the PV array is reversed, the device may not PV Reverse be damaged and can continue to operate normally after the Polarity polarity is corrected. Fully protected against battery reverse polarity; no damage will LithiumBattery occur to the battery. -
Page 21: Troubleshooting
11. Troubleshooting 11.1LD150S-N1/N1R/N2/N2Rtroubleshooting Faults Faults phenomenon Troubleshooting Battery or PV is abnormal. Firstly, check the connection and OFF/ON power switch is status of the battery; second, ON,PV,BATTERY,LOAD System no power check the connection and status indicator OFF of the PV.Finally, check the ON/OFF switch. -
Page 22: Ld150S-N3/N3S Troubleshooting
11.2 LD150S-N3/N3S troubleshooting Faults Faults phenomenon Troubleshooting Turn on the system switch and System no power DC load switch, the system Charge the battery isn’t working. The buzzer rang, Nixie tube System low display The utility or PV charge the battery voltage 5/4/3/2/1,POWER/FAULT red... -
Page 23: Ld150S-N4/N4R Troubleshooting
will recover output after troubleshooting. 11.3 LD150S-N4/N4R troubleshooting Faults Faults phenomenon Troubleshooting Battery voltage is low, please BATTERY 25～100% indicator System no power charge the battery. PV is not connected or the PV no charging PV indicator OFF voltage is low, check connection. LOAD indicator OFF,PV and Troubleshoot the load short circuit BATTERY indicator on solid,... -
Page 24: Technical Specifications
12. Technical Specifications Electrical Parameters Model LD150S-N1 LD150S- N1R System rated voltage 12VDC ＜30V Max. PV Open Circuit Voltage ≤150Wp PV array power Lithium battery type Li(NiCoMn)O Lithium battery capacity 16/38AH Charge way Max. charge current 8-way DC12V3A DC output... - Page 25 USB output port 2-way 5VDC/2.1A Emergency lamp LED lamp DC12V/1W Self-consumption 24.8mA —— Utility output voltage range 176VAC〜264VAC —— Utility charge current 3A±0.3A Weight About 3.4kg About 3.5kg Model LD150S-N4 LD150S- N4R System rated voltage 12VDC ＜30V Max. PV Open Circuit Voltage ≤60Wp PV array power Lithium battery type...
-
Page 26: Disclaimer
Disclaimer The warranty does not apply under the following conditions: Damage caused by improper use or use ofan inappropriate environment. Battery voltage/current/power exceeds the input voltage limit of the device. Damage caused by the working environment temperature exceeds the rated range. -
Page 27: Annex Imechanical Dimension Diagram
Annex IMechanical Dimension Diagram (Unit: mm) Any changes without prior notice! Version number: 1.0... - Page 28 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Beijing Tel:+86-10-82894896/82894112 Huizhou Tel: +86-752-3889706 E-mail:info@epsolarpv.com Website:www.epsolarpv.com www.epever.com...
