Epever NPower Series User Manual

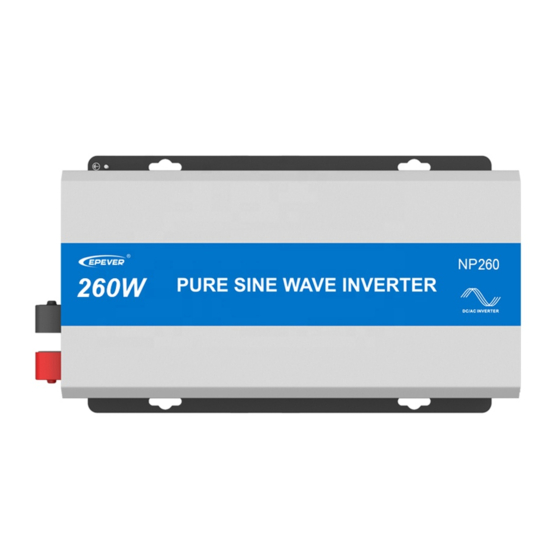

Pure sine wave inverter
Hide thumbs Also See for NPower Series:
Table of Contents

Advertisement

Quick Links

NPower Series
——Pure Sine Wave Inverter
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPower Series and is the answer not in the manual?

Questions and answers

Related Manuals for Epever NPower Series

Summary of Contents for Epever NPower Series

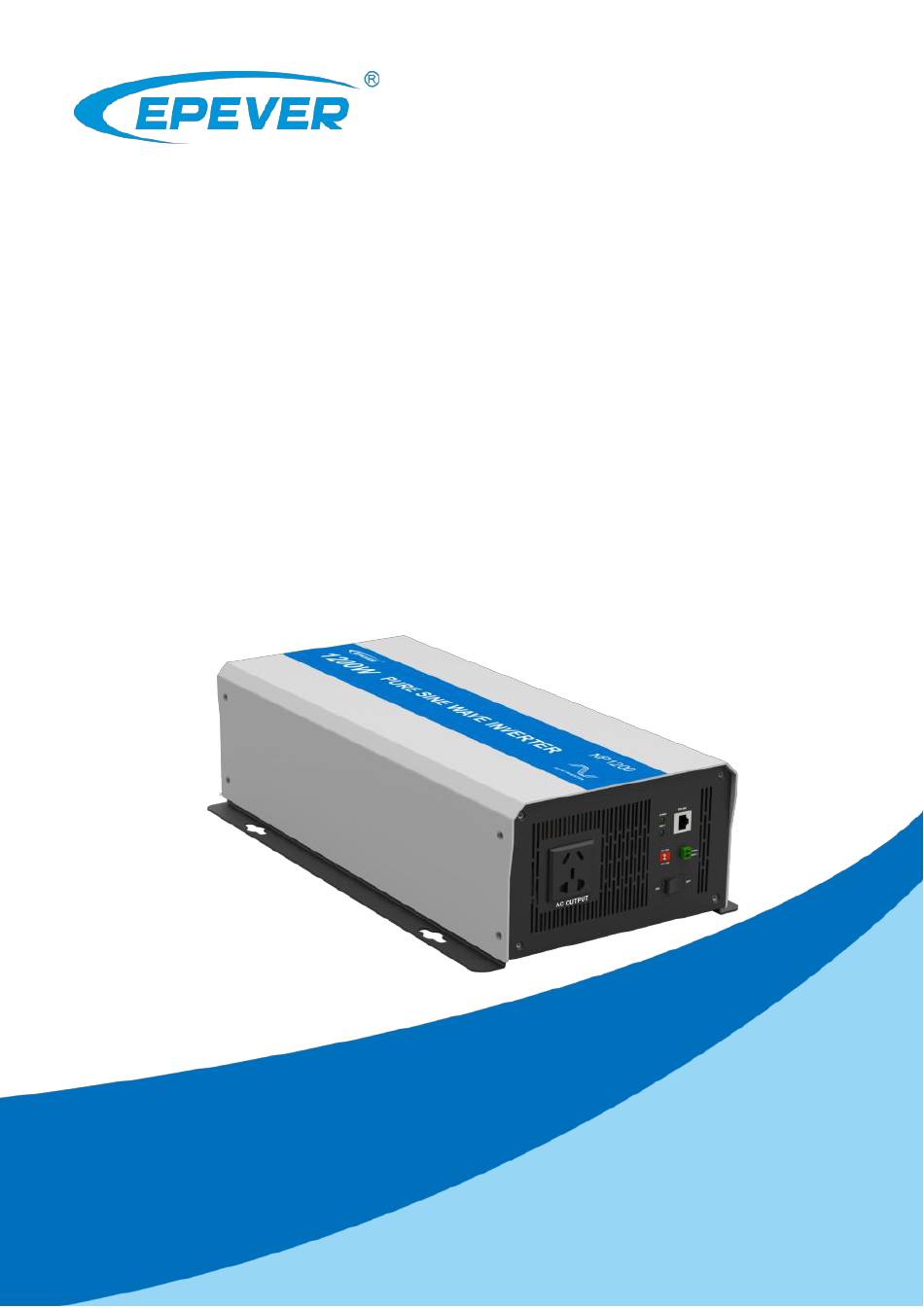

  • Page 1 NPower Series ——Pure Sine Wave Inverter User Manual...

  • Page 3: Table Of Contents

    Contents Important Safety Instructions ........... 1 1. Overview ..............6 2.Characteristics ............. 8 3.Designations of models ..........13 4. Schematic diagram for connections ......14 5.Installation instructions ..........15 5.1 General installation notes ........15 5.2Wire size &breaker ..........15 5.3 Mounting ............

  • Page 4: Important Safety Instructions

    Important Safety Instructions Please reserve this manual for future review. This manual contains all the instructions about safety, installation, and operation for NPower series pure sine wave inverter (hereinafter referred to as the inverter). Explanation of symbols To enable the user to use the product efficiently, as well as to ensure personal and property safety, this manual provides related information and emphasize the following symbols.
  • Page 5 2. Requirements for professional and technical personnel  Professionally trained;  Familiar with related safety specification for the electrical system;  Read the entire user manual to get related safety cautions. 3. Professional and technical personnel is allowed to do ...
  • Page 6 5. Safety cautions for mechanical installation WARNING: Before installation, must make sure the inverter has no electrical connection. WARNING: Ensure the heat dissipation space for the inverter installation, and do not install the inverter in humid, greasy, flammable, explosive, dust accumulative or other severe environments. 6.
  • Page 7 7.Safety cautions for inverter operation WARNING HOT SURFACE: Do not touch it when the inverter is working, its surface may become very hot. Keep away from the material or device which may suffer from high temperature. CAUTION: Do not open the inverter to operate when it is working. WARNING: The AC output with high voltage during the inverter operation, so do NOT touch the connection point, it may cause danger.
  • Page 8 10. Safety cautions for inverter maintenance  Testing equipment is recommended to check the inverter without voltage or current;  When conducting electrical connection and maintenance work, must post temporary warning sign or put up barriers, to prevent unrelated personnel from entering the electrical connection or maintenance area.

  • Page 9: Overview

    1. Overview NPower series is a kind of pure sine wave inverter which can convert 12/24/48VDC to 220/230Vac.It is based on full digital and intelligent design, it adopts the advanced SPWM technology, voltage and current double closed-loop controlled and completely isolated inverter technology, such as to ensure the product with high quality electrical parameters, the stronger ability to resist impact load, the input surge prevention design at the same time.meet...
  • Page 10  OperRS485 port can connect the communication module, realize remote start/stop inverter and monitor the running status via the APP or PC software. Set the input low voltage and low voltage reconnect voltage via the APP or PC software  Set the inverter’s ID via the APP or PC software to monitor several inverters.

  • Page 11: Characteristics

    2.Characteristics 1)NP260～NP1200 2)NP1500～NP3500...
  • Page 12 ❶ ❽ Ventilation fan Mode switch ❷ ❾ Handle RS485 communication port ❸ ❿ DC input terminal positive Working indicator(green) ❹ ➀ DC input terminal negative Fault indicator(red) ❺ ➁ AC outlet Grounding terminal ❻ ➂ External switch connection point Mounting hole size ❼...
  • Page 13 NP600-12(X); NP600-22(X) The output power is lower than 200W NP800-12(X) The output power is lower than 300W NP1000-22(X) The output power is lower than 400W NP1200-12(X); NP1200-22(X) The output power is lower than 500W NP2000-42(T) NP2500-22(T) The output power is lower than 800W NP3000-22(T);NP3000-42(T) NP3500-42(T) “X”...
  • Page 14 Australia/New Zealand: European: Terminal： (3)Mode switch...
  • Page 15 When the switch of number 1 is on the 230V side, the output voltage is 230VAC, otherwise is 220VAC. When the switch of number 2 is on the 60Hz side, the output frequency is 60Hz, otherwise is 50Hz. CAUTION: Both the output frequency and voltage change availability after restarting the inverter.

  • Page 16: Designations Of Models

    3.Designations of models Input rated Output rated Models Output power voltage voltage NP260-12(X) 12VDC 260W NP260-22(X) 24VDC NP400-12(X) 12VDC 400W NP400-22(X) 24VDC NP600-12(X) 12VDC 600W NP600-22(X) 24VDC NP800-12(X) 12VDC 800W NP1000-22(X) 24VDC 220/230VAC 1000W NP1200-12(X) 12VDC 1200W NP1200-22(X) 24VDC NP2000-42(T) 48VDC 2000W NP2500-22(T)

  • Page 17: Schematic Diagram For Connections

    4. Schematic diagram for connections 1)NP260～NP1200 2)NP1500～NP3500 Connect the DC input directly to the battery port is CAUTION： recommended,DO NOT connect to the battery terminal of the controller. Otherwise, the charging frequency spikes of the controller may lead to over-voltage protection of the inverter.

  • Page 18: Installation Instructions

    5.Installation instructions 5.1 General installation notes  Please read the manual carefully to get familiar with the installation steps before installation.  Be very careful when installing the batteries, especially flooded lead-acid battery. Please wear eye protection, and have fresh water available to rinse if any contact with battery acid.

  • Page 19: Mounting

    NP400-12(X) 10mm /8AWG RNB8-6S DC/2P—63A NP400-22(X) /10AWG RNB5.5-6 DC/2P—32A NP600-12(X) 16mm /6AWG RNB14-8 DC/2P—80A NP600-22(X) /10AWG RNB8-8 DC/2P—40A NP800-12(X) 25mm /4AWG RNB22-6L DC/2P—125A NP1000-22(X) 16mm /6AWG RNB14-6L DC/2P—63A NP1200-12(X) 25mm /4AWG RNB22-6L DC/2P—125A NP1200-22(X) 16mm /6AWG RNB14-6L DC/2P—63A NP2000-42(T) 16mm /6AWG RNB14-10 DC/2P—63A...
  • Page 20 Important:The inverter shall be installed in a place with sufficient air flow through the dissipation pad of the inverter and a minimum clearance of 150mm from the upper and lower edges of inverter to ensure natural thermal convection. CAUTION:The inverter shall be cooling through housing if installed in a closed box.
  • Page 21 CAUTION:A fuse which current is 1.25 to 2 times the rated current of the inverter, must be installed on the battery side with a distance from the battery not greater than 150mm. Wiring order： ❶Ground ❷Battery...
  • Page 22 ❸AC loads ❹Accessories CAUTION: Disconnect the system in the reverse order❹❸❷❶.
  • Page 23 Step4：Power on the inverter ⑴ Switch on the input breaker or the fuse between inverter and battery. ⑵ Turn on the power swith to start the inverter, green indicator on solid and the AC output is normal. ⑶ Turn on the load one by one, and check the operation status of both inverter and load.

  • Page 24: Protection

    6. Protection Input reverse polarity protection The electronic circuit works to protect the inverter from damage while input reverse polarity.And the inverter will get right while the input is right. 2) Input overvoltage protection  Input overvoltage protection Models Protection value Default User-defined Phenomenon...
  • Page 25  Low voltage recover protection Models Recover value Default User-defined Phenomenon Ui≥12.5V NP***-1* 12.5V 12～13V Green indicator on NP***-2* Ui≥25V 24～26V solid NP***-4* Ui≥50V 48～52V Output is ON Overload protection The output is OFF after the 60s ① S=1.25P Red indicator slowly flashing (S:Output power;P : Rated power) Buzzer sounds...

  • Page 26: Troubleshooting

    7. Troubleshooting WARNING DO NOT try to repair or maintain the inverter by yourself, it may cause danger. Phenomenon Possible reasons Troubleshooting Measure the DC input voltage if the voltage is lower Green indicator slowly flashing DC input voltage than10.8/21.6/43.2V. Adjust the input voltage to Buzzer sounds under voltage restore normally.

  • Page 27: Maintenance

    8. Maintenance The following inspections and maintenance tasks are recommended at least two times per year for the best performance.  Make sure no block on air-flow around the inverter. Clear up any dirt and fragments on the radiator.  Check all the naked wires to make sure insulation is not damaged for serious solarization.

  • Page 28: Technical Specifications

    9. Technical Specifications Item NP260-12 NP260-22 Output Continuous 260W@25℃；260W@45℃ Power Surge Power 400W Output Voltage 220/230VAC(-8%~+3%) 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 12VDC 24VDC Input voltage range...
  • Page 29 Item NP400-12 NP400-22 Output Continuous 400W@25℃；350W@45℃ Power Surge Power 700W Output Voltage 220/230VAC(-8%~+3%) 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 12VDC 24VDC Input voltage range 10.8~16VDC 21.6~32VDC...
  • Page 30 Item NP600-12 NP600-22 Output Continuous 600W@25℃； 500W@45℃ Power Surge Power 1000W Output Voltage 220/230VAC(-8%~+3%) 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 12VDC 24VDC Input voltage range 10.8~16VDC...
  • Page 31 Item NP800-12 Output Continuous 800W@25℃；800W@45℃ Power Surge Power 1600W Output Voltage 220/230VAC (-8%~+3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 12VDC Input voltage range 10.8~16VDC output efficiency of 80% ①...
  • Page 32 Item NP1000-22 Output Continuous 1000W@25℃；800W@45℃ Power Surge Power 1600W Output Voltage 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 24VDC Input voltage range 21.6~32VDC output efficiency of 80% ①...
  • Page 33 Item NP1200-12 NP1200-22 Output Continuous 1200W@25℃；1000W@45℃ Power Surge Power 2000W Output Voltage 220/230VAC(-8%~+3%) 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 12VDC 24VDC Input voltage range 10.8~16VDC 21.6~32VDC...
  • Page 34 Item NP2000-42 Output Continuous 2000W@25℃；2000W@45℃ Power Surge Power 4000W Output Voltage 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 48VDC Input voltage range 43.2～64VDC output efficiency of ①...
  • Page 35 Item NP2500-22 Output Continuous 2500W@25℃；2500W@45℃ Power Surge Power 5000W Output Voltage 220/230VAC(-6%~+3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 24VDC Input voltage range 21.6～32VDC output efficiency of ①...
  • Page 36 Item NP3000-22 NP3000-42 Output Continuous 3000W@25℃；3000W@45℃ Power Surge Power 6000W Output Voltage 220/230VAC(-5%~+3%) 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 24VDC 48VDC Input voltage range 21.6～32VDC 43.2～64VDC...
  • Page 37 Item NP3500-42 Output Continuous 3500W@25℃；3500W@45℃ Power Surge Power 7000W Output Voltage 220/230VAC(± 3%) Output Frequency 50/60± 0.2% Output Wave Pure Sine Wave THD≤3%(Resistive load) Output distortion THD 0.2~1(VA≤Continuous output power) Load Power Factor Rated input voltage 48VDC Input voltage range 43.2～64VDC output efficiency of ①...
  • Page 38  Environmental parameters Working Temperature -20℃~+45℃(Full load) Storage Temperature -35℃~ +70℃ Humidity < 95%(N.C.) Enclosure IP20 <5000m Altitude (Derating to operate according to IEC62040 at a height exceeding 1000m)

  • Page 39: Annexⅰdisclaimer

    AnnexⅠDisclaimer The warranty does not apply under the following conditions:  Damage caused by improper use or use an inappropriate environment.  Battery voltage exceeds the input voltage limit of the inverter.  Damage caused by the working environment temperature exceeds the rated range.
  • Page 40 BEIJING EPSOLAR TECHNOLOGY CO., LTD. Tel: +86-10-82894896 / 82894112 Fax: +86-10-82894882 E-mail：info@epsolarpv.com Website: www.epever.com...

This manual is also suitable for:

Np260-12(x)Np260-22(x)Np400-12(x)Np400-22(x)Np600-12(x)Np600-22(x) ... Show all
