Summary of Contents for Amico S-AM1-300X

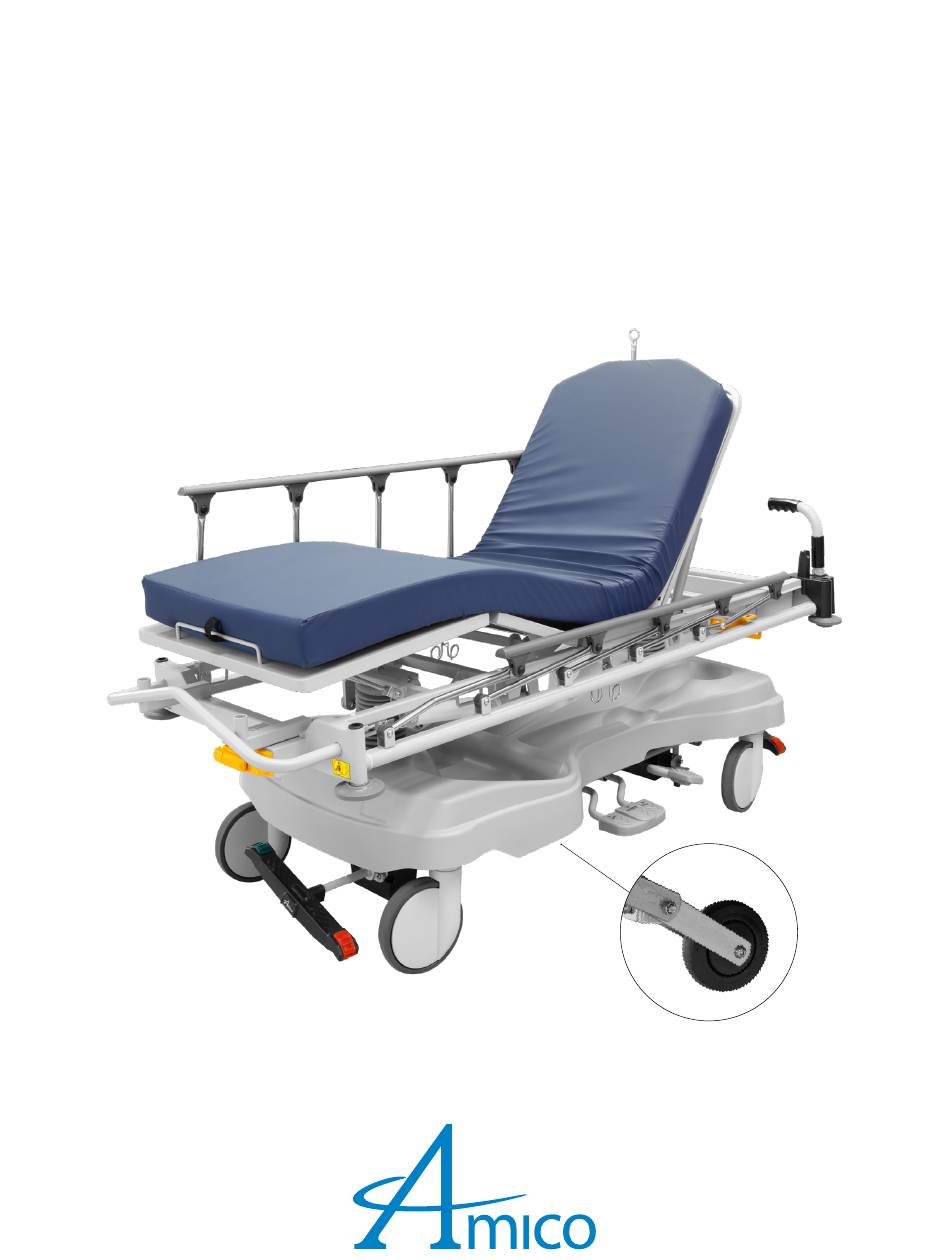

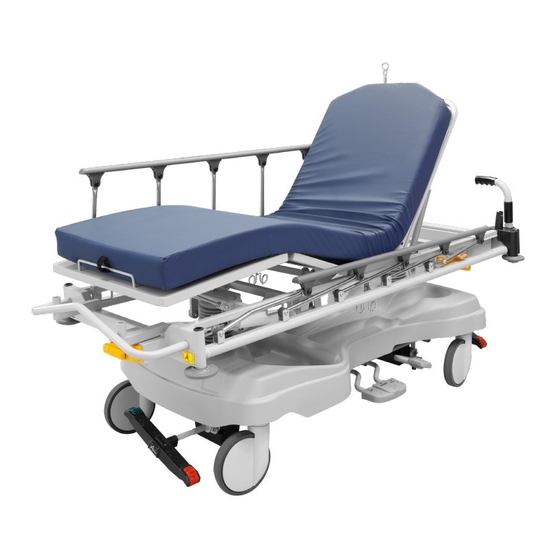

- Page 1 Operation & Maintenance Manual Titan Transport Stretcher S-AM1-300X...
-
Page 2: Table Of Contents
To Raise the Permanent IV Pole To Lower the Permanent IV Pole Safety Tips Brakes Siderails/Restraints/Patient Monitoring Parts and Accessories Operating Stretcher/Surface Precautions Transport Sleep Surface/Mattress Flammability Spray Washing Replacements Parts Preventive Maintenance Cleaning Bleach Cleaning Instructions Mattress Cleaning Instructions Warranty Policy Amico Beds Corporation... -
Page 3: Intended Use
This manual provides instructions required for normal operation of the Titan Series Stretcher (S-AM1-300X) from Amico Beds Corporation. Prior to operation of this stretcher, it is important that this manual is read and ensure that all safety aspects contained in this manual are strictly adhered to. - Page 4 Siderail latch release - To lower the siderail. Keep hands clear. Safe working load - Shows the safe working load of the stretcher. CAUTION: Do not sit on foot section of stretcher while knee section is raised. Amico Beds Corporation...
-
Page 5: Specifications
Specifications Model Number Model Identification Description S-AM1-300X Manual Stretcher With Hydraulics Feature Dimension (inches) Dimension (cm) Total Length 84.5 Maximum Width Mattress to Siderail Height Maximum Under Bed Clearance Surface Dimensions Surface Width 63.5 Surface Length Surface Mattress Thickness 4 to 5 10 to 12.7... -
Page 6: Features
Down/Trendelenburg/reverse Trendelenburg control pedals Mattress Oxygen tank holder and patient item storage Transport handles Brake & neutral pedal IV pole mounting socket Knee surface articulation crank 8" (203 mm) urethane casters Corner bumpers Hi-Lo pump pedal Directional wheel Amico Beds Corporation... -
Page 7: Siderail Positions
Mattresses WARNING: Only mattresses that meet Amico specifications and recommendations should be used. Failure to do so could reduce the effectiveness of the safety features and systems incorporated into the stretcher. Personal injury or equipment damage could occur. -
Page 8: Brake/Neutral/Steer System
Brake/Neutral/Steer System The brake/neutral pedals are located at the head end and foot end of the Titan Series Stretcher (S-AM1-300X) with a central brake system. WARNING: Unless transporting the patient, always set the brakes when the stretcher is occupied. Reconfirm that the brakes are set before any patient transfer. -
Page 9: Down/Trendelenburg/Reverse Trendelenburg
TO RAISE THE HEAD SECTION a. Squeeze the bar under the head section and lift up on the head section. b. Release the bar when the desired position is reached. The head section locks in place. www.amico.com... -
Page 10: To Lower The Head Section
After raising or lowering the knee surface, return the crank to its stored position. Permanent Telescopic IV Pole The permanent IV pole is available as an option on the Titan Transport Stretcher (S-AM1-300X). WARNING: Do not exceed the load capacity of the IV pole. If the IV pole is overloaded, personal injury or equipment damage may occur. -
Page 11: To Raise The Permanent Iv Pole
TO LOWER THE PERMANENT IV POLE a. Loosen the knob to release the IV pole. b. Manually lower the top section of the pole until it fully collapses. c. Lower the IV pole to its stored position (resting in the IV pole cradle). www.amico.com... -
Page 12: Safety Tips
For restraining devices, consult the restraint manufacturer to verify the correct application of each restraining device. PARTS AND ACCESSORIES Use only Amico parts and accessories. Modification of the stretcher shall be at the customer’s risk and liability. OPERATING STRETCHER/SURFACE PRECAUTIONS WARNING: Do not operate the stretcher in the presence of flammable gas or vapors. -
Page 13: Transport
6" (152 mm). Spray wash comprised of water only should not exceed a temperature of 180°F (82°C). Spray wash comprised of detergent or solvents (no bleach) should not exceed a temperature of 120°F (50°C). After washing, seal any exposed, chipped steel parts, or oxidized areas with a coat of touch-up paint. www.amico.com... -
Page 14: Replacements Parts
The Titan Series Stretcher (S-AM1-300X) requires an effective maintenance program. We recommend that you perform annual preventive maintenance (PM) and testing for Joint Commission on Accreditation of Health Care Organizations (JCAHO). -
Page 15: Cleaning
To Disinfect • Wash the surface with one of the approved cleaners or refer to the Bleach Cleaning Instructions if bleach needs to be used. • Wipe off residue with water using a soft cloth or sponge. • Thoroughly dry. www.amico.com... -
Page 16: Mattress Cleaning Instructions
• Set the bed brake on by pressing on the brake pedals to the brake position. During Cleaning • Do not use abrasive cleaning products. • Do not use oil based products. • Do not use a steam cleaner, washing tunnel, high-pressure spray, or hose. Amico Beds Corporation... -
Page 17: Warranty Policy
Furthermore, Amico Beds Corporation will warrant its material to be free from defect for an additional period of two (2) years (three (3) years from the date of shipment). Within this period, Amico Beds Corporation will replace any part which is proven to be defective, at no charge. - Page 18 Notes Amico Beds Corporation...
- Page 19 Notes www.amico.com...
- Page 20 Amico Beds Corporation | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada Toll Free Tel: 1.877.462.6426 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: info@amico.com | www.amico.com AB-IM-TITAN-TRANSPORT-STRETCHER 03.30.2022...
