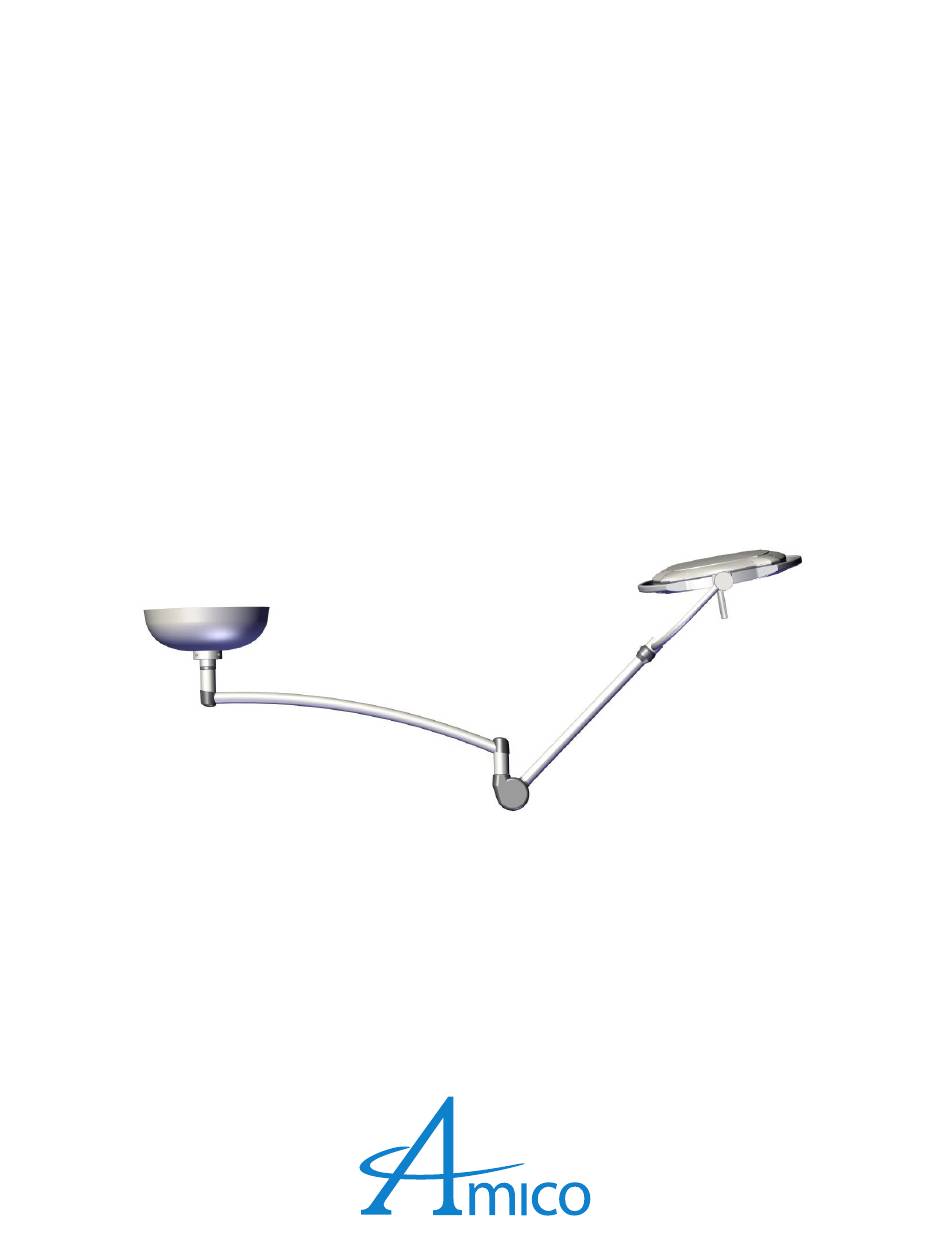

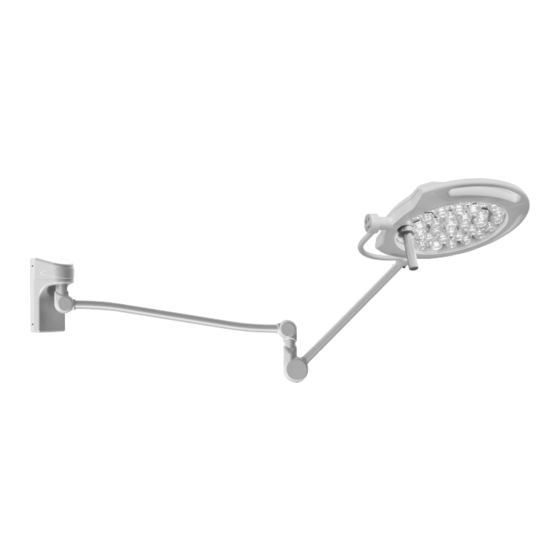

- Page 1 Operating and Maintenance Instructions Mira LED Exam Light Ceiling Mount w w w . a m i c o . c o m...
-
Page 2: Table Of Contents
Installing the Locking Rings Installing the Ceiling Arm Installing the Lighthead 15-17 Operation Disinfecting, Cleaning and Sterilization Maintenance Notes On The Arm Systems 21-22 Spare Parts Disassembly Technical Data of the Lighthead Technical Data of the Arm System Warranty Amico Lights Corporation... -
Page 3: Introduction
This installation manual gives you instructions on how to install the Mira LED Light for a Ceiling mounted version of your purchase. For instructions on operation, maintenance and further description of the product please refer to the Operation and Maintenance Manual included. Please read the following instructions very carefully and follow the safety instructions and requirements. www.amico.com... -
Page 4: Symbols Used In This Manual
Neutral conductor/return conductor for the electrical current Live conductor Storage humidity Storage temperature Disposal Manufacturer Read manual Do not step Do not lean Trademarks: All trade names mentioned in these instructions are the exclusive property of the relevant manufacturers. Amico Lights Corporation... -
Page 5: Safety Instructions
• These instructions are for the Amico Lights Mira Series LED lights. This includes ceiling mounted equipment. • Please carefully read these operating instructions before using the equipment. It will help protect you and others from potential injuries that may occur. - Page 6 The above is an electric shock warning symbol. Non- injuries due to electric shock. compliance with this symbol may result in damages or injuries due to electric shock. Amico Lights Corporation...
-
Page 7: Scope Of Delivery
Scope of Delivery Ceiling Mount Included: 1x Ceiling Mount 1x Dome Cover (mounting and cotter pins included) 1x Drop Tube 1x Arm 2x Retaining Collar Screw 1x Retaining Collar www.amico.com... - Page 8 Scope of Delivery Ceiling Mount Included: 1x #4 Phillips Screw 1x Shim 2x Locking Ring 1x Corner Cap 1x Mounting Hardware Kit Amico Lights Corporation...
-
Page 9: Installing The Ceiling Mount
The electrical mains must be isolated from the by an external all-pole switch. DANGER Risk of injury from falling parts. • Mounting must be performed by two people. CAUTION • Use protective equipment in line with tool manufacturer’s instructions. www.amico.com... - Page 10 Pull the lamp cable from the drop tube thorough the ceiling mount. Insert the drop tube into the ceiling mount. Secure the two mounting pins and cotter pins. Connect the drop tube to the ceiling mount and tighten the four (4) Allen screws in the ceiling mount. Amico Lights Corporation...
- Page 11 Connect Input to terminal block in the electrical box. Use one of cut out for conduit connector. (Picture on left side is an example location.) Connect the main supply to the wire from the drop tube, using grommet that provided. Put the cover back on after installation. www.amico.com...
- Page 12 Danger of injury from unfolding spring arm. Slide dome cover and retaining ring and tighten the collars on the retaining ring. Installing the Ceiling Arm Install the shim and two (2) locking rings. See page 13 for installing the locking rings. Amico Lights Corporation...
-
Page 13: Installing The Locking Rings
2. Press down around the circumference and wind the ring into the groove. To Uninstall: 1. Insert a screwdriver (or similar flat object) into removal notch. 2. Use tool to pry out first end of ring. 3. Grab ring and spiral it out of the groove. www.amico.com... -
Page 14: Installing The Ceiling Arm
Installing the Ceiling Arm WARNING Danger of injury from unfolding spring arm. Connect the power cable from the drop tube to the extended arm. Secure the corner cap with the given #4 screw. Amico Lights Corporation... -
Page 15: Installing The Lighthead
Installing the Lighthead CAUTION Damage can be caused by falling Lighthead. Danger of injury through incorrect fitting of the Lighthead. Remove the screw. Rotate the sleeve so the notch and slot are aligned. Take out the safety segment. www.amico.com... - Page 16 Installing the Lighthead WARNING Danger of injury from unfolding spring arm. Take out the plug from the arm. Join the arm connector to the light head connector. Insert Light head to the arm. Amico Lights Corporation...
- Page 17 Damage can be caused by falling Lighthead. Danger of injury through incorrect fitting of the Lighthead. Insert the safety segment back. Turn back sleeve and tighten screw according to requirements of the friction from the Lighthead. Clip the handle on the Lighthead. www.amico.com...
-
Page 18: Operation
Operation Mira LED - All Models Switch on Light from control pad at Lighthead. Power (ON/OFF) Endo Light (ON/OFF) Decrease brightness Increase brightness Amico Lights Corporation... -
Page 19: Disinfecting, Cleaning And Sterilization
• Lysoformin • Dismozon • Hexaquart plus • Sagrotan – fast disinfecting cleaner NOTICE: The local government regulations for disinfection must also be observed in addition to these instructions. NOTICE: Sterilize handle at 120⁰C and 1.05 bar for 30 minutes. www.amico.com... -
Page 20: Maintenance
3. Rotate the adjustment screw accordingly to set the spring force. Setting Spring Force • Turn screw counter clockwise (+) to increase spring force (when spring arm lowers) • Turn screw clockwise (-) to decrease spring force (when spring arm rises) Amico Lights Corporation... -
Page 21: Notes On The Arm Systems
Every 6 months or 5000 arm movements check for: • Paint damage • Cracks in plastic parts • Deformation of the support system • Loosening of parts Every 2 years: The securing element of the cantilever arm must be checked and greased by a qualified professional. www.amico.com... - Page 22 3. Securing segment 4. Slot 5. End device terminal This system is designed to be equipped with end devices from other manufacturers. For end device operation instructions please refer to the operating instructions of the related manufacturer. Amico Lights Corporation...
-
Page 23: Spare Parts
Illuminant defective After- Sales Service After- Sales Service Check power supply and Light does not come on No mains power Qualified electrician all connections 2A fuse defective Light does not come on Replace fuse Qualified electrician (Mira LED Floorstand only) www.amico.com... -
Page 24: Disassembly
Do not dispose of this product with normal refuse. Dispose of the product at a recycling center or return it to a dealer with a disposal service depending on local regulations. Cut off the cable flush with the housing. Amico Lights Corporation... -
Page 25: Technical Data Of The Lighthead
Ceiling, Wall, Floorstand Ceiling, Wall, Floorstand cETLus conform to cETLus conform to cETLus conform to UL60601-1; UL60601-2-41; UL60601-1; UL60601-2-41; UL60601-1; UL60601-2-41; Certificates UL certified IP54 per UL certified IP54 per UL certified IP54 per IEC 60598 IEC 60598 IEC 60598 www.amico.com... -
Page 26: Technical Data Of The Arm System
9.8 kg (21.5 lbs) Operating mode: Operating mode continuous operation Classification: Mira LED Swing Class I Classification under 93/42 EEC – Annex IX Class I (medical device class) Safety testing according to: CSA C22.2#60601-1 IEC/EN 60601-1 2nd. UL 60601-1 Amico Lights Corporation... -
Page 27: Warranty
Amico Lights Corporation warrants its products against defective materials and workmanship for twelve (12) months from the date of shipment. Within this period, Amico Lights Corporation will repair or replace any part on site or at the factory which is proven to be defective at Amico Lights Corporation’s cost. - Page 28 Amico Lighting Solutions | 122-B East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada Toll Free Phone: 1.877.462.6426 | Toll Free Fax: 1.866.440.4986 | Tel: 905.764.0800 | Fax: 905.763.8587 Email: info@amico.com | www.amico.com LT-INSTALL-INSTR-MIRA-LED-CEILING 01.17.2020...
