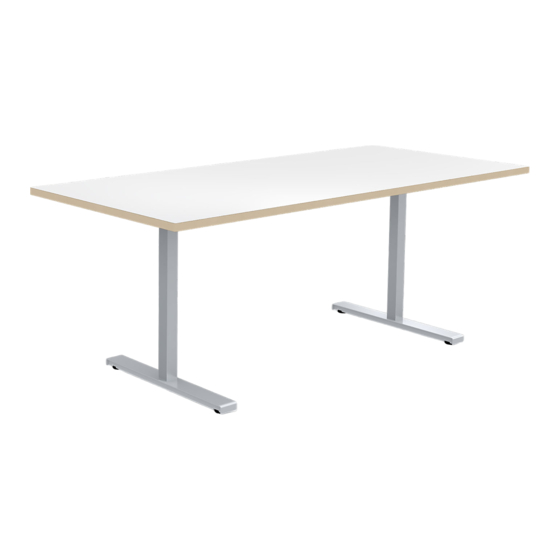

WATSON SEVEN ELECTRIC Assembly Instructions Manual
2 -leg table
Hide thumbs
Also See for SEVEN ELECTRIC:
- User manual (8 pages) ,
- Assembly instructions manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for WATSON SEVEN ELECTRIC
Summary of Contents for WATSON SEVEN ELECTRIC

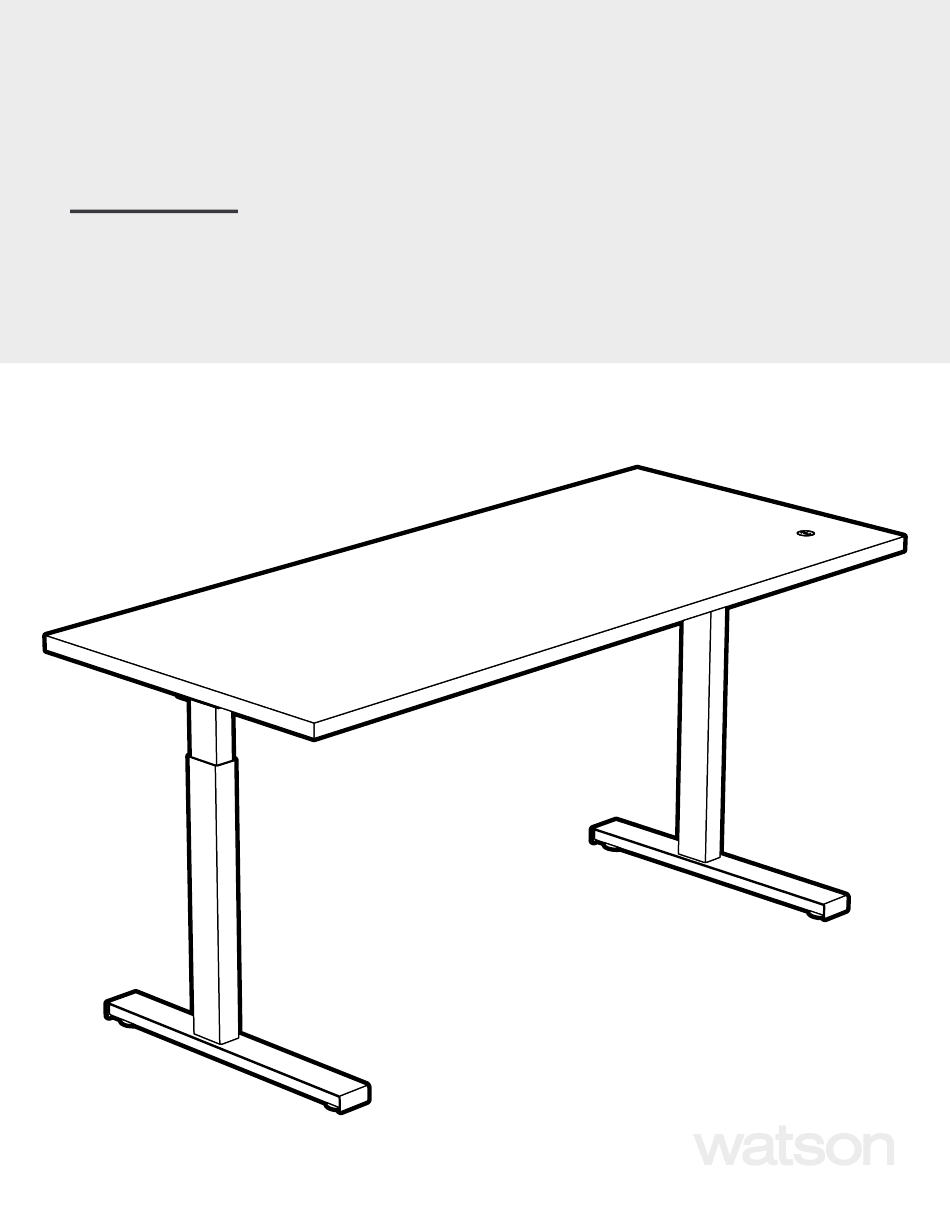

- Page 1 SE V EN ELEC TR I C 2 -L E G TAB LE AS SEM BLY I N STR UC TI O N S V.2.0 4/16 INS-SN2LEG-ELEC...
- Page 2 2-LEG TABLE COMPONENTS Worksurface Support Rails Switch Inset Undermount Wellness Alligator Clips Legs Power Cable Control Box Feet Motor Cable FASTENERS TOOLS #2 Phillips M6-1x12mm Button Head #10x¾” Pan Head Wood #8x⅝” Truss Head Socket Cap Screw, Black Screw (127000) Panhead Screw (122800) (125290) 5/32”...
- Page 3 Swi tch Assemble on a clean blanket or carpet. Push switch into pocket on the top side of the surface. Lay the worksurface face side down. Le gs + Sup p o rt Rai l + Feet Place Legs through Support Rail Attach the support rail to the legs.
- Page 4 Contro l Box + Wi res Feed the power cable through the rail notch. Secure the power cable to the control box. Loop power cable into the small arcing groove and press in. This provides strain relief for the power cord so it does not come disengaged during use.
- Page 5 Atta c h Wo rk s urf ac e Align the leg frame and push in any stray cables. Secure the surface with ¼-20x⅜” Phillips Pan Head Machine Screws (x8) Attach the wire clips with #8x⅝” Truss Head Panhead Screw (122800). Secure switch wire with adhesive pads.
- Page 6 Not es INS-SN2LEG-ELEC Seven 2-Leg Table Assembly...
