PAPER GUIDE SLIDER BAR (NON-UPG)
Confirm that the slider bar or adjustable rail on the paper path is properly adjusted for the width stock being used. The
media should move smoothly through the paper path. f the slider bar is adjusted too far away from the ticket it may cause
crooked printout or the printer to skip tickets.
To adjust the paper path for use with a different ticket width, adjust the slider bar to the fully open position. Insert your
ticket stock into the paper guide. Adjust the slider bar down to the proper ticket width, making sure the bar is not too tight
against the ticket. The ticket should move freely in the paper guide.
The slider bar would be
located here for 3.25"
ticket width
UNIVERSAL PAPER GUIDE (UPG)

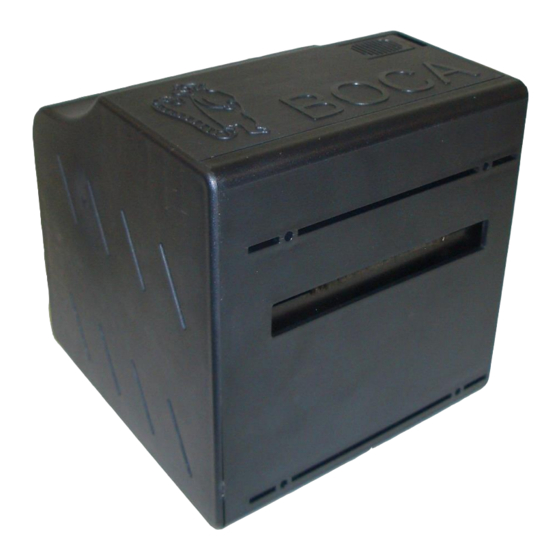

Routine Cleaning Procedures Lemur-C
In June of 2021 switched over to using UPG paper guides.

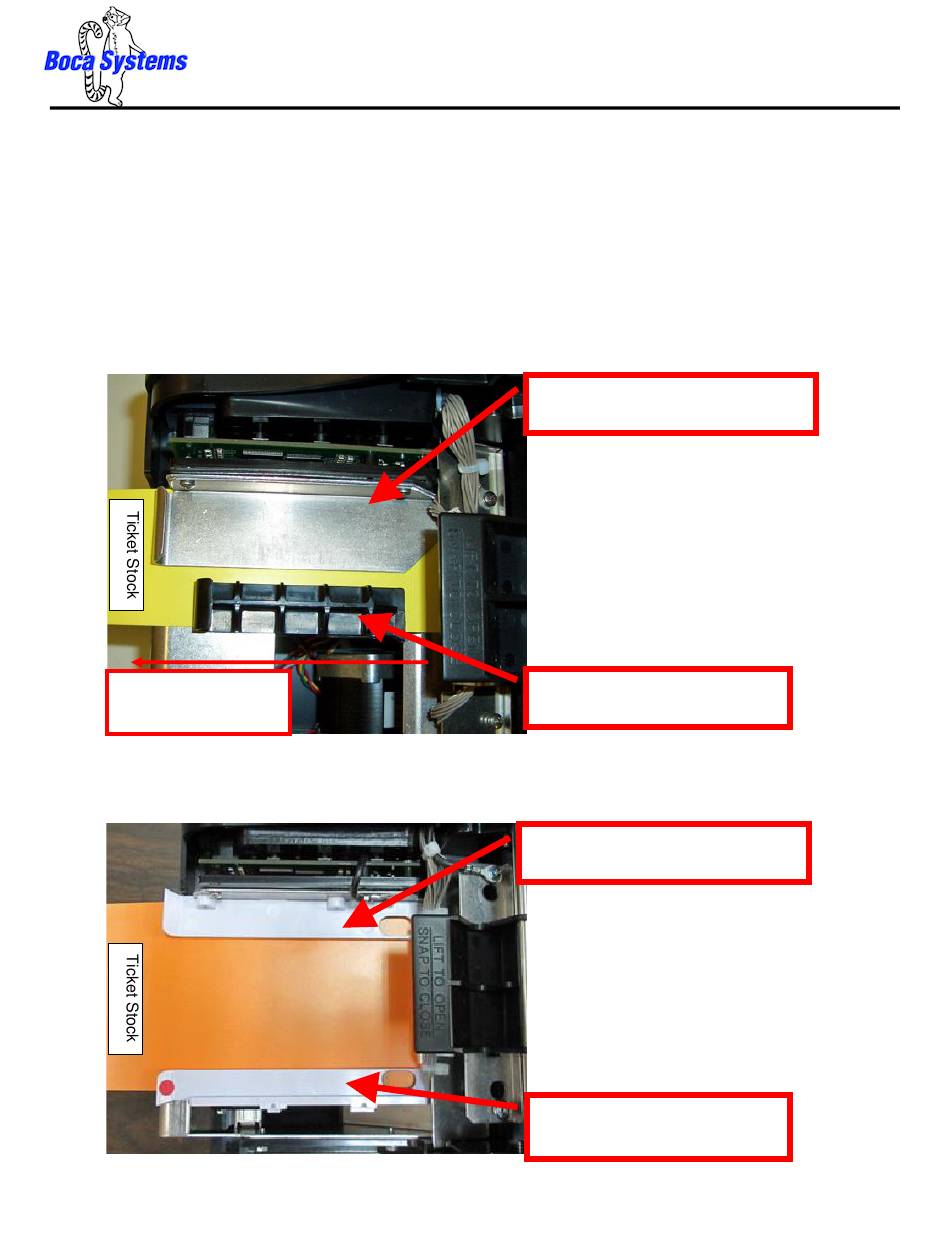

Load your stock towards this side
and below this metal plate
Slider Bar,
NOTE: stock must go
.
under the slider bar
Load your stock towards this side
and below this plastic rail
Adjustable Rail,
NOTE: stock
.
must go under this rail
1
Advertisement
Table of Contents
Related Manuals for Boca Systems Lemur-C
Summary of Contents for Boca Systems Lemur-C
- Page 1 1065 South Rogers Circle • Boca Raton, FL 33487 • Phone (561) 998-9600 • Fax (561) 998-9609 Routine Cleaning Procedures Lemur-C PAPER GUIDE SLIDER BAR (NON-UPG) Confirm that the slider bar or adjustable rail on the paper path is properly adjusted for the width stock being used. The media should move smoothly through the paper path.
- Page 2 Paper path adjustment for UPG plastic rail paper path Adjust the slider bar down to the proper ticket width, making sure the bar is not too tight against the ticket. The ticket should move freely in the paper guide path The black block the plastic rail is attached to is able to be slide to adjust its width •...
- Page 3 THERMAL PRINT HEAD CLEANING PROCEDURE The print head should be cleaned periodically to prevent debris from building up on the print element. The required cleaning interval varies greatly depending on the quality of the ticket stock and the amount of dust entering the print area. Excessive dirt buildup on the print head will result in reduced quality.
- Page 4 PLATEN CLEANING PROCEDURE The Platen (rubber drive roller) should be cleaned once a year to prevent paper dust from building up on the roller. (NOTE: The platen may require more frequent cleaning in dusty environments or when using inferior ticket stock.) 1.
- Page 5 SENSORS (OPTO) CLEANING PROCEDURE Clean Load Sensor The load sensor (opto) is responsible for letting the printer know when media has been loaded into the printer. 1. Using inert dusting gas (canned air) or equivalent blow air over the opto eyes (see photo below). Sensor Eye Above is non-UPG paper path Above is UPG paper path...
