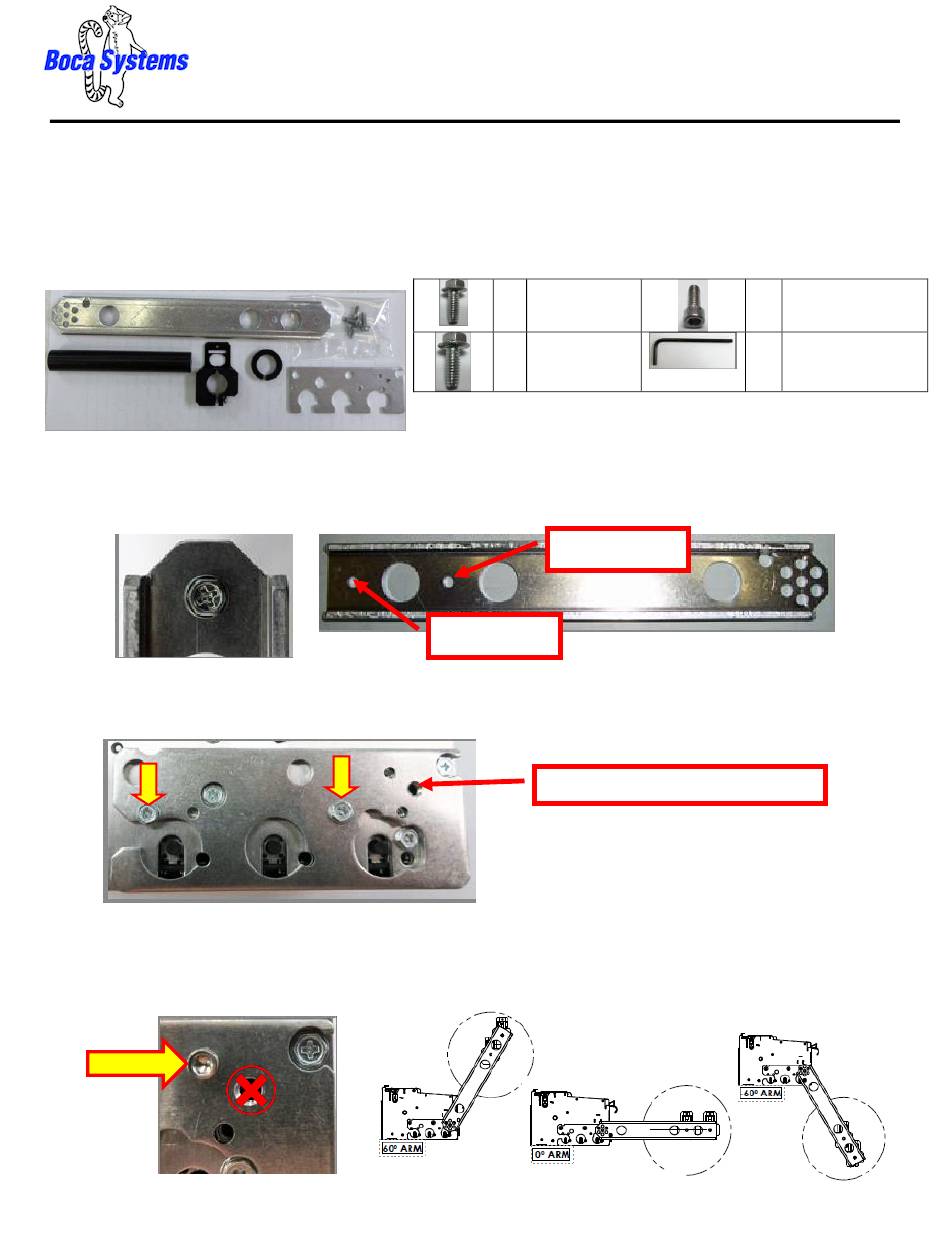

Roll Holder Installation Lemur-X

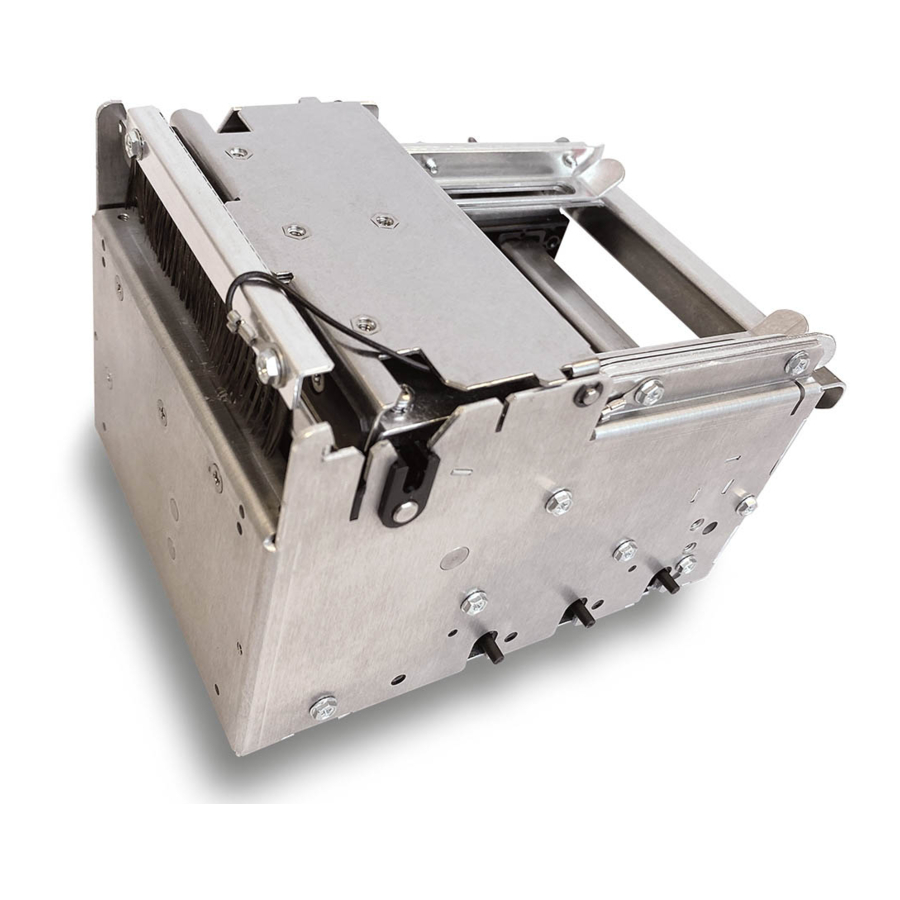

This roll holder kit is designed to be used with either a Lemur-X or Lemur-Z model printer. This kit will work
with a roll that has a minimum cord inner diameter of 1.0" or greater.
Kit will include mounting plate, roll holder arm, spindle, stopper disc and mounting hardware.
Some parts my look different than the above photo
Attach the spindle onto the roll holder arm using one ¼" Hex head #8 Taptite screw. There are two
1.
mounting locations that may be used depending on roll outer diameter size.
Install The Roll Holder Arm mounting plate onto the printer using two 3/16" Hex Head #4 Taptite screws.
2.
The plate may be installed on either side of the printer.
Install the one 3/32" Allen head screw into the mounting plate. Location will depend on the desired
3.
angle you want to set the arm at. See last page for diagram of possible arm positions angles.
a. TOP HOLE = 60°, 0°, - 60°
TOP
3/16" Hex Head
2X
#4 Taptite
1/4" Hex Head
2X
#8 Taptite
6" or smaller
8" or smaller
For #8 Taptite screw at step # 4
1
(p/n 424051-U)
3/32" Allen head
1X
screw
1X 3/32" Allen wrench
