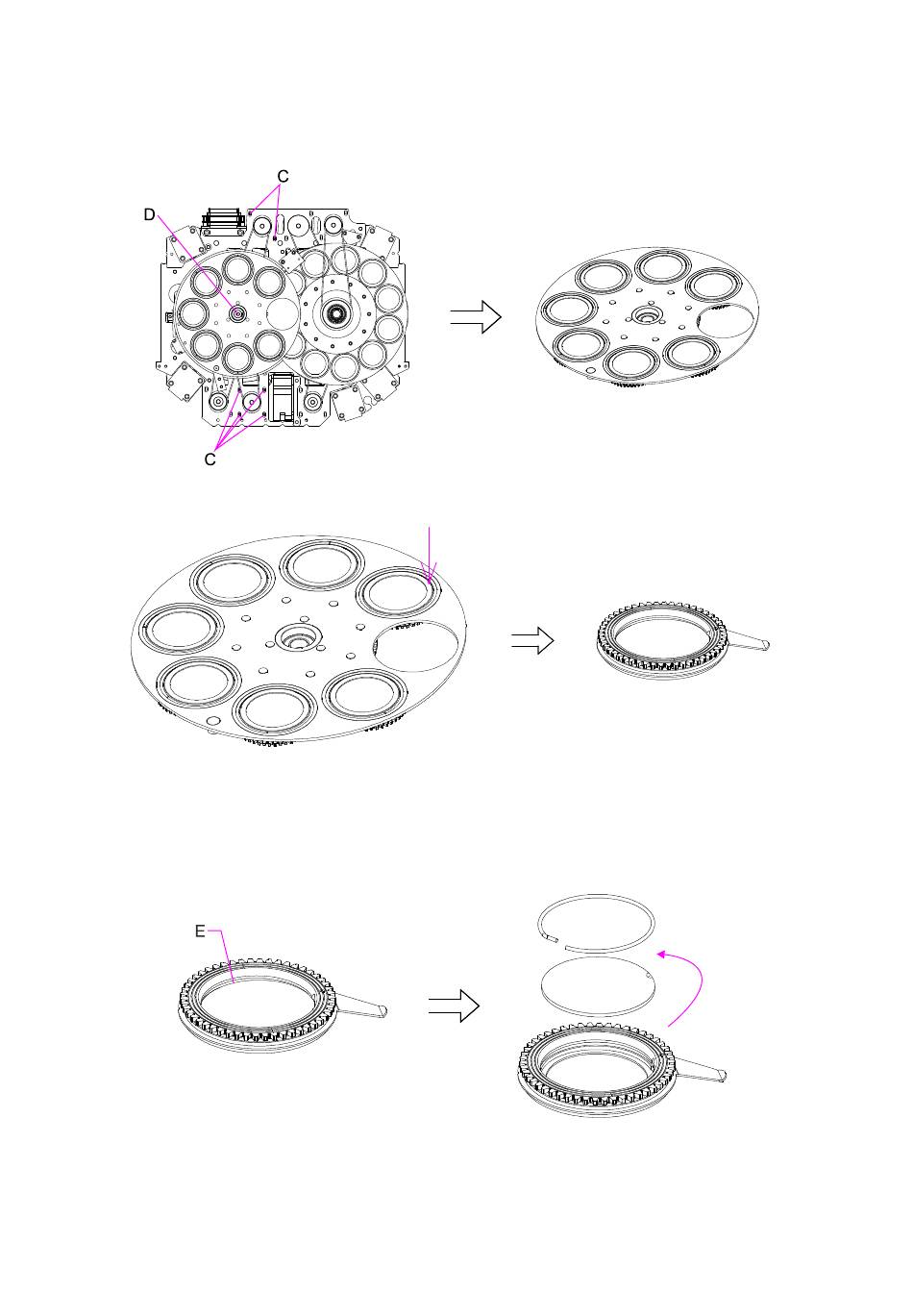

3. Half loosen the screws at C and remove two belts; Unscrew the screw at D, then take out the
rotating gobo wheel assembly;
4. Press down the gobo from the edge of the rotating gobo wheel assembly and slowly pull it out;
5. Remove the spring at E with an appropriate tool like tweezers (the gobo is fixed with glass glue,
do remove it with some good glass cleaning fluid before removing the spring to avoid damage to
the gobo).
