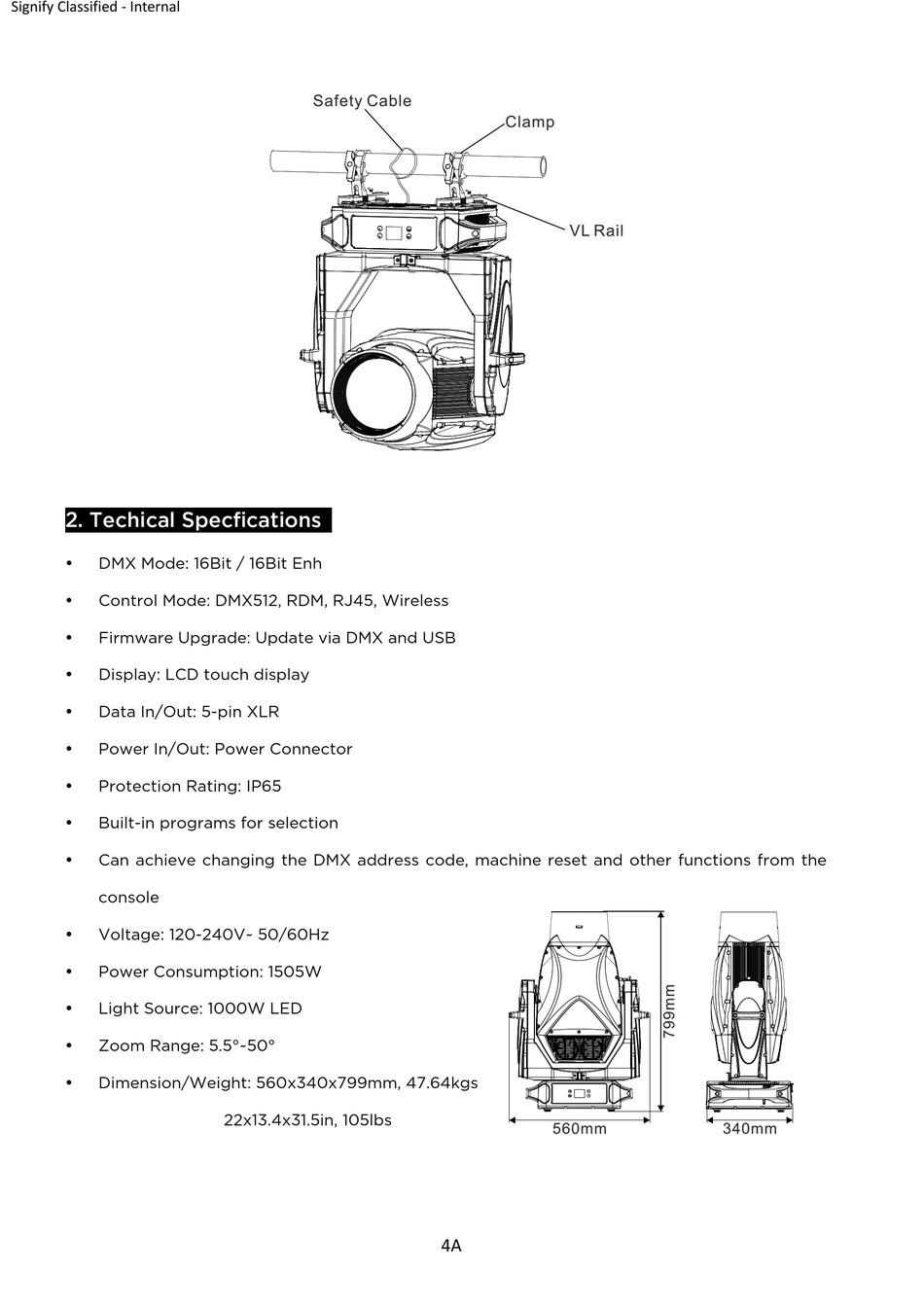

2. Techical Specfications

DMX Mode: 16Bit / 16Bit Enh

Control Mode: DMX512, RDM, RJ45, Wireless

Firmware Upgrade: Update via DMX and USB

Display: LCD touch display

Data In/Out: 5-pin XLR

Power In/Out: Power Connector

Protection Rating: IP65

Built-in programs for selection

Can achieve changing the DMX address code, machine reset and other functions from the

console
Voltage: 120-240V~ 50/60Hz

Power Consumption: 1505W

Light Source: 1000W LED

Zoom Range: 5.5°~50°

Dimension/Weight: 560x340x799mm, 47.64kgs

22x13.4x31.5in, 105lbs
