VL800 EVENTPAR
RGBA
User ManUal

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vari Lite VL800

Summary of Contents for Vari Lite VL800

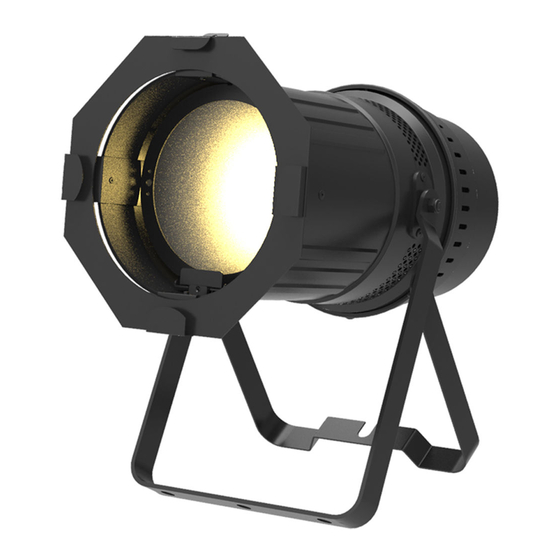

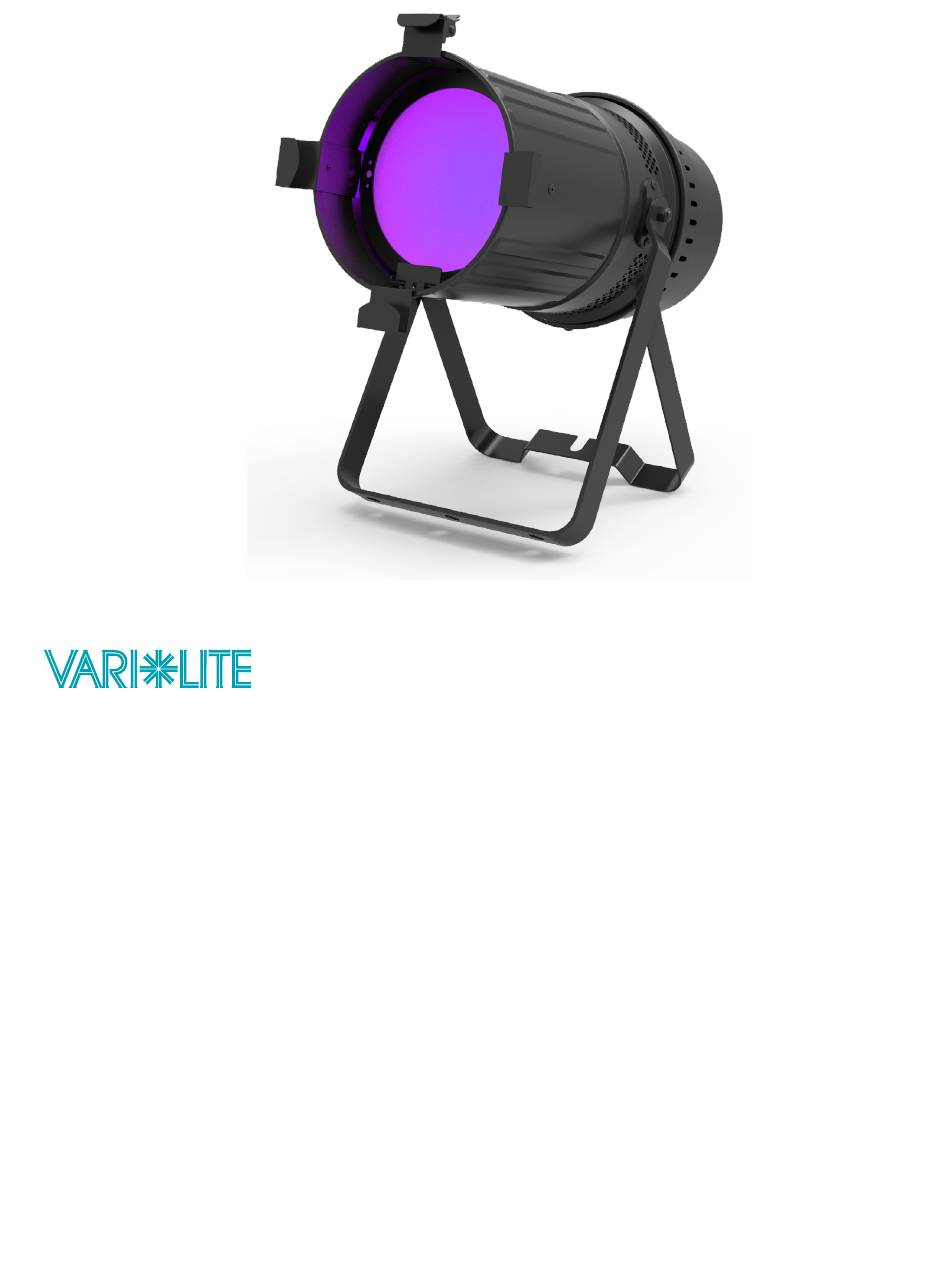

  • Page 1 VL800 EVENTPAR RGBA User ManUal...

  • Page 2: About This Manual

    Read all instructions before installing or using this product. Retain this manual for future reference. Additional product information and descriptions may be found on the product specification sheet. InClUDeD ITeMs Each VL800 EVENTPAR luminaire includes the following items: • VL800 EVENTPAR RGBA •...

  • Page 3: Installation And Setup

    User ManUal iNSTALLATioN AND SETUP MOUnTInG The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.

  • Page 4: Menu Functions

    User ManUal TABLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT Address 000~512 (Default 001) LED Hours XXXXXX h Square Law Curve (Default) Dimming Curve S Law Curve Linear Law Curve Standard (Default) output / Fan Studio...
  • Page 5 User ManUal TABLE 1. MENU FUNCTIONS LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6 DEFAULT Status (No Errors... or displays a list of errors) Reboot Fixture Are you sure? Version VXXX MM/DD/YY HH:MM Fixture Hours XXXXXX h Fixture crossload Send...
  • Page 6 User ManUal To select DMX, press the ENTER button to confirm, use the UP/DOWN button to select Data or DMX Mode. Data — To select Data, press the ENTER button to confirm. Use the UP/DOWN button to select Ch 1 - Inten- sity, Ch 2 - Intensity Fine ….

  • Page 7: How To Control The Fixture

    User ManUal Manual Control Enter menu mode, select Manual Control, press the ENTER button to confirm, use the UP/DOWN button to select Intensity, Intensity fine …All functions. Use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER button to store.
  • Page 8 User ManUal TABLE 2. 16-BIT CHANNEL MODE CHANNEL FUNCTION VALUE DESCRIPTION 000-068 channel oFF 069-070 cF_0_color oFF 071-072 cF_1_white 10000K 073-074 cF_2_white 8000K 075-076 cF_3_white 6500K 077-078 cF_4_white 5600K 079-080 cF_5_white 5000K 081-082 cF_6_white 4500K 083-084 cF_7_white 4000K 085-086 cF_8_white 3200 087-088 cF_9_white 3000K 089-090...
  • Page 9 User ManUal TABLE 2. 16-BIT CHANNEL MODE CHANNEL FUNCTION VALUE DESCRIPTION 000-005 idle(Default) 006-010 Full Luminaire Recal 011-015 Reserved Values 016-020 Reserved Values 021-025 Fixture Shutdow 026-030 Display - Menu oN 031-035 Display - Menu oFF 036-040 Dimming Curve Linear 041-045 Dimming Curve S-Curve 046-050...
  • Page 10 User ManUal TABLE 3. 8-BIT CHANNEL MODE CHANNEL FUNCTION VALUE DESCRIPTION intensity 0-255 8-bit control of dimming 0-255 8-bit control of color Green 0-255 8-bit control of color Blue 0-255 8-bit control of color Amber 0-255 8-bit control of color 000-068 channel oFF 069-070...

  • Page 11: Dmx 512 Connection

    User ManUal TABLE 3. 8-BIT CHANNEL MODE CHANNEL FUNCTION VALUE DESCRIPTION idle(Default) 000-005 Full Luminaire Recal 006-010 Reserved Values 011-015 Reserved Values 016-020 Fixture Shutdow 021-025 Display - Menu oN 026-030 Display - Menu oFF 031-035 Dimming Curve Linear 036-040 Dimming Curve S-Curve 041-045 Dimming Curve Square Curve (Default)**...

  • Page 12: Maintenance

    User ManUal • At last unit, the DMX cable has to be terminated with a terminator. Solder a 120Ω 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 5-pin XLR-plug and plug it in the DMX-output of the last unit. •...

  • Page 13: Read And Follow All Safety Instructions

    User ManUal iMPoRTANT iNFoRMATioN WarnInGs anD nOTICes When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS. • For indoor, dry locations use only. Do not use outdoors. • Do not mount near gas or electric heaters. 2000851 •...
  • Page 14 The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. Data subject to change. VL800 EVENTPAR RGBA User Manual Document no.: 912400575001UM...
