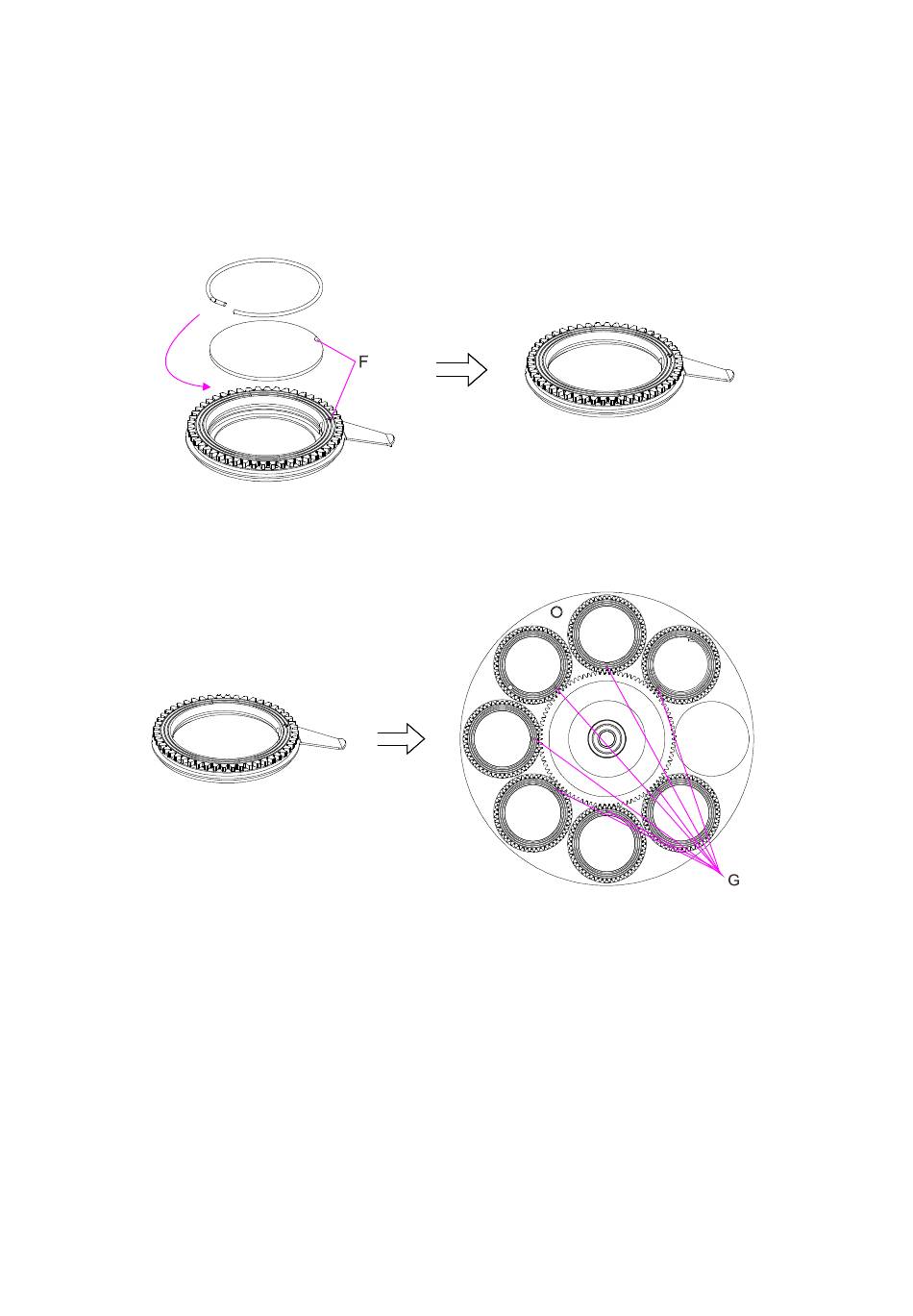

6. Do not touch the surface of the gobo with bare fingers. Put the gobo and the spring back into
the gobo holder (the gobo has a small position point at its edge which has to aim at the position
point on the gobo holder like F shows; the gobo coating side should face upwards), and then
apply a little glass glue to fix the gobo.
7. Insert the gobo holder back into the rotating gobo wheel assembly in this way that its position
point has to exactly aim at the center of the rotating gobo wheel.
8. After installation, put the gobo & color assembly back to the fixture
