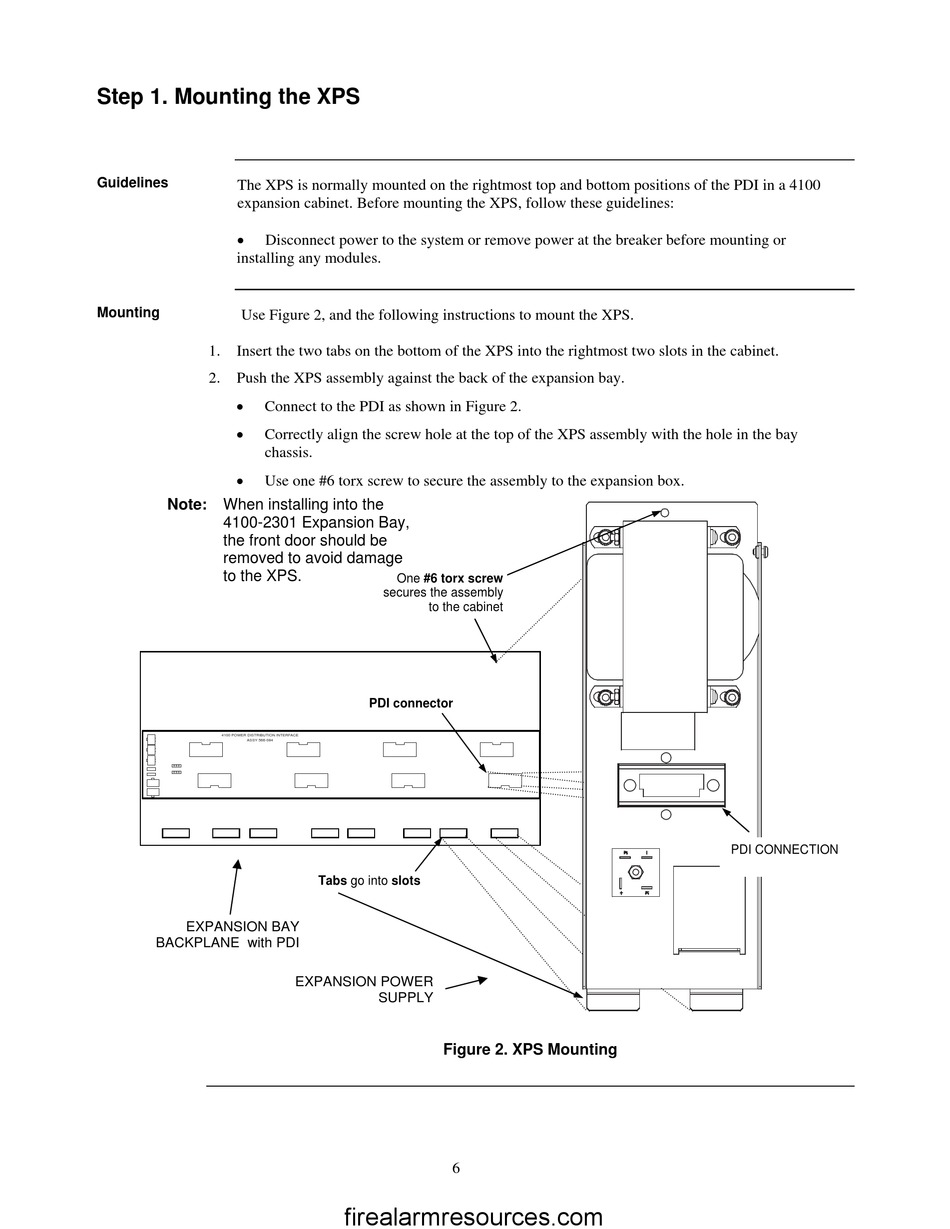

Step 1. Mounting the XPS

Guidelines
The XPS is normally mounted on the rightmost top and bottom positions of the PDI in a 4100
expansion cabinet. Before mounting the XPS, follow these guidelines:

Disconnect power to the system or remove power at the breaker before mounting or
installing any modules.
Mounting
Use Figure 2, and the following instructions to mount the XPS.
1. Insert the two tabs on the bottom of the XPS into the rightmost two slots in the cabinet.
2. Push the XPS assembly against the back of the expansion bay.

Connect to the PDI as shown in Figure 2.

Correctly align the screw hole at the top of the XPS assembly with the hole in the bay
chassis.

Use one #6 torx screw to secure the assembly to the expansion box.
Note: When installing into the
4100-2301 Expansion Bay,
the front door should be
removed to avoid damage
to the XPS.
4100 POWER DISTRIBUTION INTERFACE
ASSY 566-084
EXPANSION BAY
BACKPLANE with PDI
One #6 torx screw
secures the assembly
to the cabinet
PDI connector
Tabs go into slots
EXPANSION POWER
SUPPLY
Figure 2. XPS Mounting
6
firealarmresources.com
PDI CONNECTION
