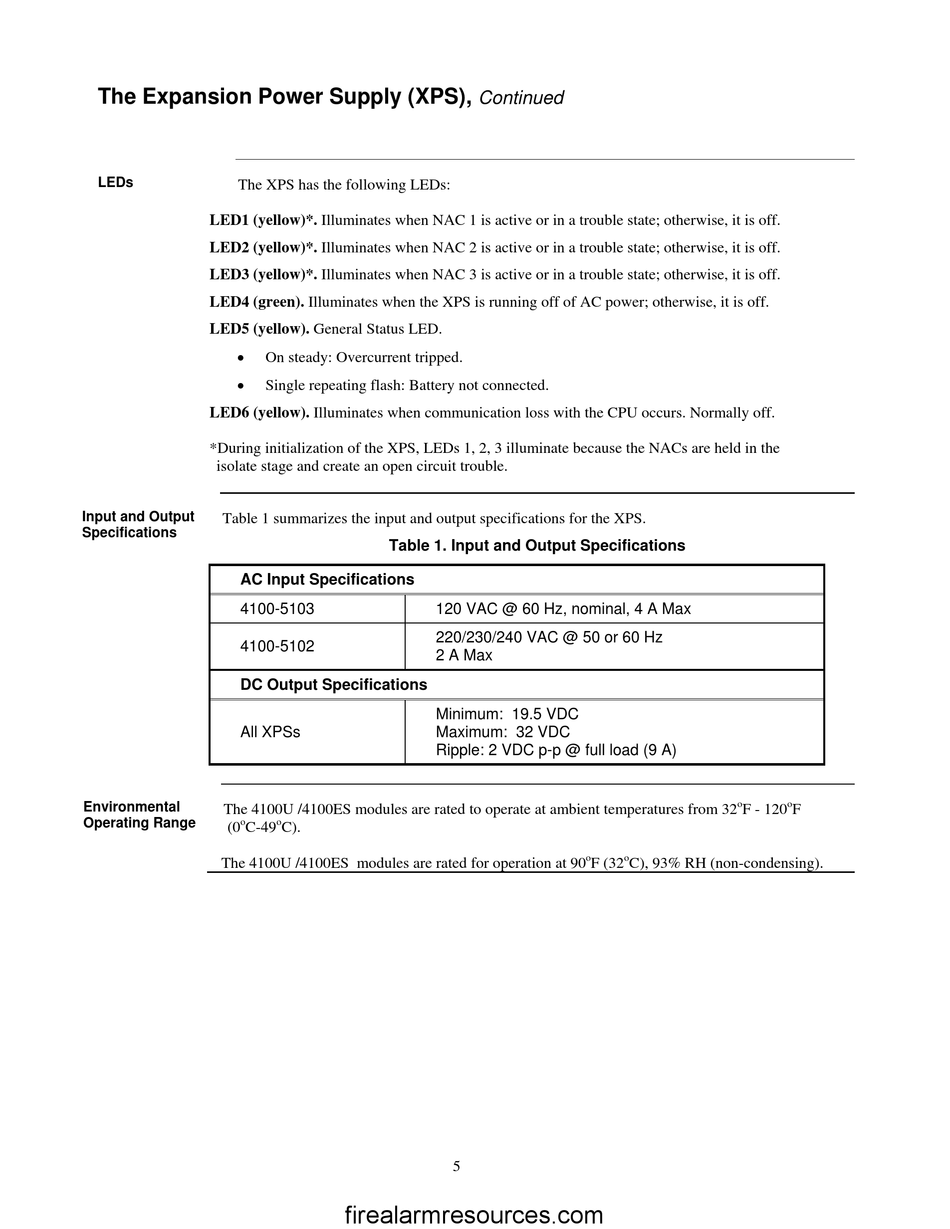

The Expansion Power Supply (XPS),
LEDs
The XPS has the following LEDs:
LED1 (yellow)*. Illuminates when NAC 1 is active or in a trouble state; otherwise, it is off.
LED2 (yellow)*. Illuminates when NAC 2 is active or in a trouble state; otherwise, it is off.
LED3 (yellow)*. Illuminates when NAC 3 is active or in a trouble state; otherwise, it is off.
LED4 (green). Illuminates when the XPS is running off of AC power; otherwise, it is off.
LED5 (yellow). General Status LED.


LED6 (yellow). Illuminates when communication loss with the CPU occurs. Normally off.
*During initialization of the XPS, LEDs 1, 2, 3 illuminate because the NACs are held in the
isolate stage and create an open circuit trouble.
Input and Output
Table 1 summarizes the input and output specifications for the XPS.
Specifications
AC Input Specifications
4100-5103
4100-5102
DC Output Specifications
All XPSs
Environmental
The 4100U /4100ES modules are rated to operate at ambient temperatures from 32
Operating Range o
(0 C-49
The 4100U /4100ES modules are rated for operation at 90
On steady: Overcurrent tripped.
Single repeating flash: Battery not connected.
Table 1. Input and Output Specifications
120 VAC @ 60 Hz, nominal, 4 A Max
220/230/240 VAC @ 50 or 60 Hz
2 A Max
Minimum: 19.5 VDC
Maximum: 32 VDC
Ripple: 2 VDC p-p @ full load (9 A)
o
C).
firealarmresources.com
Continued
o o
F (32 C), 93% RH (non-condensing).
5
o o
F - 120 F
