Step 3. Internal Wiring,
Power Distribution
4. Connect the 734-012 Harness (734-013 for 220/230/240 V versions) from the next connector
Module
Connections

5. Repeat step 4 for the second XPS, if applicable.
XPS
Additional bulkhead
ASSEMBLY
connector supplied
here with
220/230/240 V
versions
Continued
on the PDM to the first XPS.

Connect the separate red and black wires (with yellow female terminations) to plugs P4
(black) and P5 (red) on the XPS.
Connect the white and black wires, which terminate together in a white snap-on connector, to
the connector at the bottom of the XPS assembly, as shown below. The black wire must be
closer to the wall at the XPS connection point.
* 220/230/240 V PART NUMBERS
APPEAR IN ITALICS.
Bulkhead connector

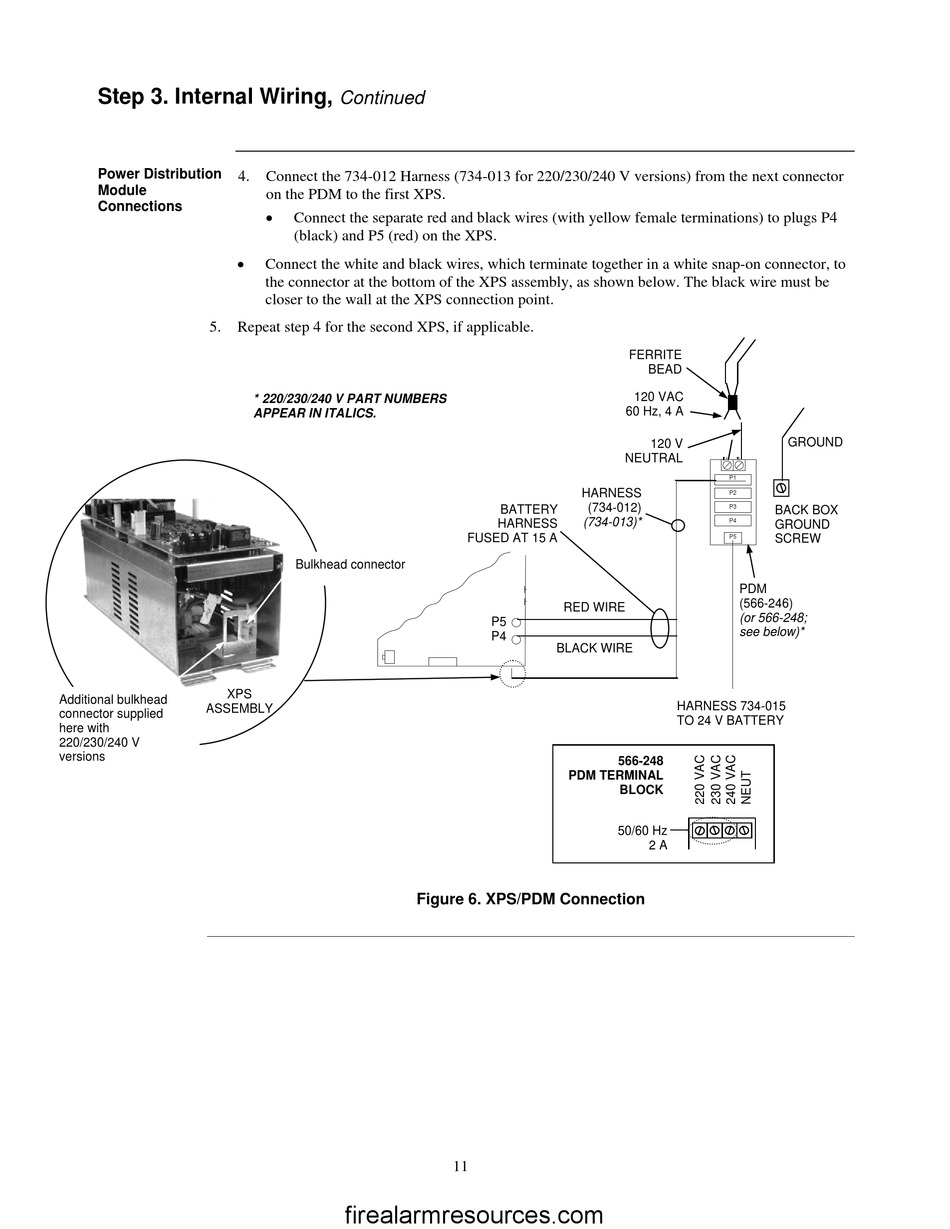

Figure 6. XPS/PDM Connection
