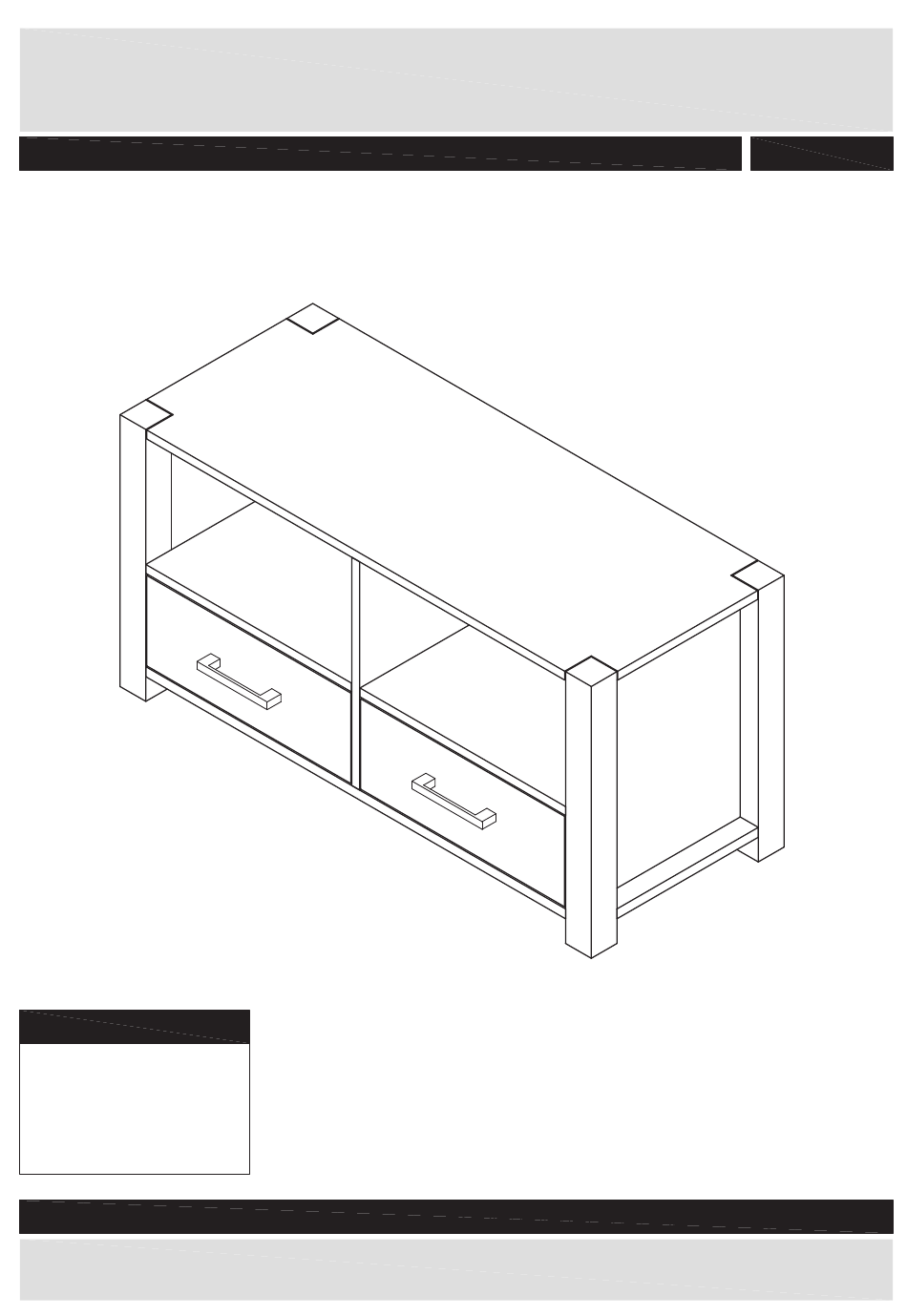

Woburn Entertainment Unit
Assembly Instructions -
186/2807
Please keep for future reference
Dimensions
Length - 110cm
Width - 45cm
Height - 55cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800
Issue 2 - 15/05/08
Advertisement
Related Manuals for Argos Woburn 186/2807
Summary of Contents for Argos Woburn 186/2807
- Page 1 Woburn Entertainment Unit Assembly Instructions - 186/2807 Please keep for future reference Dimensions Length - 110cm Width - 45cm Height - 55cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 Issue 2 - 15/05/08...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly components and tools listed on recommend the pages 2 and 3. this could cause damage. use of power drill/drivers for inserting screws , plastic bags and separate them as this could damage the unit.
- Page 3 Components - Panels Please check you have all the panels listed below Divider (46 x 44.6cm) Left side (55 x 45cm) Right side (55 x 45cm) underside Left shelf (48.1 x 44.5cm) (110 x 45cm) Right shelf (48.1 x 44.5cm) Back x 2 (101 x 27cm) (101 x 21.7cm)
- Page 4 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 0845 640 0800 Note: Metal dowel x 28 Wood dowel x 19 Runner x 4 rew x 22 Locking nut x 28 rew x 20 25mm Screw x 4 30mm Screw x 8 Handle x 2 Tools required...
- Page 5 Assembly Instructions Step 1 Attaching runners Pull out the runner into two parts. Pull out Pull out E E C Position runners the divider Fix through holes shown using screws E E E Finished front edge...
- Page 6 Assembly Instructions Step 1 - continued Attaching runners Position runners the front edge of the left side , right side Fix through holes shown E E E using screws Finished front edge Finished front edge Finished front edge Finished front edge...
- Page 7 Assembly Instructions Step 2 Fitting dowels Screw metal dowels into left side , right side , divider , top front and back rail Insert wood dowels into left side , right side , divider , front and back rail , left shelf and right shelf Note: Insert metal dowels...
- Page 8 Assembly Instructions Step 4 Step 3 back edge Attaching shelf Connect left shelf right shelf to the divider by locking nuts Use a screwdriver to turn the locking nuts clockwise to lock. Step 4 Step 4 back edge Attaching front and back rail Attach front and back rail to the divider...
- Page 9 Assembly Instructions Step 5 Attaching side Attach left side right side to the frame by locking nuts Use a screwdriver to turn the locking nuts clockwise to lock. Step 6 Attaching top panel Attach top to the frame back edge by locking nut Use a screwdriver to turn the locking nuts...
- Page 10 Assembly Instructions Step 4 Step 7 Attaching back Attach back to the frame . Note: corners XX and YY to make XX=YY. 90° 90° Note: Measure the distance bewteen point Y and Y and X and X, 90° and adjust, so the measurements are the same XX=YY.
- Page 11 Assembly Instructions Step 4 Step 4 Step 8 Drawer assembly Attach wood dowels to the left & right drawer side Screw metal dowels into holes shown on drawer front Note: Insert metal dowels as far as shown. Do not over tighten. Connect left and right drawer side to the...
- Page 12 Assembly Instructions Step 4 Step 8 - continued Drawer assembly Slide drawer bottom into the grooves. Connect left and right drawer side to the drawer back using screw Fix drawer handle using screws...
- Page 13 Assembly Instructions Step 8 - continued Drawer assembly Fix the runners the shown position using screws Front Repeat with remaining drawer.
- Page 14 Assembly Instructions Step 9 Inserting drawers Slide the ball bearing to the front runner, then insert drawers onto runners. Adjustment drawers a: Loosen screws shown. b: Move drawers to suit. c: Re-tighten screws. Warning: The cabinet is heavy. Lift with care.
- Page 15 Assembly Instructions Step 10 Secure the drawers Fix position of the runners using screws Front Note: There are no per-drilled holes for these screws.
- Page 16 Assembly Instructions Step 11 Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 Argos Ltd MK9 2NW...
