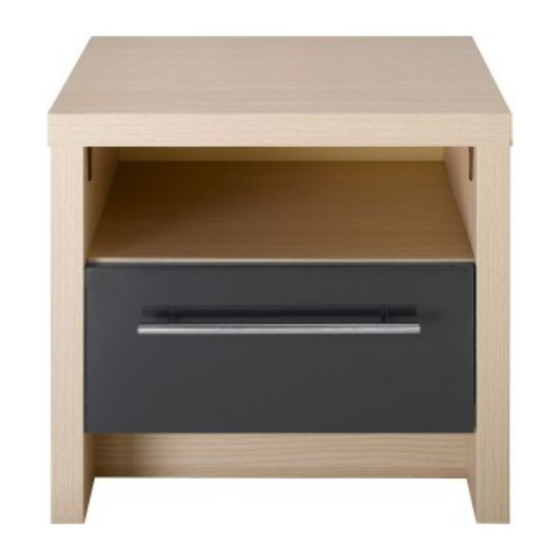

Camden - Bedside
Assembly Instructions -
Dimensions
Width - 49cm
Depth - 39cm
Height - 43cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
305/0679
305/0662
183/6314
MADE IN
BRITAIN
Issue 2 - 12/12/13
Advertisement
Related Manuals for Argos Camden 305/0679
Summary of Contents for Argos Camden 305/0679
- Page 1 Camden - Bedside Assembly Instructions - 305/0679 Please keep for future reference 305/0662 183/6314 Dimensions Width - 49cm Depth - 39cm MADE IN Height - 43cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 12/12/13...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 11kgs. Please lift space to layout the parts before recommend the with care.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D1986A) (D1987A) (D1985A) (396 x 389mm) (396 x 389mm) (489 x 391mm) Horizontal...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the drawer front Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Fit the wedgefixes Turn the drawer assembly over and fit the 4 wedgefixes Slide 2 wedgefixes into the small groove located on the back of the drawer front 2 wedgefixes into the small groove in the drawer back Once in place, tighten up the screws in the...
- Page 8 Assembly Instructions Step 9 screw screw screw Prepare the left side Fit the runner the left side The 1st screw uses the 2nd hole in from the Finished front of the runner front edge The 2nd and 3rd screw use the holes that line up with the other panel holes.
- Page 9 Assembly Instructions Step 10 Prepare the right side Fit the runner the right side The 1st screw uses Finished the 2nd hole in from the front edge front of the runner The 2nd and 3rd screw screw screw screw use the holes that line up with the other panel holes.
- Page 10 Assembly Instructions Step 11 Prepare the top Screw 4 small metal dowels into the holes on the top Note: Tighten metal dowels up fully against the panels. Front edge Step 12 Fit the top to the right side Attach the top to the right side Note: You will need to...
- Page 11 Assembly Instructions Step 13 Prepare the horizontal Insert 4 large locking nuts into the horizontal Note: The arrow on the locking nuts must point Finished towards the hole in the front edge edge of the panel. Step 14 Fit the horizontal Push the horizontal onto the right side Use a screwdriver to...
- Page 12 Assembly Instructions Step 15 Prepare the 2 plinths Tap 2 wooden dowels into each of the 2 plinths Note: Wooden dowels must not stick out from the edge by more than 10mm or they may 10mm damage other panels. Insert 2 large locking nuts into each plinth.
- Page 13 Assembly Instructions Step 17 Fit the left side 2 people are needed here Push the left side onto the assembly. Note: You will need to slide the 2 small metal dowels fitted to the into the top of the 2 hollow core locking nuts Insert a screwdriver into the 2 hollow core locking...
- Page 14 Side panel Drawer Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 16 ALR2836...
